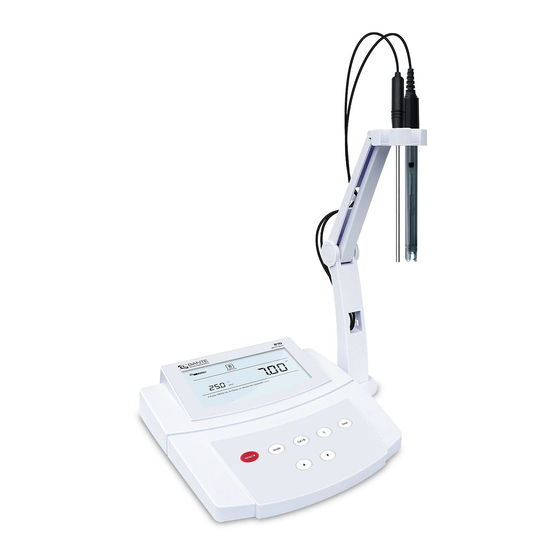

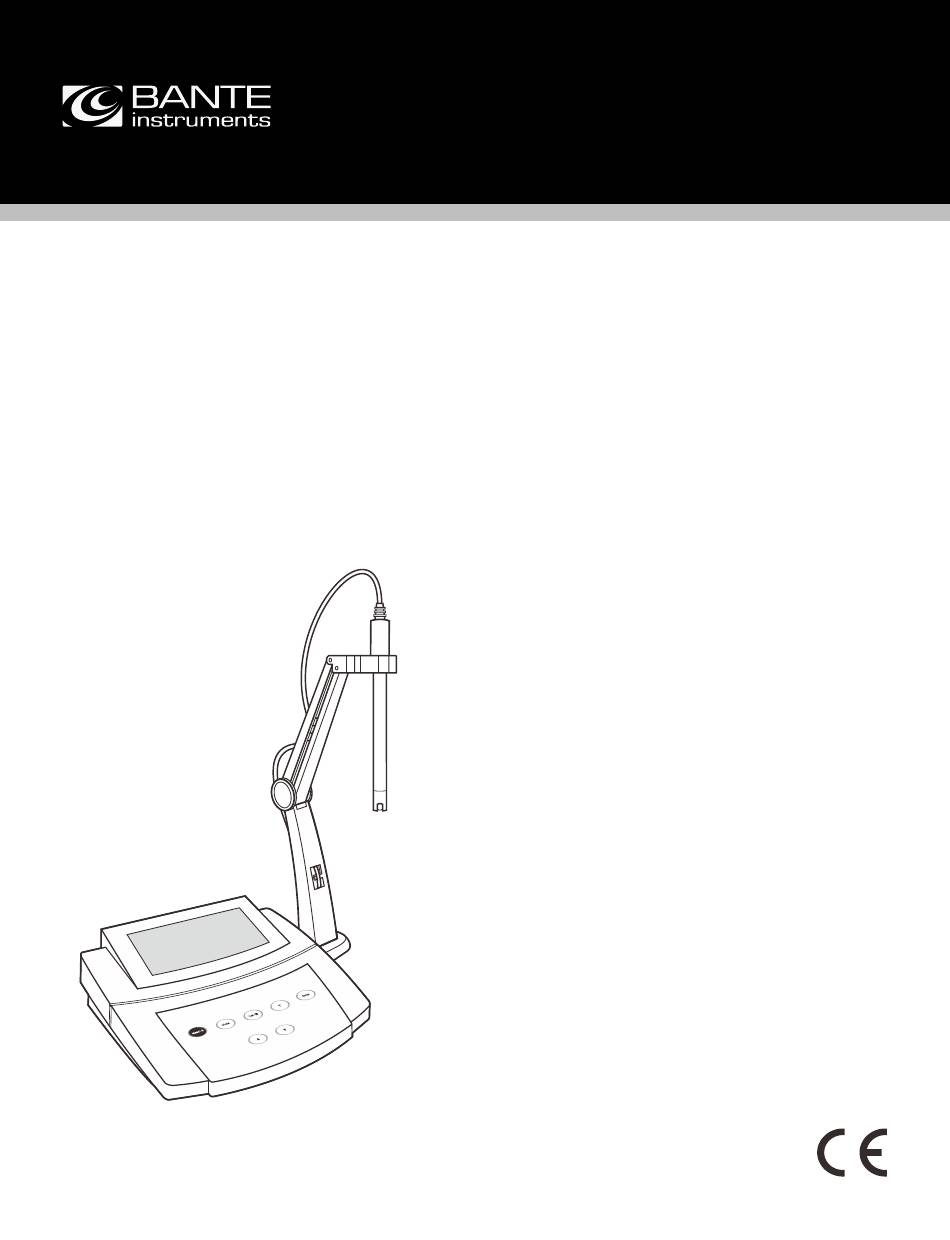

- Page 1 Bante 210 Benchtop pH Meter USER MANUAL Bante Instruments Inc.
-
Page 2: Meter Overview
Overview Connectors Introduction Thank you for selecting the 210 benchtop pH meter. This user manual provides a step-by-step guide to help you operate the meter, please carefully read the following instructions before use. Any use outside of these instructions may invalidate your warranty and cause permanent damage to the meter. -
Page 3: Installing The Electrode Holder
Overview Keypad Remove the plastic cover from the right side of the electrode Function arm. • Switch the meter on or off • Lock or unlock the measurement • Exit the calibration, settings and return to the measurement mode Toggle between the pH and mV measurement modes Use the screwdriver to tighten the screw moderately. -
Page 4: Prior To Use
Overview Preparation of pH Buffer Solutions Connecting the Temperature Probe 2.1 Place the temperature probe into the circular hole located at the The meter is packaged with pH 4.01, 7.00, 10.01 buffer reagents center of the electrode arm. required for calibration. Half fill a 250 ml volumetric flask with distilled water and add the pH 7.00 buffer reagent. -
Page 5: Meter Setup
Setup Meter Setup The 210 meter contains an integrated setup menu for customizing the displayed option to meet measurement requirements. The following table describes the functions of each menu item. Menu Item Option and Description pH Buffer Group Set the pH buffer group for calibration and auto- recognition. - Page 6 1.4 Press the Enter key, the Calibration icon begins flashing. pH Calibration The 210 meter allows up to 3 points pH calibration. We recommend that you perform at least 2 points calibration for high accuracy measurement. The meter will automatically recognize and calibrate to following standard buffer values.
-
Page 7: Temperature Calibration
Calibration Temperature Calibration The 210 meter is supplied with a temperature probe for measurement Slope and temperature compensation. If the measured temperature reading differs from that of an accurate thermometer, the probe needs to be calibrated. Connect the temperature probe to the meter and place into a solution with a known accurate temperature. -
Page 8: Electrode Maintenance
Measurement Measurements Electrode Maintenance pH Measurement Cleaning the pH Electrode Since pH electrode is susceptible to contamination, thoroughly clean 1.1 Rinse the pH electrode with distilled water. Place the electrode as necessary after each use. (and temperature probe) into the sample solution and stir gently. •... -
Page 9: Troubleshooting
9V/400mA DC power adapter TP-10K 3.5 mm jack plug, 1 m (3.3 ft) cable Auto-Off 3 hours after last key pressed 210 (L) × 205 (W) × 75 (H) mm, Dimensions Solutions (8.2 × 8.0 × 2.9 in.) Weight 1.5 kg (3.3 lb) -
Page 10: Warranty
Tel: (+1) 346-762-7358 E-mail: banteinstruments@yahoo.com Factory: F3, Building 2, No.2185, Laifang Rd., Shanghai 201615, China Tel: (+86) 21-6404-1598 E-mail: banteinstrument@hotmail.com The information in this document is subject to change without notice. www.bante-china.com Copyright © Bante Instruments Inc, 2022. All rights reserved.
