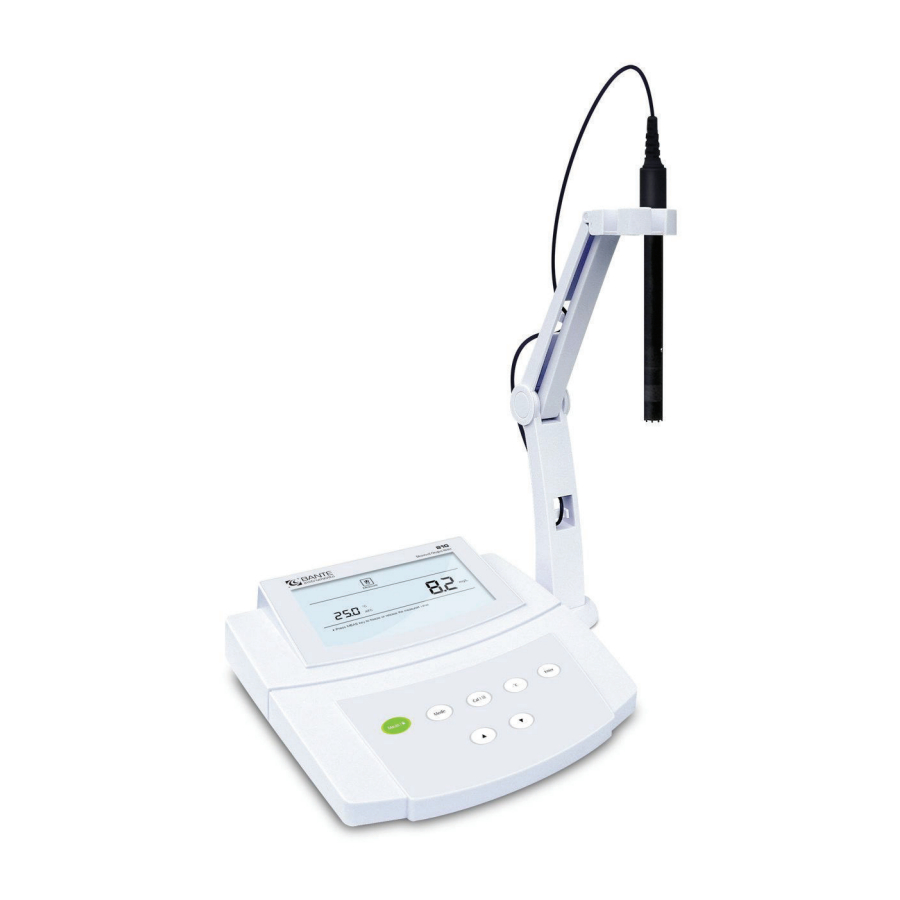

- Page 1 Bante810 Benchtop Dissolved Oxygen Meter Instruction Manual BANTE INSTRUMENTS CO., LTD...
- Page 2 Bante810 Benchtop Dissolved Oxygen Meter Introduction Thank you for selecting the Bante810 benchtop dissolved oxygen meter. This manual provides a step-by-step guide to help you operate the meter, please carefully read the following instructions before use. Unpacking Before unpacking, ensure that the current work environment meets following conditions.
- Page 3 Bante810 Benchtop Dissolved Oxygen Meter Display The Bante810 dissolved oxygen meter is equipped with an easy-read LCD display that used to show measured values and mode icons. The following table describes the function of each icon. INDEX: Measurement mode icon: Hold icon: Indicates the meter is in the measurement mode.
- Page 4 Bante810 Benchtop Dissolved Oxygen Meter Connectors INDEX: CONNECTOR DESCRIPTION Used for connecting the dissolved oxygen probe Used for connecting the power adapter Filling the Electrolyte Solution Take out the dissolved oxygen probe and electrolyte solution from the packaging. Unscrew the membrane cap.
-
Page 5: Installing The Electrode Holder
Bante810 Benchtop Dissolved Oxygen Meter Installing the Electrode Holder Take out the electrode arm from the packaging. The base plate of the electrode holder has a circular hole, the electrode arm has a connecting rod. Insert the connecting rod into the circular hole and swivel the electrode arm 90 . -
Page 6: Connecting The Power Adapter
Bante810 Benchtop Dissolved Oxygen Meter Insert the 6-pin connector into the connector socket labeled DO. After the connection is completed, DO NOT pull on the cable. Always make sure that the connector is clean and dry. Connecting the Power Adapter Before plugging in the power adapter, ensure that its voltage matches the local main voltage. -
Page 7: Setup Menu
Bante810 Benchtop Dissolved Oxygen Meter Setup Menu The Bante810 dissolved oxygen meter contains an integrated setup menu that is used to customize the displayed option to meet measurement requirements. The following table describes the functions of the menu items. MENU... -
Page 8: Setting The Barometric Pressure
Bante810 Benchtop Dissolved Oxygen Meter Setting the Salinity Coefficient Salt dissolved in water will influences oxygen content of water. If your sample contains high levels of salinity, ensure that setting an applicable salinity coefficient prior to measurement. In the measurement mode, press and hold the key for 3 seconds to enter the setup menu, the display shows (salinity coefficient) option. - Page 9 DO Calibration in % Saturation Mode The Bante810 dissolved oxygen meter can perform 1 or 2 points calibration. For single point calibration, we recommend that you perform 100% saturation calibration in the air-saturated water. If the 2 points calibration is selected, the zero oxygen solution needs to be used.
-
Page 10: Temperature Calibration
Bante810 Benchtop Dissolved Oxygen Meter Immerse the dissolved oxygen probe into the zero oxygen solution, stir the probe gently. Press the key to confirm. Wait for the reading to stabilize (this can often take more than 10 minutes), the display automatically shows END. -
Page 11: Dissolved Oxygen Measurement
Dissolved Oxygen Measurement The Bante810 dissolved oxygen meter is suitable for measuring the water, wastewater, brine and other liquids. If the sample is belong to the seawater or other water containing large amounts of salt, please setting the salinity coefficient before measurement. Some gas and steam such as chloride, sulfur dioxide, sulfureted hydrogen, ammonium, carbon dioxide and iodin can permeate the membrane via diffusion. -
Page 12: Troubleshooting
Bante810 Benchtop Dissolved Oxygen Meter Troubleshooting LCD DISPLAY CAUSE CORRECTIVE ACTION DO probe does not connect to meter Check the connector of probe. Measured value is out of range Check the DO membrane whether clogged, dirty or broken. Electrolyte solution is depleted Refilling electrolyte solution. - Page 13 Hazardous Substance Statement Bante Instruments is committed to the reduction and eventual elimination of all hazardous substances in both the manufacturing process and finished products we supply. We have an active manufacturing and procurement program to minimize and eliminate the use of harmful heavy metals such as cadmium, lead, mercury and the like.
