Vitek VTC-EL52H Manual

Vitek VTC-EL52H Manual

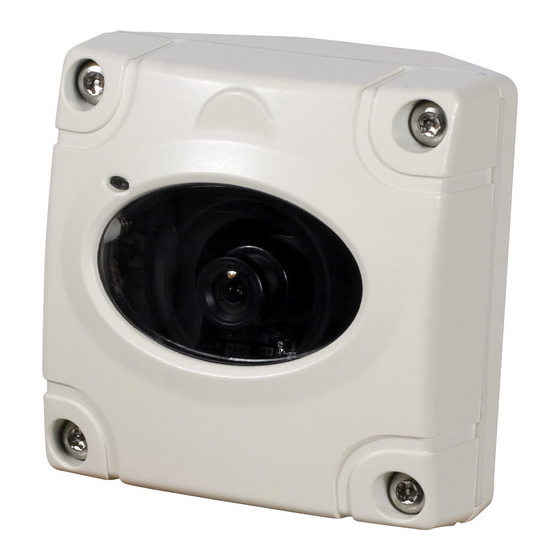

Vandal/weather resistant corner mount camera w/550 tv lines

Advertisement

Quick Links

All manuals and user guides at all-guides.com
1/3" Color CCD Image Sensor w/550 TV Lines
Camera Mounted on a 3-Axis Adjustable Bracket to
Achieve the Perfect Viewing Angle
2.97mm Fixed Iris Lens Included (Optional lenses
available)
Minimum Illumination of 0.3 Lux
Aluminum and Polycarbonate Vandal Resistant
Enclosure with IP-66 Weather Resistance
VTC-EL52H
Vandal/Weather Resistant
Corner Mount Camera w/550
TV Lines

Advertisement

loading
Need help?

Need help?

Do you have a question about the VTC-EL52H and is the answer not in the manual?

Questions and answers

Summary of Contents for Vitek VTC-EL52H

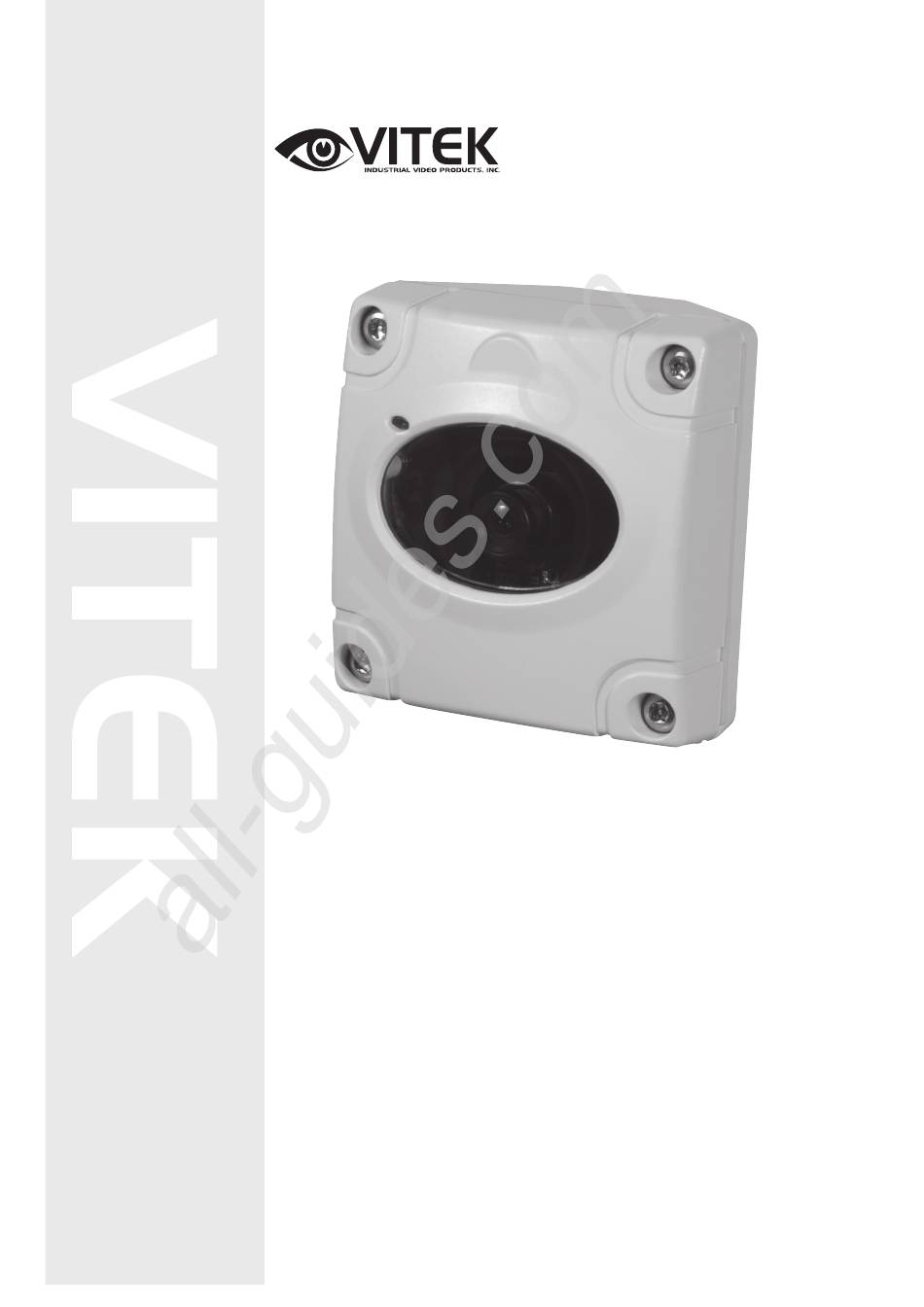

  • Page 1 All manuals and user guides at all-guides.com VTC-EL52H Vandal/Weather Resistant Corner Mount Camera w/550 TV Lines • 1/3” Color CCD Image Sensor w/550 TV Lines • Camera Mounted on a 3-Axis Adjustable Bracket to Achieve the Perfect Viewing Angle •...
  • Page 2 All manuals and user guides at all-guides.com Camera adjustment 1) Remove the cover and adjust the camera to the desired position with the adjustment screws 2) Adjust desired focus and scene by tilting and rotating the camera bracket 3) Replace the cover over the base and tighten the 4 safety screws with the included wrench.
  • Page 3 All manuals and user guides at all-guides.com sPeCiFiCations SPECIFICATIONS 1/3” interline transfer CCD Image Device Effective Pixels 768(H) x 494(V) Resolution More than 550 TV Lines Scanning System 2:1 Interlace Min. Illumination 0.3Lux 40 IRE (F1.2) Frequency Horizontal:15.734 KHz Vertical: 59.94 Hz 50dB (AGC Off) S/N Ratio Lens...
  • Page 4 The product must not have been tampered with in any way then the guarantee will be considered null and void. This guarantee does not affect your statutory rights. Contact an Authorized VITEK reseller for all servicing needs. 28492 Constellation Road ValenCia, Ca 91355 WWW.ViteKCCtV.CoM...
