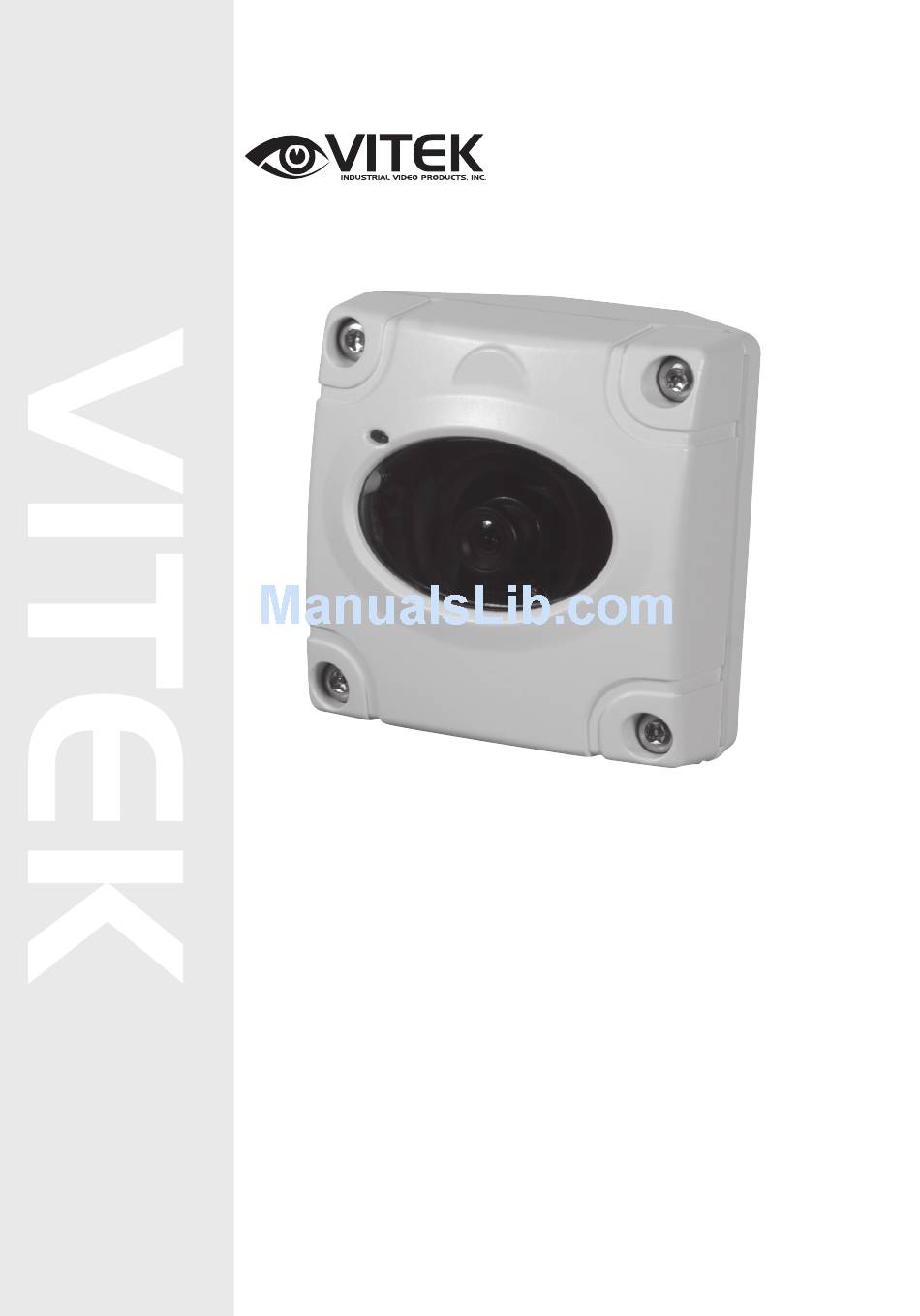

Vitek VTC-EL52H User Manual

Vandal/weather resistant corner mount camera w/550 tv lines

•

1/3" Color CCD Image Sensor w/550 TV Lines

•

Camera Mounted on a 3-Axis Adjustable Bracket to

Achieve the Perfect Viewing Angle

•

2.97mm Fixed Iris Lens Included (Optional lenses

available)

•

Minimum Illumination of 0.3 Lux

•

Aluminum and Polycarbonate Vandal Resistant

Enclosure with IP-66 Weather Resistance

VTC-EL52H

Vandal/Weather Resistant

Corner Mount Camera w/550

TV Lines

Table of Contents

Need help?

Do you have a question about the VTC-EL52H and is the answer not in the manual?

Page 1 Camera Mounted on a 3-Axis Adjustable Bracket to Achieve the Perfect Viewing Angle • 2.97mm Fixed Iris Lens Included (Optional lenses available) • Minimum Illumination of 0.3 Lux • Aluminum and Polycarbonate Vandal Resistant Enclosure with IP-66 Weather Resistance VTC-EL52H TV Lines...
Page 2: Camera Adjustment
Camera adjustment 1) Remove the cover and adjust the camera to the desired position with the adjustment screws 2) Adjust desired focus and scene by tilting and rotating the camera bracket 3) Replace the cover over the base and tighten the 4 safety screws with the included wrench.
Page 3: Specifications
sPeCiFiCations SPECIFICATIONS Image Device 1/3” interline transfer CCD 768(H) x 494(V) Effective Pixels Resolution More than 550 TV Lines Scanning System 2:1 Interlace Min. Illumination 0.3Lux 40 IRE (F1.2) Frequency Horizontal:15.734 KHz Vertical: 59.94 Hz S/N Ratio 50dB (AGC Off) Lens 2.97mm Fixed Iris (Optional lenses available) Video Output...
Page 4 The product must not have been tampered with in any way then the guarantee will be considered null and void. This guarantee does not affect your statutory rights. Contact an Authorized VITEK reseller for all servicing needs. 28492 Constellation Road ValenCia, Ca 91355 WWW.ViteKCCtV.CoM...
