- Page 1 Fixturlaser Laser Kit Quick tips...
-
Page 3: Rough Alignment
Fixturlaser Laser Kit Rough Alignment • Vertical: Place scale or straightedge on highest hub and raise or lower the movable shaft to within 0,5 mm of the stationary hub. • Horizontal: Place scale or straightedge on hub nearest to you and adjust the movable shaft to within 0,5 mm of the stationary hub. - Page 4 Fixturlaser Laser Kit Bolt Tightening Sequence Make a Final Soft Foot Correction Loosen one bolt at a time and check for soft foot with a 0,05 mm shim or feeler gauge. Correct any foot with 0,05 mm or more of soft foot, then tighten the bolt...
- Page 5 Tighten the nut Press the power button Start the Laser Kit App Click on the Fixturlaser Laser kit app on your device that starts the application. The app will search for the sensor and connect to them via Bluetooth. This will take between 5 to 15 seconds.
- Page 6 Fixturlaser Laser Kit Aim the Lasers Loosen the adjustment knob of the sensor and slide the sensors up or down until the line laser beams hit the middle of the opposite sensor, fine tune the line laser beam with the adjustment wheel on the opposite side of the sensor.
- Page 7 Fixturlaser Laser Kit Enter Dimensions Press the yellow tape measure icon to open the keypad. Measure the indicated dimension to the nearest 1 mm for coupling dimensions or 2 mm for foot dimensions and enter using the keypad. Continue and enter all dimensions.
- Page 8 Fixturlaser Laser Kit Rotate the sensors to the 12:00 position.Press the measurement icon again to take the second measurement. 12:00 position Rotate the sensors to 3:00, measure. The results will be displayed on screen.
- Page 9 Fixturlaser Laser Kit Evaluating the Results Vertical results are displayed at the top of the screen, horizontal results at the bottom. Green coupling icons indicate values which are within tolerance. Angular tolerance 0,08 mm/ 100 mm offset tol. 0,1 mm Orange values are within 2x tolerance.
- Page 10 Fixturlaser Laser Kit Next Correct the Horizontal Misalignment First press the ‘live reading’ icon in the bottom right corner of the screen. To ensure the live readings are for the horizontal direction make sure the sensors are at 3:00. “...
- Page 11 Fixturlaser Laser Kit Re-Measure Press the re-measure icon. Re-measure to verify the results are within toler- ance. If they are not, repeat the Verti-Zontal Correction Process. Results/Save Results Images are saved in the folder of photos on your device automatically, when the auto save box is ticked in the settings menu.

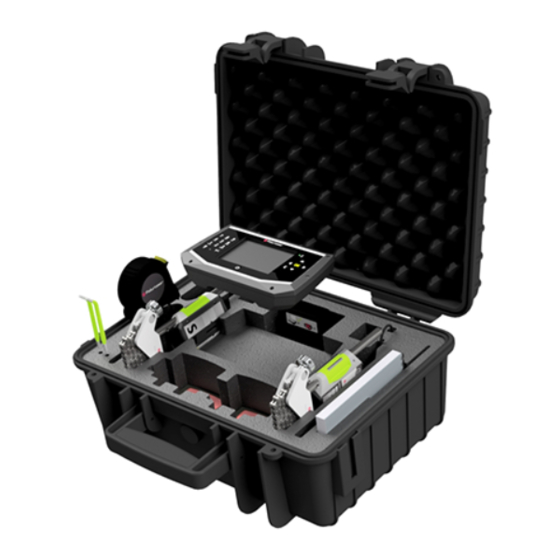

- Page 12 Fixturlaser Laser Kit Fixturlaser Laser Kit Complete system: Weight including all standard parts: 2,75 kg (6,06 lbs) Displayed resolution: 0,01 mm (0,1 mil with “inch” settings.) Case: Dimension: 357 mm x 305 mm x 96 mm (14,1 in x 12 in x 3,8 in)
-
Page 13: Declaration Of Conformity
1-0976 FIXTURLASER M5 1-0977 FIXTURLASER S5 Manufacturer’s name, address, telephone & fax no ACOEM AB - Box 7 - SE-431 21 Mölndal - Sweden Tel: +46 31 7062800 - Fax: +46 31 7062850 The following standards and/or technical specifications, which... - Page 14 Fixturlaser Laser Kit The Fixturlaser Laser Kit was designed to be used with the Fixturlaser Laser Kit App. View our following resources for more information. www.alignmentknowledge.com www.youtube.com/user/FIXTURLASER Welcome to our world Since the very beginning in 1984, Fixturlaser, (Brand of ACOEM) has helped industries throughout the world to achieve more profitable and sustainable production.
- Page 16 ACOEM AB Östergårdsgatan 9 SE-431 53 Mölndal SWEDEN Phone +4631 706 28 00 Fax +4631 706 28 50...
