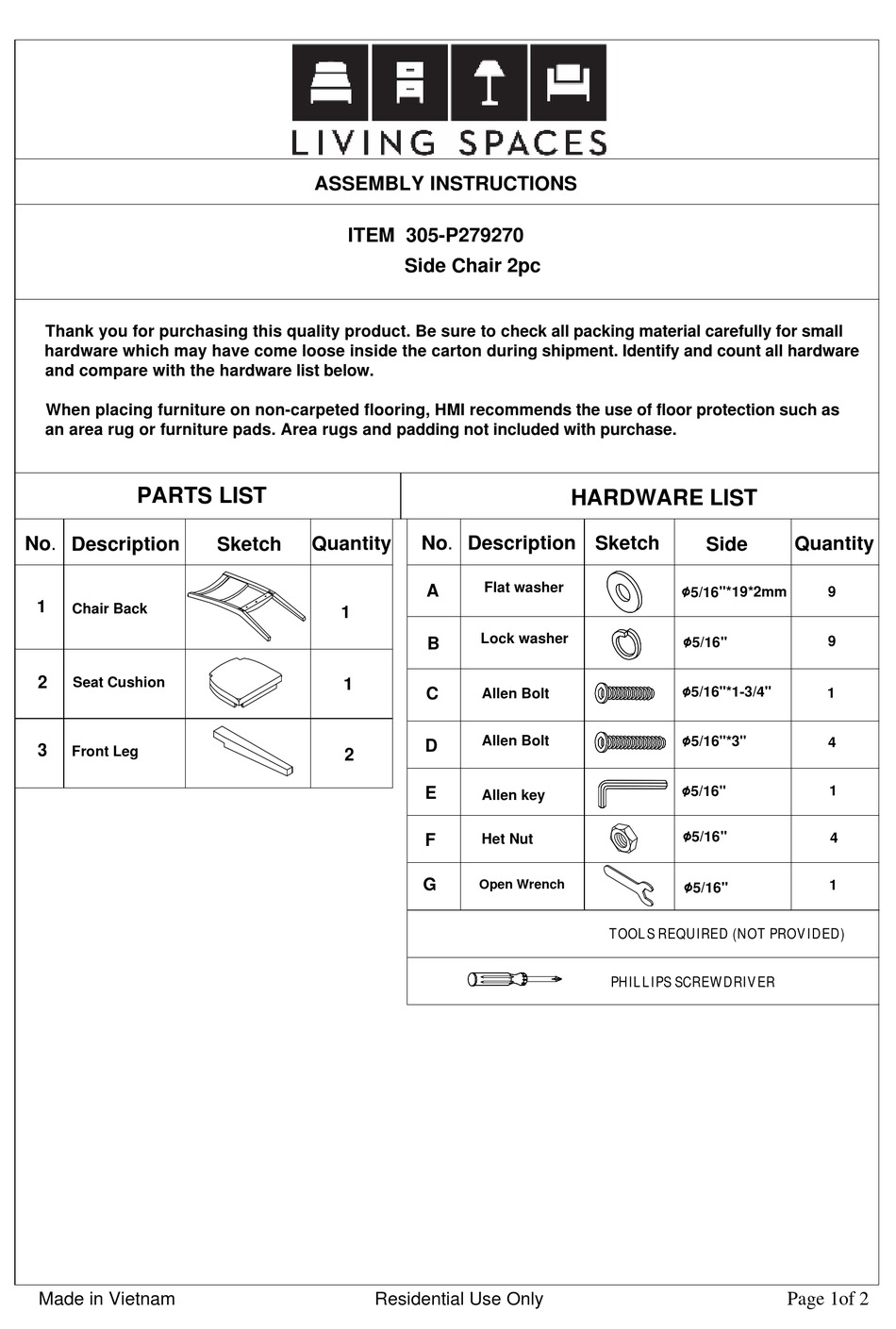

Thank you for purchasing this quality product. Be sure to check all packing material carefully for small
hardware which may have come loose inside the carton during shipment. Identify and count all hardware
and compare with the hardware list below.
When placing furniture on non-carpeted flooring, HMI recommends the use of floor protection such as
an area rug or furniture pads. Area rugs and padding not included with purchase.
PARTS LIST
No . Description
1
Chair Back
2
Seat Cushion
3
Front Leg
Made in Vietnam
ASSEMBLY INSTRUCTIONS
ITEM 305-P279270
Sketch
Quantity
1
1
2
Residential Use Only
Side Chair 2pc
HARDWARE LIST
No . Description Sketch
Flat washer
A
Lock washer
B
C
Allen Bolt
Allen Bolt
D
E
Allen key
F
Het Nut
G
Open Wrench
Side
∅
5/16"*19*2mm
∅
5/16"
∅
5/16"*1-3/4"
∅
5/16"*3"
∅
5/16"
∅
5/16"
∅
5/16"
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
Quantity
9
9
1
4
1
4
1
Page 1of 2
