Living Spaces Cora B8100-Q-HB-RAIL Assembly Instructions

ASSEMBLY
INSTRUCTIONS
(BOX 1)
BOX OF HEADBOARD
ITEM DRAWING DESCRIPTION
HEADBOARD PANEL
A
LEFT
B
HEADBOARD LEG
RIGHT
C
HEADBOARD LEG
HB BOTTOM RAIL
D
(BOX 2)
BOX OF FOOTBOARD
ITEM DRAWING DESCRIPTION
FOOTBOARD
E
F
WOODEN SLAT
WOODEN SUPPORT
G
(BOX 3)
BOX OF SIDE RAIL
ITEM DRAWING DESCRIPTION
H SIDE RAIL
B
THE HARDWARE IS LOCATED IN THE PACKING ITEMS
NOTE : MUST TIGHTEN SCREWS PERIODICALLY. WITH USE SCREW MAY BECOME LOOSE.
CHECK TIGHNESS OF ALL SCREW EVERY 6-8 WEEKS.
CLEANING INSTRUCTION
After assembly, clean & polish the completed parts if necessary with soft cloth and industrial recognized furniture polish
ITEM NO : B8100 / B8130 - Q - HB / FB / KQ - RAIL
(BOX 1) HEADBOARD
HARDWARE LIST
ITEM DRAWING
QTY
1
1
2
1
1
3
1
4
QTY
5
1
4
6
4
7
8
QTY
2
A
D
C
STEP 1
6
QUEEN HEADBOARD / FOOTBOARD / SIDE RAIL
DESCRIPTION QTY
ALLEN WRENCH
1
(M4(BALL SHAPE)110mm)
ALLEN WRENCH
1
(M5)
CONNECTION BOLT
(M8 x 20mm)
8
W/WASHER &
SPRING WASHER
CONNECTION BOLT
(M6 x 40mm)
8
W/WASHER &
SPRING WASHER
CONNECTION BOLT
(M6 x 50mm)
2
W/WASHER &
SPRING WASHER
WOOD DOWEL
4
(M8 x 30mm)
FLAT HEAD SCREW
8
(#8 x 1 1/8")
Assembly Tool Not Included 1
4
1
C
D
5
1

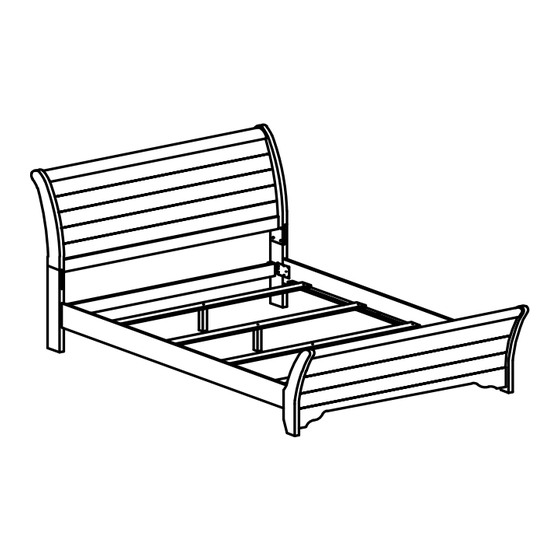

COMPLETED QUEEN BED
ASSEMBLY
A
STEP 2
C
PAGE 1 OF 2
