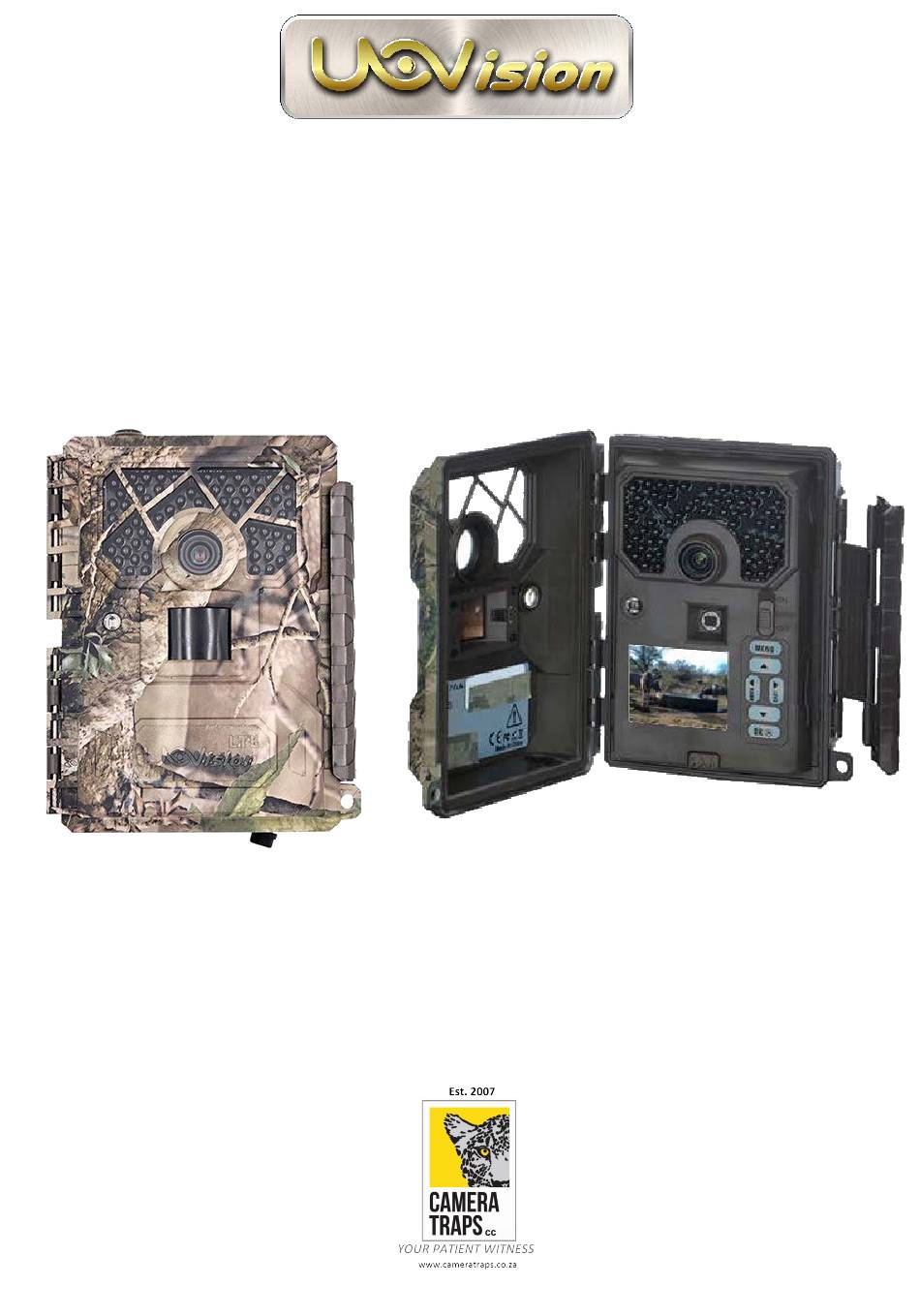

- Page 1 User Manual GLORY UVL4 (BLACK FLASH / NO GLOW) + built-in viewer...
-
Page 2: Table Of Contents
Contentss 1 Camera Overview ......................1 2 Power..........................2 3 Installing your SD card ..................... 2 3.1 Formatting the SD card..................3 4 Camera Mode Settings......................3 4.1 CAM Tab ........................3 4.2 PIR Tab........................4 4.3 SYS Tab........................5 5 View or Delete photos on the color display ..............7 6 Trouble Shooting........................7 7 Mounting Tips........................7 Appendix Ⅰ: Technical Specifications . -
Page 3: Camera Overview
21. Camera Overview Front View Black Flash (no glow) LED's Lens Power switch MENU Keyboard Bottom (10) SD card slot View Battery tray (AA size x 12) Light sensor Colour 2.0" programming / playback screen Battery tray eject button (11) Microphone for sound recording (video clips) (10) USB port... -
Page 4: Power
22. Power To supply power for the camera, 4, 8 or 12 size AA batteries are needed. Notice ·Do not mix different types of batteries ·Please do not mix the old batteries with the new batteries The following batteries can be used: ·High-density and high-performance AA size alkaline or 1.5v Lithium batteries (Recommended) ·Rechargeable 6V external SLA battery (Sealed Lead Acid) or solar panel ·Rechargeable NiMH AA size batteries (at least 2500mAh) -
Page 5: Formatting The Sd Card
The GLORY ULV4 camera has no internal memory storage space to store pictures / video clips. You need to insert a SD memory card to let the camera work correctly. Make sure the power switch is OFF before you insert the SD card into camera. The camera will not turn on without a SD card inside. -
Page 6: Pir Tab
4.2 PIR TAB Page 4... -
Page 7: Sys Tab
Trigger Mode: Choose if you want PIR triggered footage, Timelapse triggered footage or Both. PIR Sensitivity: Choose between Low / Auto or High PIR sensitivity PIR Interval: This is the time delay of the PIR sensor to set after each trigger & transmission (for security applications its best to have a short time setting). - Page 8 Set Clock: Enter to set the date and time. Password：You can set a Password to prevent anyone from accessing the camera menu options in the field. Make sure you write down your password or save it to your mobile phone so you can still access your camera if you ever forget your password.
-
Page 9: View Or Delete Photos On The Color Display
5 View or Delete photos on the color display You can view your photos on the color display when in the field. If you want to do this, make sure the Power switch is setted to SETUP. Press the Play button. You can use the ◄► buttons to toggle through the photos. If you see photos you want to delete, press the DEL button. - Page 10 Don’t face directly towards light sources as this may result in 'white-out' / over-exposed footage. Recording short video clips is a good way of minimising the effect of night-time 'motion-blur' images if the subject is moving briskly past the camera. It provides a constant light source.
-
Page 11: Appendix Ⅰ: Technical Specifications
Appendix Ⅰ: Technical Specifications Picture Resolution 20MP, 16MP, 12MP, 8MP, 5MP, 3MP Lens F/NO=2.2 FOV(Field of View)=58° Flash Range (Low) 6m-12m, (High) 12m-25m Display Screen 2.0” LCD Memory Card Up to 64GB standard size SD card Video Resolution WVGA,720P,1080P PIR Sensor Multi Zone PIR Sensitivity Adjustable (High/Normal/Low) -
Page 12: Appendix Ⅱ: Parts List
Appendix Ⅱ: PARTS LISTarts List In The Boxart Name Qua#ntity Digital Camera Mounting Strap User Manual Quick Start Declaration of Conformity to Directive 2014/53/EU CE Caution： Hereby, the manufacturer declares that this camera is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. - Page 13 CAMERA TRAPS cc info@cameratraps.co.za www.cameratraps.co.za +27 (0)83 560 0555 | +27 (0)82 422 0356...
- Page 14 Customer Name: Contact Tel: Date of Purchase: Series No: Fault Description: Retailer: The camera manufacturer provides 24 months of warranty service for this product against manufacturing defects or malfunctions. If your camera fails to function under normal use within 2 years, the camera manufacturer will repair or replace the camera at no charge.
