- Page 1 UOVISION UV565 12MP HD Digital Scouting Camera User’s Manual...
-
Page 2: Quick Start
www.uovisioneurope.com Quick Start Load fully charged batteries, or connect 6 V external power supply. Batteries can inside the camera when connected to external power source 2. Insert the SD card (32GB or smaller) 3. Slide the power switch to the “SETUP” position to set up the camera 4. - Page 3 www.uovisioneurope.com Key Notes a. “MENU”: enter the program menu in preview mode; b. “▲”“▼”“◄”“►”: for parameter settings as described in the user’s manual. “▲” is the shortcut to choose “Video”, while “▼” for the “Photo”. c. “OK”: save parameter settings and play videos. d.
-
Page 4: General Description

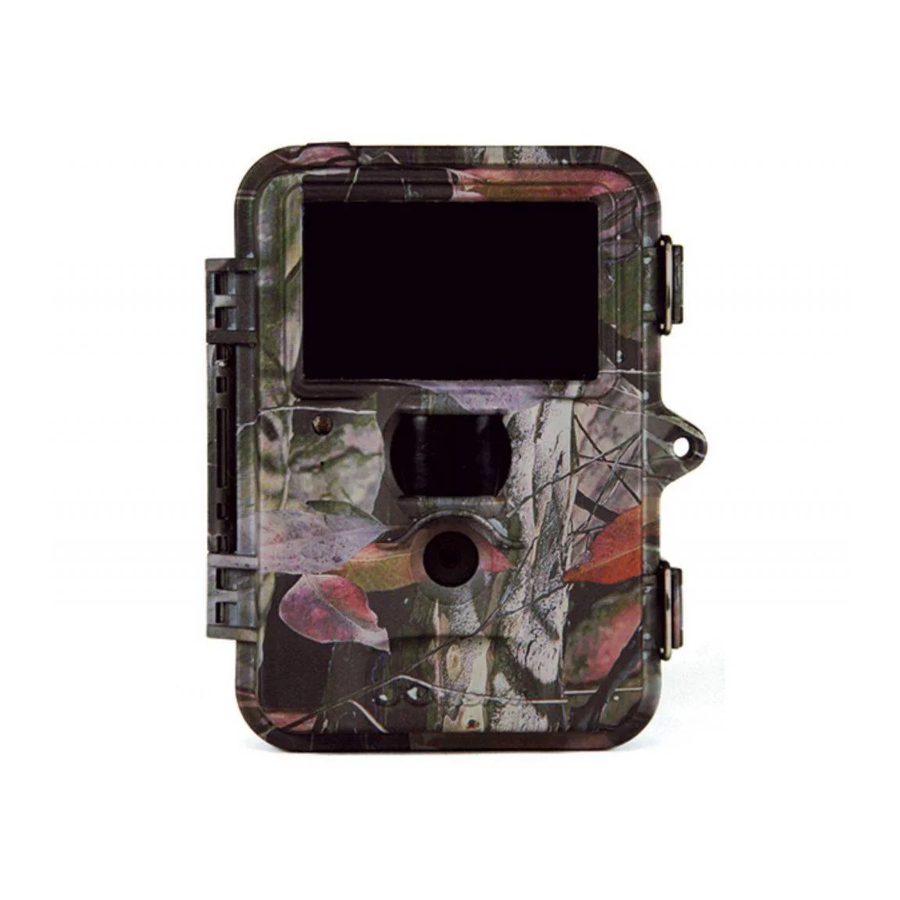

3 Quick Introductions Instruction 1.1 General Description This camera, is a digital surveillance camera, triggered by any movement of humans or animals monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures up to 12MP or records video clips (HD) according to default settings or preset customer settings. - Page 5 3 Quick Introductions Display Screen Lock Hole Operation Panel Battery Depot Power Switch Figure 2: Operation Interface DC In DC Hole and Stopper SD-card Slot Bottom Screw Figure 3: Bottom view 1.2.1 Key Notes a. “MENU”: enter the program menu in preview mode; b.
-
Page 6: Power Supply
3 Quick Introductions 2. Quick Start Guide Power Supply To supply power for the camera, 12pcs of AA alkaline batteries are needed. Confirm that the power switch is in the OFF position; load the fully charged batteries into the pack according the polarities signs shown below. -
Page 7: Custom Settings
3 Quick Introductions 1. Avoid temperature and motion disturbances in front of the camera such as a big leaf, curtain, air-conditioner, air outlet of the chimney and other heat sources to prevent from false triggering. 2. The height from the ground for placing the camera should vary with the object size appropriately. -
Page 8: Advanced Operations
4 Advanced Operations 3 Advanced Operations Settings Menu and Default Settings To view the camera settings menu, switch the camera to SETUP mode and press MENU, the main menu and the default settings are under below charts: Main menu Setting Items Description Choose Photo,Video or Photo+Video Camera Mode... -
Page 9: Viewing Photo Or Video
4 Advanced Operations full and continues to record new pictures/videos , thus, the SD-card is recyclable, customer needs not to change SD card frequently. Restore all customer settings to default Default Set values. Format Format the SD-card. Press LEFT or RIGHT and UP or DOWN to select the desired options，And then press OK to save. -
Page 10: Appendixⅰ : Technical Specifications
AppendixⅠ: Technical Specifications AppendixⅠ : Technical Specifications Picture Resolution 12MP, 8MP, 5MP, 3MP Lens F/NO=3.0 FOV(Field of View)=52° IR-Flash 50% = 6m, 100% = 12m Display Screen 2.0” LCD Memory Card From 8 MB to 32GB VGA ,QVGA Video Resolution HD: 1080P, 720P PIR Sensor Multi Zone... -
Page 11: Appendixⅱ : Parts List
Appendix Ⅱ: Parts List AppendixⅡ : Parts List Part Name Quantity Digital Camera USB Cable Not Available Belt User Manual The camera manufacturer provides 12 months of warranty service for this product against manufacturing defects or malfunctions. If your camera fails to function under normal use within 1 year, the camera manufacturer will repair or replace the camera at no charge.
