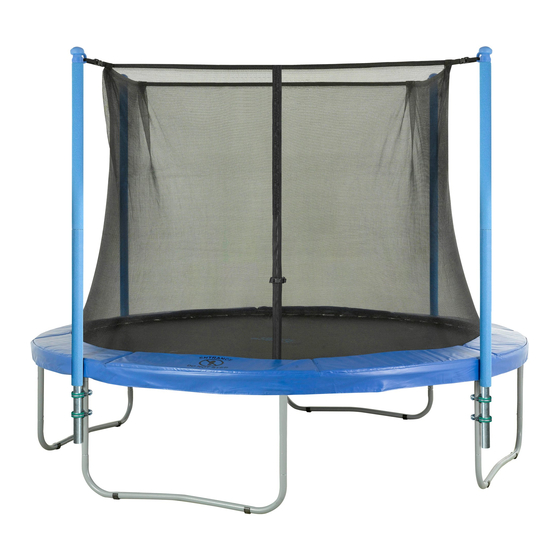

Upper Bounce
Enclosure Set
and Enclosure Net
User Manual
Assembly, Installation, Care, Maintenance and Use Instructions.
This Instructions manual is for Upper Bounce Enclosure Sets and
Enclosure Nets which is designed to fit most model Trampolines.
For Models begins with UBES: for Inside type Enclosure Sets
For Models begins with UBESOS: for Outside Type Enclosure Sets
For Models begins with UBNET: for Enclosure Nets Only
®
Upper Bounce
Inc. 2 Mill St. Cornwall NY 12518, 1-888-965-3331, www.upperbounce.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Upper Bounce UBES104
Summary of Contents for Upper Bounce UBES104
- Page 1 Enclosure Net User Manual Assembly, Installation, Care, Maintenance and Use Instructions. This Instructions manual is for Upper Bounce Enclosure Sets and Enclosure Nets which is designed to fit most model Trampolines. For Models begins with UBES: for Inside type Enclosure Sets...
- Page 2 TRAMPOLINE PART Simply follow the assembly and safety instructions in this manual and you will soon be starting your UPPER BOUNCE exercise program and fun and be on your way to a happier, healthier lifestyle. ® Should you have any questions, please call our Customer Service Department...
- Page 3 When you select Upper Bounce®, you are choosing high quality trampolines, or replacement parts and accessories. At Upper Bounce® we think about "fun and safety" for the whole family! Before you are ready to start installing your new Enclosure Set, please verify that the enclosure set you are going to install matches the trampoline size you have.
- Page 4 STEP POLE CONNECTOR Check the diameter of the leg to make sure the pole connecting tool fits your Trampoline, If the Pole diameter is 1 inch you need to look for a 1 inch connecter if 1 1/2 its 1 ½ you need a 1 ½ connecter. 1 1/2 Note: You can also connect the poles to the leg with U shape connecter Model UBHWD-UB-12...
- Page 5 ENCLOSURE SET PARTS LIST QUANTITY ITEM PART IMAGE NAME MODELS UBES128, UBES86, UBES126 UBES148, UBES146, UBES156 UBES104 UBES158, UBES106, UBES136 UBES124 UBES138 UBES166, UBESOS7.56 UBES144 UBESOS138, UBESOS126, UBESOS136 UBESOS124 UBESOS148 UBESOS146, UBESOS156 UBESOS158 Upper Pole Lower Pole Clamp Tool Set...
- Page 6 Pole Installation Instructions 2 adults in good physical condition are required for the following assembly. Wear proper shoes and maintain balance to prevent a fall. Warning : Failure to follow all instructions and warnings may result in serious injury. 1. First, place all parts to be used in the process of installation in front of you.
- Page 7 5. The set comes with 2 clamps per pole. 2 inches One being attached 2” below frame, while the other being attached 2” above 2 inches the end of the lower pole. 6. Feed the screw through the screw hole thus tightening the clamp to securely connect it to your trampoline leg with the tool included.
- Page 8 Net Installation Instructions INSIDE TYPE MODELS Enclosure Nets Enclosure Sets UBES86 UBES148 UBNET-8-6-IS UBNET-13-8-IS UBES104 UBES156 UBNET-10-4-IS UBNET-14-4-IS UBES124 UBES158 UBNET-10-6-IS UBNET-14-6-IS UBES144 UBES106 UBNET-12-8-IS UBNET-14-8-IS UBES126 UBES136 UBNET-12-4-IS UBNET-15-6-IS UBES128 UBES138 UBNET-12-6-IS UBNET-15-8-IS UBES146 UBES166 UBNET-13-6-IS UBNET-16-6-IS STEP POLE STRAPS...
- Page 9 Net Installation Instructions OUTSIDE TYPE MODELS Enclosure Sets Enclosure Nets UBNET-7.5-6-OS UBNET-13-8-OS UBESOS7.56 UBESOS138 UBNET-10-8-OS UBNET-14-6-OS UBESOS108 UBESOS146 UBNET-12-4-OS UBNET-14-8-OS UBESOS124 UBESOS148 UBNET-12-6-OS UBNET-15-6-OS UBESOS126 UBESOS156 UBNET-13-6-OS UBNET-15-8-OS UBESOS136 UBESOS158 STEP INSERT THE NET TO THE POLES Start installing the Net to the poles by inserting the beginning of the Sleeve on the Poles Until it reaches 2 ft.
- Page 10 Net Installation Instructions FOR ARCH TYPE MODELS Enclosure Nets UBNET-12-2-AST UBNET-13-2-ASTR UBNET-14-3-AST UBNET-15-3-AST UBNET-12-3-AST UBNET-13-3-AST UBNET-14-4-AST UBNET-15-4-AST UBNET-12-4-AST UBNET-13-4-AST STEP INSERT THE NET TO THE ARCHES Disconnect the top arches, slide top arch part into sleeve. When arch part and poles meet click them back together tightly. STEP BOTTOM STRAPS Connect bottom straps/clips to...
- Page 11 Net Installation Instructions FLEX ON TOP MODELS Enclosure Nets UBNET12FG-4 UBNET-14FG-4 UBNET-15FG-5 UBNET-12FG-6 UBNET-14FG-6 UBNET-15FGB-5 UBNET-15FG-6 STEP Start by running the Fiberglass Rods through the sleeves opening at the upper edge of the safety net until you reach the other side of the sleeve as figure 1. STEP After inserting the top rods through all the sleeves you need to connect all rods together, there is several ways to connect it:...
- Page 12 STEP Raise the net up into position and connect the rods to the poles with the following options: Option 1 - Option 2 - If you have T connectors Insert If your rod is connected in any the T-shaped Pole Caps into the other way, connect the rod to upper poles as shown in picture.
- Page 13 Happy Jumping! Wish the Upper Bounce Team We need your feedback After you are fully satisfied or for any suggestions how we can serve you even better for next time.
