USER
MANUAL

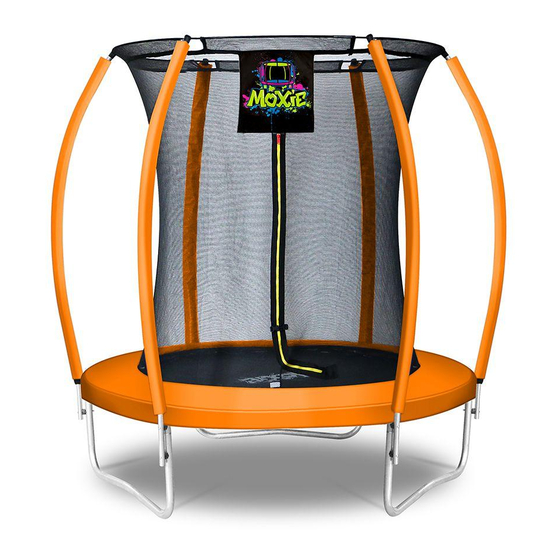

MOXIE
PUMPKIN-SHAPED
™
OUTDOOR TRAMPOLINE SET WITH
PREMIUM TOP-RING FRAME
SAFETY ENCLOSURE
FOR MODELS:
MXSF03 6 BL
MXSF03 12 BL
MXSF03 6 OR
MXSF03 14 DG
MXSF03 8 GA
MXSF03 14 GR
MXSF03 8 GR
MXSF03 15 GA
MXSF03 10 OR
MXSF03 15 BK
MXSF03 10 BK
MXSF03 16 BL
MXSF03 12 GA
MXSF03 16 DG
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Upper Bounce MOXIE MXSF03-6-BL
Summary of Contents for Upper Bounce MOXIE MXSF03-6-BL
- Page 1 MOXIE PUMPKIN-SHAPED ™ OUTDOOR TRAMPOLINE SET WITH PREMIUM TOP-RING FRAME SAFETY ENCLOSURE FOR MODELS: MXSF03 6 BL MXSF03 12 BL USER MXSF03 6 OR MXSF03 14 DG MXSF03 8 GA MXSF03 14 GR MXSF03 8 GR MXSF03 15 GA MANUAL MXSF03 10 OR MXSF03 15 BK MXSF03 10 BK...
- Page 2 020-3150-0484 Email us support@upperbounce.com support@upperbounce.co.uk Check out our website www.uppperbounce.com THANK YOU FOR PURCHASING THE UPPER BOUNCE TRAMPOLINE PART ® Simply follow the assembly and safety in ructions in this manual and you will soon be arting your UPPER BOUNCE ®...
- Page 3 GENERAL INSTRUCTIONS Included in this manual are instructions for: Proper assembly, care and maintenance of product, safety tips, warnings, and proper use; in order to ensure a secure and fun use of the trampoline. All users and supervisors must read and familiarize themselves with all these instructions and all other information in this manual.
- Page 4 Never set up the trampoline in rainy, windy or stormy conditions, especially lightening conditions. It is recommended that the trampoline be anchored with ground stakes. Do not alter the product; use it only as described in this manual. Care and Maintenance Always inspect the trampoline before each use.
- Page 5 Do not perform somersaults on the trampoline as this will increase the chances of landing on your head or neck, paralysis or even death can result. Children do not recognize the potential dangers of this product, so do not allow your children to play on this product without adult supervision.
- Page 6 Proper Use The maximum weight allowed on the trampoline is 500 lbs. Overloading the trampoline above the recommended user weight will cause damage to the trampoline. No more than one person at a time should be allowed on the trampoline! Avoid unsupervised use of the trampoline.
- Page 7 TRAMPOLINE FRAME PARTS LIST QTY. QTY. QTY. QTY. PART DESCRIPTION ILLUSTRATION 6/8/10FT 12/14FT 15FT 16FT TOP-RAIL T JOINT FRAME PAD SPRING 36/48/60 72/80 0/0/6 EXTENSION LEG BASE BOLT SET 0/0/6 SPRING TOOL WRENCH...
- Page 8 TRAMPOLINE ENCLOSURE PARTS LIST QTY. QTY. QTY. QTY. PART DESCRIPTION ILLUSTRATION 6/8/10FT 12/14FT 15FT 16FT UPPER POLE LOWER POLE ENCLOSURE FIBERGLASS POLE CLIP 36/48/60 72/80 36/48/60 POLE 0/0/6 0/0/6 SLEEVE BOLT 0/0/6 0/0/6 ROPE...
- Page 9 ASSEMBLY INSTRUCTIONS Two adults are required for the folling assembly. For your safety, you should wear suitable gloves. Failure to follow these instructions can result in injury. Step 1 : Assembling the frame The upper rail (part A) has 2 different ends - one side is narrow, the other side is wider.
- Page 10 Step 3 : Please screw the “vertical leg extensions” (part F) to the leg base (part G). Please use the bolts (part H) for this. Step 4 : Assemble the legs (in step 3) with the frame (in step 2). Caution! Please note that all bolts point to the center of the frame.
- Page 11 Step 5 : Assembly of the jumping mat Use caution when installing the jumping mat. Two people, work gloves, and proper attire are recommended. 1) Unfold the jumping mat inside the ring. 2) Please attach the springs. The narrower opening of the spring (A) goes into the jumping mat eyelet.
- Page 12 3) Please repeat this process for all springs one after the other. So that the tension of the jumping mat is evenly distributed, please note the following figure and keep to the sequence of the spring assembly. Caution: Please be careful not to injure your fingers. As mentioned at the begin- ning, please use gloves! 4) Installation of the frame pad Please place the edge cover (part D) over the springs and the steel frame.
- Page 13 ENCLOSURE ASSEMBLY For your safety, it is recommended that assembly is done by 2 adults wearing working gloves. Step 1 : Please connect the poles to each other by inserting the lower enclosure pole (enclosure part B) into the upper enclosure pole (enclosure part A) securing it with the safety pin.
- Page 14 Step 4 : Hold the enclosure net (Enclosure Part C), with sleeves facing up. Pull each section of the fiberglass rod (Enclosure Part D) through each sleeve on the net. Connect the ends together forming a circle. This is easier when two people hold the net.
- Page 15 Step 6 : Pull back the frame pad for better visibility. Align the bottom hem of the enclosure net to the eyelet rings on the jumping mat and insert the Rope (Enclosure Part I) alternating between the slits in the jumping mat, and the eyelet rings. Congratulations you have completed the trampoline assembly!
- Page 16 JUMP LIKE A PRO! 1. Standing starting position, feet shoulder-width apart, head straight and eyes on the jumping mat. 2. Swing your arms forwards and up in a circular motion. 3. Bring your feet together in the air, toes pointing down.
- Page 17 Dispose of the packaging Please recycle all parts appropriately. Paper, cardboard, and plastic should be disposed to correct recycle areas according to your local recycling laws. CERTIFIED Trampoline replacement parts...
