Summary of Contents for Upper Bounce UBRTG01-1017

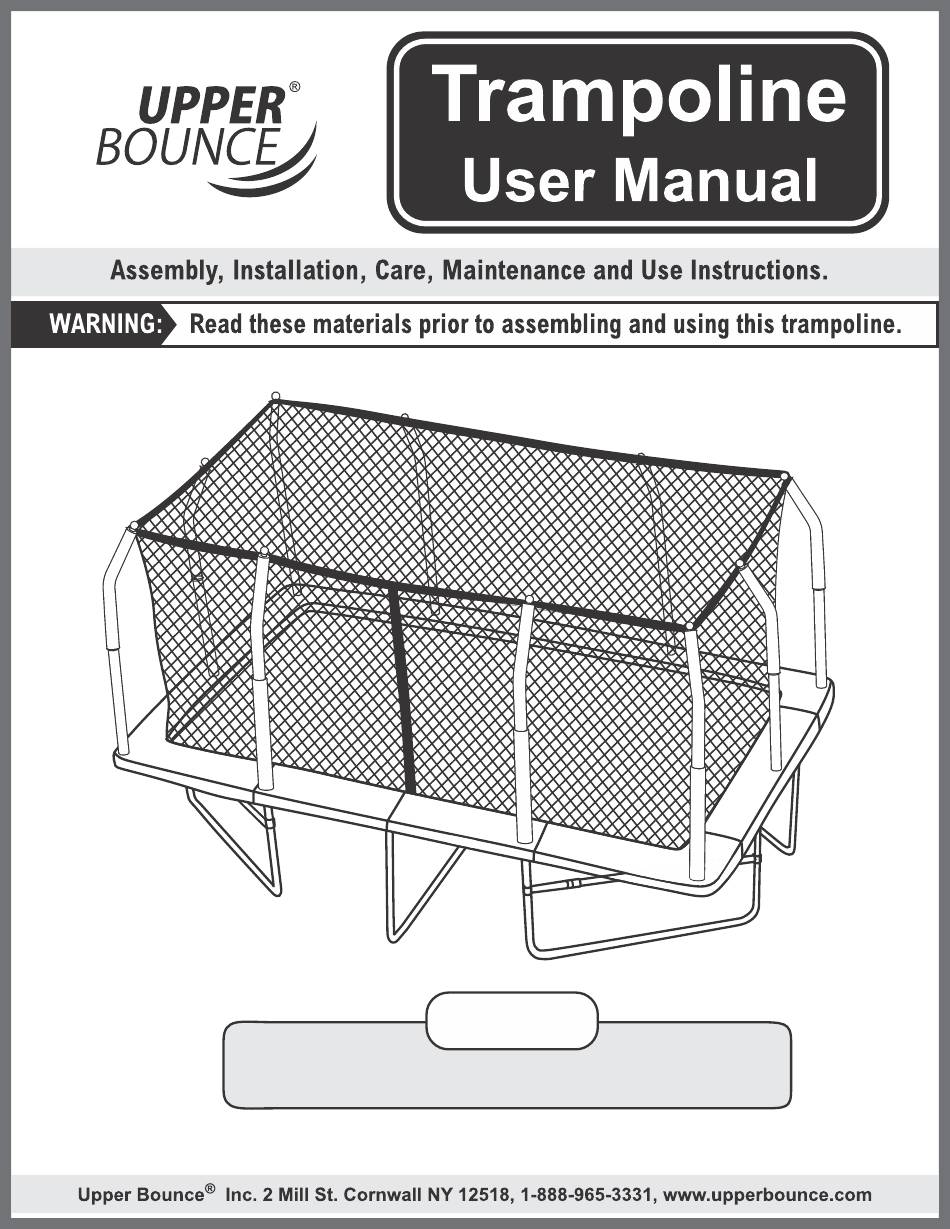

- Page 1 Model # S UBRTG01-1017, UB03EC-1017E Manual Version #03...
- Page 3 INTRODUCTION As with any type of recreational physical activity, without being careful participants can be injured. must...
- Page 4 TRAMPOLINE GUIDELINES Beware that when using tools or doing technical work there is always a risk of injury; therefore assemble the product carefully.
- Page 5 24 ft...
- Page 8 TRAMPOLINE PARTS LIST FOR UBRTG01-1017 UBRPTR1-1017 TOP RAIL A UBRPTR2-1017 TOP RAIL B UBRPTR3-1017 UBRPCT1-1017 CORNER TUBE UBRPCT2-1017 UBRPLE-1017 EXTENSION LEG BASE UBRPL1-1017 JUMPING UBRPM-1017 COVER UBRPP-1017 PADS SPRINGS UBHWD-SP-7 TOP RAIL SCREWS UBRPRS-1017 & NUTS LEG BASE UBRPSW-1017 SCREWS...
- Page 9 Frame assembly installation for model UBRTG01-1017 Attach the leg extensions to the leg base and tightly secure together with screws and washers Part #J and K. Continue doing the same to all 4 leg bases. 2. Connect the middle leg supports to the legs.
-
Page 10: Connect The Base
5. Assemble frame parts B1 and B2 with the 4 legs. Lay out the parts as shown in the figure. Connect the B1 and B2 and place onto the leg bases as shown in the figure below. Note: 1. Part #A goes on the long side of the trampoline - the 17 ft side. 2. - Page 11 1. Layout the Trampoline Mat inside the frame. 2. Connect all 4 corner springs to the corner top rails.
- Page 12 The safety pad has a few sets of strings with two S shaped hooks at the end, all around the pad. Attach the S shaped hooks to the V-rings of the mat. Attach the hooks from underneath the how to attach it correctly.
- Page 13 ENCLOSURE PARTS LIST 1017 PLASTIC CAP UBRPPC-814,915,1017 WITH HOLE UPPER POLE UBRPUP-814,915,1017 WITH FOAM 38.2’’ LOWER POLE UBRPLP-814,915,1017 WITH FOAM 39.4’’ UBRPFG3-1017 26’’ FIBERGLASS UBRPFG1-1017 ROAD 39.4’’ UBRPFG2-1017 33.5’’ SAFTEY ENCLOSURE NET UBRPPS-814,915,1017 POLE SCREW PVC SLEEVE UBRPRS-1017 WRENCH FIBER GLASS UBRPCC-1017 CORNERS PUSH BUTTON...
- Page 14 Connect the lower poles to the upper poles, connect it to the straighter part of the upper pole. Secure it together with screws at the point where it connects. Make sure the EPE foams are covering the poles. Connect the fiber glass pieces together, using 5 pcs of fiber glass to make the long line, and 3 pcs to make the short.
- Page 15 Insert the fiber glass into the the sleeve of the safety net. Long fiberglass for long side, short for shorter side; as explained in the previous step. After inserting the fiber glass into the sleeve of the enclosure net, both the long side and short side, connect the shorter side to the longer side with the corner pieces - part #J.
- Page 16 1. Connect the net to the V-rings of the trampoline mat using the attached clips, securing at regular intervals. This holds the net in place for you to com- plete the attachment with rope. 2. Secure one end of the rope by knotting it to the V-ring closest on one side to the trampoline entrance zipper.
- Page 17 TESTING THE TRAMPOLINE Hold onto the safety net and shake it to check that all the enclosure poles are sturdy. Re-tighten any that seem loose. Check the safety net for any tears in the stitching or fabric. CERTAIN PARTS MAY HAVE TO BE REPLACED OVER TIME FROM YOUR SUPPLIER, DUE TO WEAR AND TEAR.
- Page 18 FUNDAMENTAL BOUNCES TECHNIQUES Occasionally the user...
- Page 19 Trampoline Anchor Kit (Set of 4) UBHWD-AK-4 Deep Fastening Spiraled Anchor Kit- Set Of 4 UBHWD-AKB-4 Trampoline Spring Pull Tool (T-Hook) UBHWD-TH Upper bounce Trampoline Jumping Skate UB-TJB Springs UBHWD-SP-7-15 Economy Trampoline Weather Protection Cover, Fits for 9 x 15 FT. Rectangular Frames -Black UBWCRTG-159-BK 44 Inch Trampoline Pole Foam sleeves, fits for 1.5”...
