UPPER
BOUNCE
Assembly, Installation, Care , Maintenance and Use Instructions.
This Instructions manual is for Upper Bounce Enclosure Sets and
Enclosure Nets which is designed to fit most model Trampolines.
Models begins with UBES:
for Inside type Enclosure Sets
Models begins with UBNET:
for Enclosure Nets Only
Manual Version #05
®
Upper Bounce
Inc. 2 Mill St. Cornwall NY 12518, 1-888-965-3331, www.upperbounce.com

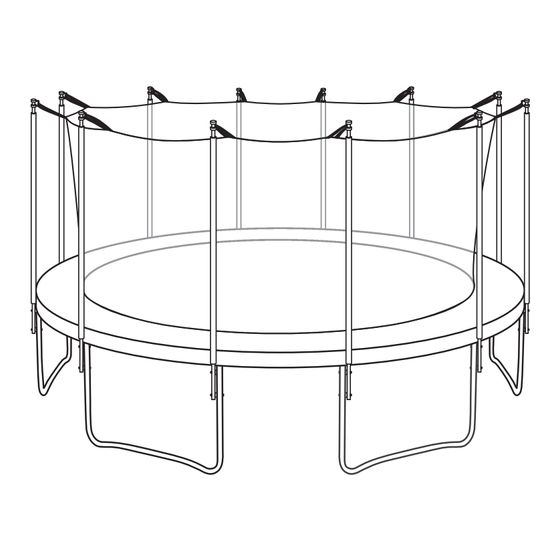

Enclosure Set &
®
Enclosure Net
USER MANUAL
Models begins with UBESOS:
for Outside type Enclosure Sets
Models begins with UBESFG:
for OS net, FG net for Flex On
Top Models
