22-01-2021 1a
/
Check out easy
mounting of your kitchen
Front with integrated handle
L03240, mano
L19241V
L06441H, mano
L06245V, mano
L08441V, mano
40 cm
L03240, mano
L19241H
L06441V, mano
L06245H, mano
L08441H, mano
40 cm
MH958
L03250, mano
L19251V
L06451H, mano
L06255V, mano
L08451V, mano
50 cm
L03250, mano
L19251H
L06451V, mano
L06255H, mano
L08451H,mano
50 cm
Aventos
L03260, mano
L19261V
L06461H, mano
L06265V, mano
L08461V, mano
60 cm
L03260, mano
L19261H
L06461V, mano
L06265H, mano
L08461H, mano
60 cm
1 /
17
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kvik MH958
Summary of Contents for Kvik MH958

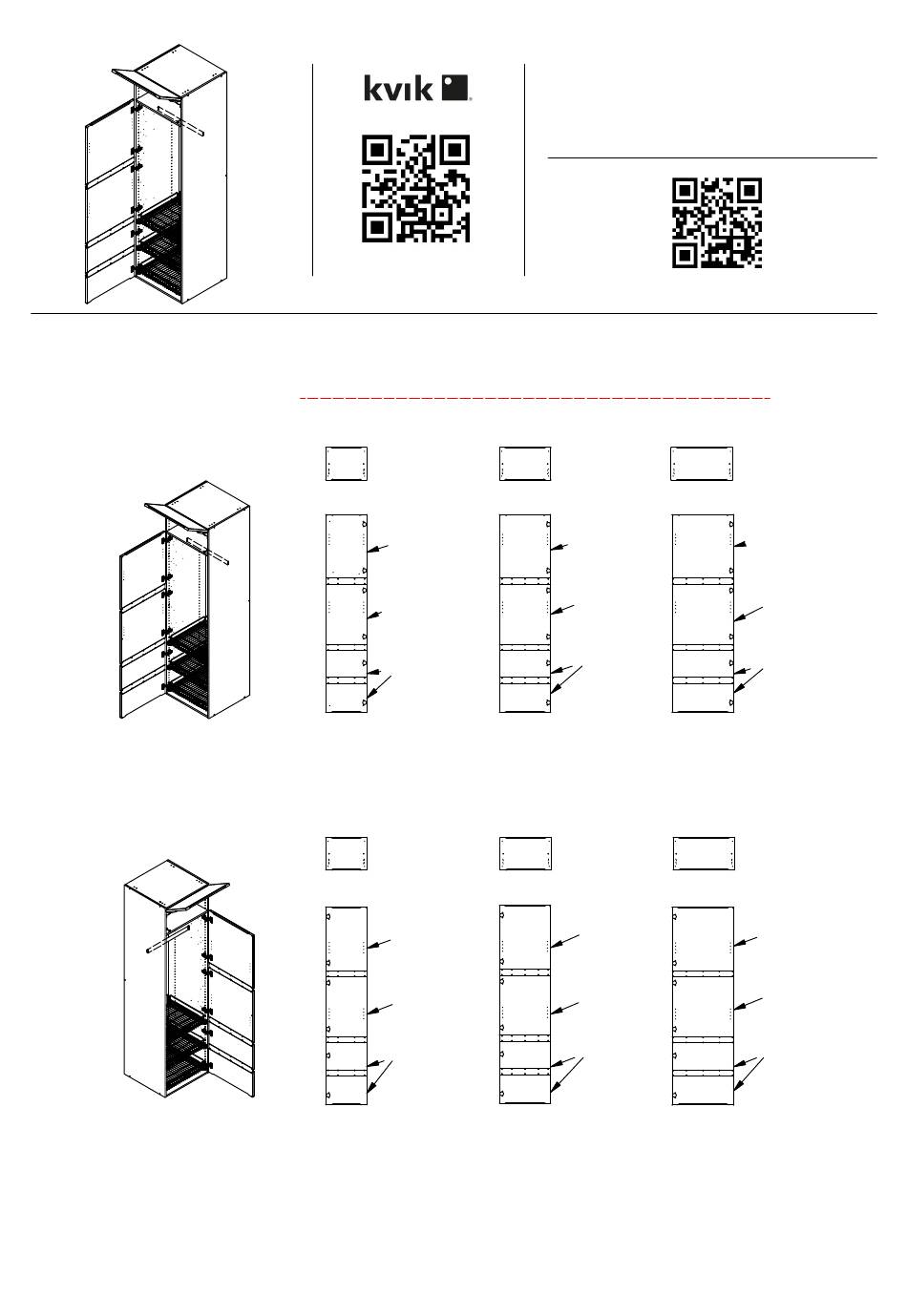

- Page 1 MH958 Check out easy Aventos mounting of your kitchen Front with integrated handle L03250, mano L03240, mano L03260, mano L19241V L19251V L19261V L06451H, mano L06461H, mano L06441H, mano L06255V, mano L06265V, mano L06245V, mano Left L08451V, mano L08461V, mano L08441V, mano...
- Page 2 MH958 Check out easy mounting of your kitchen Aventos DH194,***,000 (Support ) 1 pcs (Base-top) (Shelf) (Side) (Suspension list) 2 pcs 1 pcs 2 pcs 1 pcs (Back panel) BP00518 BP00417 Hinge 107 degrees Mounting plate 6 pcs 6 pcs...
- Page 3 MH958 FIG. ID11435 Slide L 3 pcs ID11435 Slide R 3 pcs Pull out FIG. Part for ID11435 Slide L 3 pcs ID11267 Luggage carrier 3 pcs Part for ID11435 Slide R 3 pcs 22-01-2021 1a...
- Page 4 MH958 FIG. Side Left Euroscrew Screw flh 6.3x20mm 3,5x25 mm 3 pcs Left 1 /9 /18 Euroscrew 6.3x20mm ID11435 (Side) Slide L BP11355 Underboarding 1 /9 /18 FIG. Side Right Euro screw Screw flh 6,3x11 mm 3,5x12 mm 3 pcs...
- Page 5 MH958 FIG. Side Left Screw flh 3,5x12 mm Euro screw 6,3x11 mm 3 pcs Right 1 /9 /18 Euro screw 6,3x11 mm (Side) ID11435 Slide L 1 /9 /18 FIG. Side Right Screw flh 3,5x25 mm Euroscrew 3 pcs 6.3x20mm...
- Page 6 MH958 FIG. Side Left Euro screw 6,3x11 mm 2 pcs Shelf support 14x12 mm 5 2 pcs (Side) FIG. Side Right Euro screw 6,3x11 mm 2 pcs Shelf support 14x12 mm 5 2 pcs (Side) 22-01-2021 1a...
- Page 7 MH958 FIG. (Side) (Side) 6-5 mm Deep FIG. (Side) (Side) Aventos Flip up R/L 1 pcs Screw flh 4x35 3 pcs 22-01-2021 1a...
- Page 8 MH958 FIG. (Suspension list) (Base-top) (Suspension list) NB!!! (Support ) (Side) (Base-top) FIG. (Back panel) 22-01-2021 1a...
- Page 9 MH958 FIG. Screw flh 3,5x45 mm 5 pcs (Side) Screw flh 3,5x45 mm 5 pcs 22-01-2021 1a...
- Page 10 MH958 (Shelf) (Shelf) Push -openw-magnet 1 pcs Euro screw 6,3x11 mm 2 pcs Adjustment 22-01-2021 1a 10 /...
- Page 11 MH958 Bumper 7x1,5 mm Screw flh 3,5x15 mm 10x5 4 pcs 2 pcs Aventos mounting plate 2 pcs L032*0,mano Drawer front Bumper 7x1,5 mm L032*0, mano Click 22-01-2021 1a 11 /...
- Page 12 MH958 Adjustment Click Aventos / Aventos Cap right Cap Left 22-01-2021 1a 12 /...
- Page 13 MH958 Close the door and press Place plate for magnet on the magnet Remove the protection paper BP11315 Rail holder Screw flh 3,5x15 mm 2 pcs 4 pcs 22-01-2021 1a 13 /...
- Page 14 MH958 Rail L192*1V / H Door Mano Left / Right Screw flh 3,5x15 mm L084*1V / H, mano L016*2V / H, mano 22-01-2021 1a 14 /...
- Page 15 MH958 L192*1V / H Door Mano Left / Right L084*1V / H, mano L062*5V / H, mano Screw flh 3,5x15 mm 4~5 pcs Flush L192*1V,mano = L084*1V + L062*5V + L064*1H, mano L192*1H,mano = L084*1H + L062*5H + L064*1V, mano...
- Page 16 MH958 Click BP00518 BP00417 Hinge 107 degrees Mounting plate 6 pcs 6 pcs Bumper 7x1,5 mm L192*1V / H L192*1V / H Door Mano Left / Right Door Mano Left / Right Bumper 7x1,5 mm Bumper 7x1,5 mm Right Left...
- Page 17 MH958 Adjustment ID11267 Luggage carrier 22-01-2021 1a 17 / 3 pcs...
