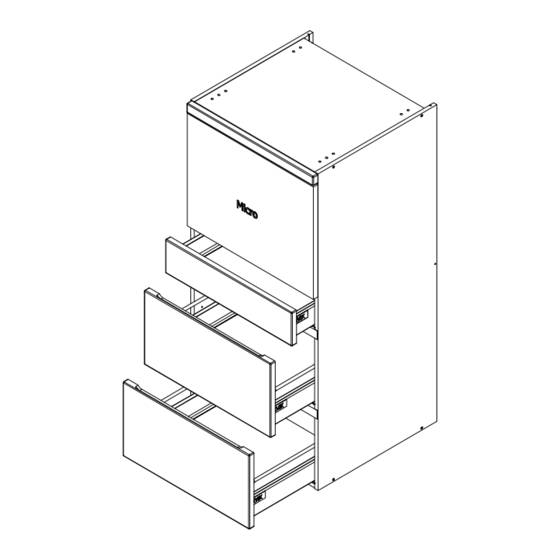

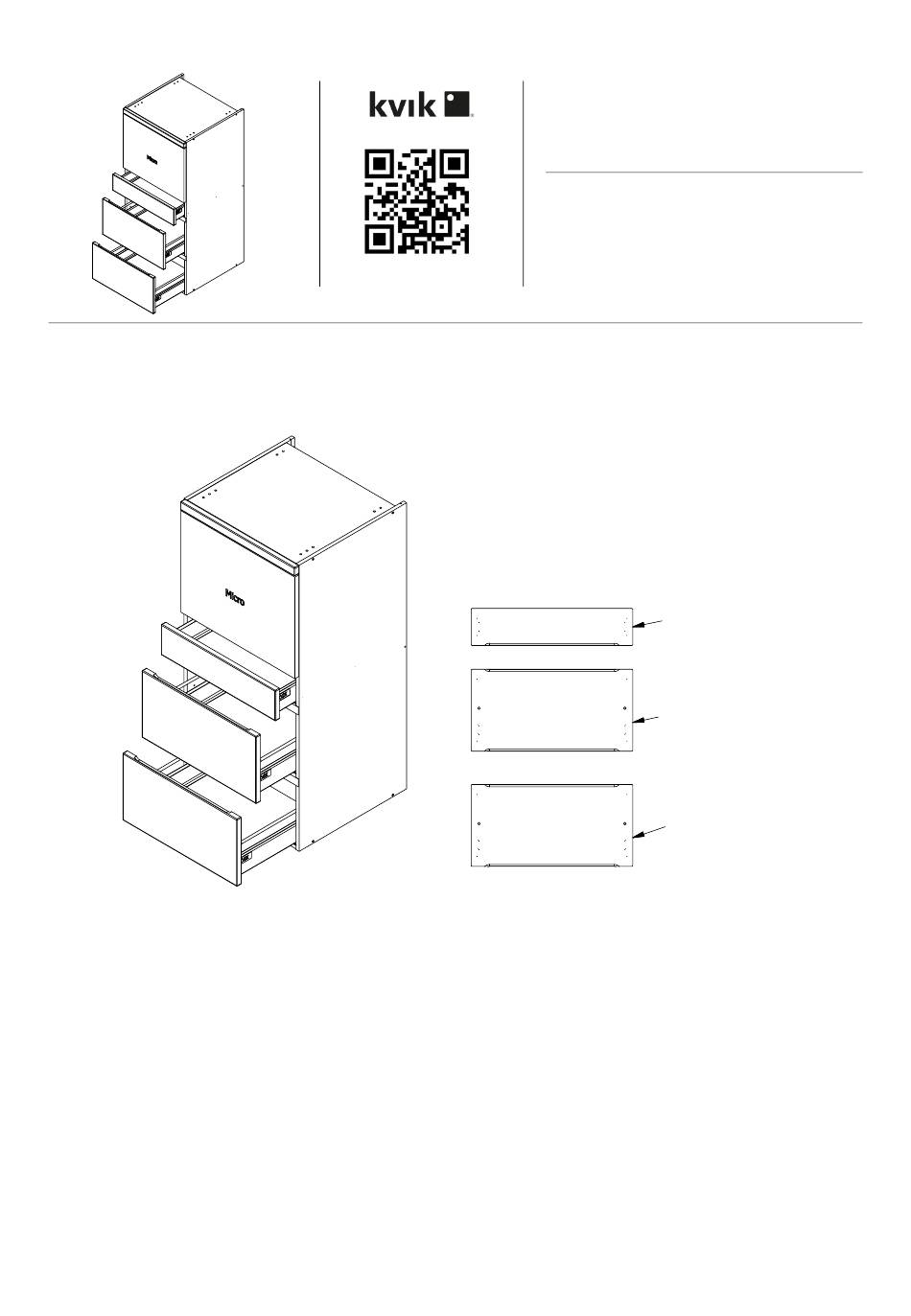

- Page 1 All manuals and user guides at all-guides.com MH569,060 Check out easy mounting of your kitchen L01460, mano Drawer front Mano L03060, mano Drawer front Mano L03060, mano Drawer front Mano 60 cm 13-04-2018 2...
- Page 2 All manuals and user guides at all-guides.com MH569,060 Check out easy mounting of your kitchen DH196,060,000/176 HS12860,000 / KVIK K71155 Base-top K10130 K10130,76 K12122 Back panel 567,5x781 Side Side Shelf K11155,76 Base top 2 pcs 1 pcs 2 pcs 1 pcs...
- Page 3 All manuals and user guides at all-guides.com MH569,060 FIG. Side Left Screw flh 3,5x15 mm K10130 5 pcs Side K10130,76 Side Drawer slide Left 1 pcs FIG. Side Right K10130,76 Side Screw flh 3,5x15 mm 5 pcs K10130 Side Drawer slide Right...
- Page 4 All manuals and user guides at all-guides.com MH569,060 FIG. Side Left Screw flh Euro screw 3,5x15 mm 6,3x11 mm 4 pcs 2 pcs Screw flh 3,5x15 mm K10130,76 Side Screw flh K10130 Euro screw 3,5x15 mm Side 6,3x11 mm 3 pcs...
- Page 5 All manuals and user guides at all-guides.com MH569,060 FIG. Side Left K10130,76 Screw flh Side 3,5x15 mm 2 pcs K10130 Side Euro screw 6,3x11 mm 2 pcs Shelf support Adjustable 2 pcs FIG. Side Right Screw flh 3,5x15 mm K10130,76...
- Page 6 All manuals and user guides at all-guides.com MH569,060 FIG. K71155 Base-top K11155,76 Base top K10130 K71155 Side Base-top K10130,76 Side K11155,76 Base top FIG. Screw flh 3,5x45 mm 4 pcs K10130 Side K10130,76 Side 13-04-2018 2...
- Page 7 All manuals and user guides at all-guides.com MH569,060 FIG. Screw flh 3,5x45 mm 4 pcs FIG. Euro screw 6,3x11 mm 4 pcs Angle 46x43 mm 2 pcs BP21X16 Alu profil 13-04-2018 2...
- Page 8 All manuals and user guides at all-guides.com MH569,060 FIG. Screw flh 3,5x15 mm 4 pcs BP21X16 Alu profil FIG. Euroscrew 4,2x9,5 4 pcs Rail holder front right 48,5x30 mm 1 pcs Always use # 2 in right side Euroscrew 4,2x9,5...
- Page 9 All manuals and user guides at all-guides.com MH569,060 FIG. Screw flh 3,5x15 mm 2 pcs Euro screw 5,8x15 2 pcs NB: Always use # 1 in left side K12122 K12122 Shelf Shelf 13-04-2018 2...
- Page 10 All manuals and user guides at all-guides.com MH569,060 Screw flh 3,5x45 mm 6 pcs Back panel 567,5x781 Screw ph Front list holder 25x10 mm 6 3x16 mm Flush 2 pcs 4 pcs 13-04-2018 2 10 /...
- Page 11 All manuals and user guides at all-guides.com MH569,060 L00460, mano Front list Mano Press Adjustment L00460, mano Front list Mano 13-04-2018 2 11 /...
- Page 12 All manuals and user guides at all-guides.com MH569,060 13-04-2018 2 12 /...
