01-08-2018 0b
/
Check out easy
mounting of your kitchen
Left
Right
MH982,060
L07860H, mano
Door Mano
L01660, mano
Drawer front Mano
L03060, mano
Drawer front Mano
L03060, mano
Drawer front Mano
L07860V, mano
Door Mano
L01660, mano
Drawer front Mano
L03060, mano
Drawer front Mano
L03060, mano
Drawer front Mano
1 /
12
Advertisement
Related Manuals for Kvik MH982-060
Summary of Contents for Kvik MH982-060

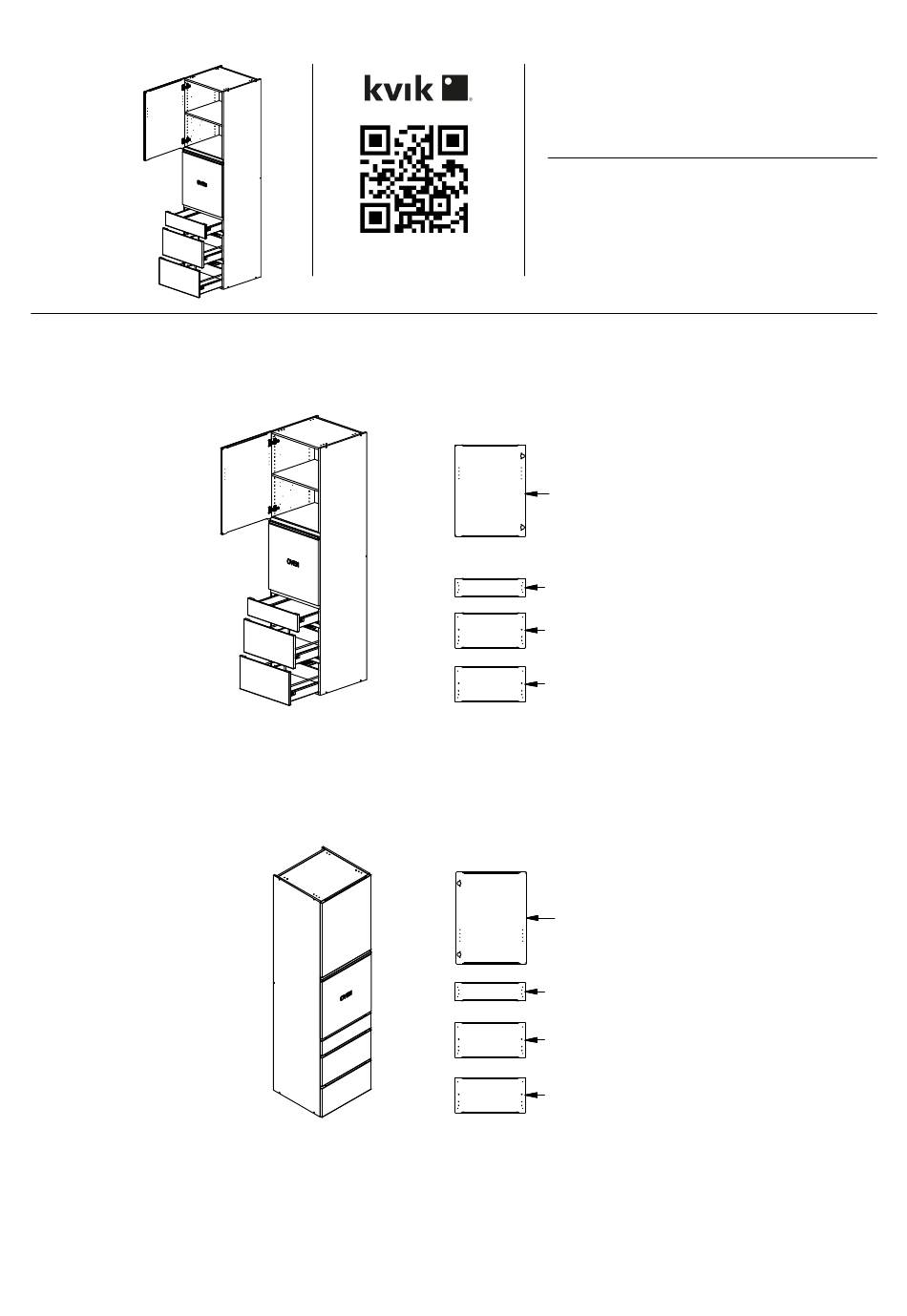

- Page 1 MH982,060 Check out easy mounting of your kitchen Left L07860H, mano Door Mano L01660, mano Drawer front Mano L03060, mano Drawer front Mano L03060, mano Drawer front Mano Right L07860V, mano Door Mano L01660, mano Drawer front Mano L03060, mano Drawer front Mano L03060, mano Drawer front Mano...
- Page 2 MH982,060 Check out easy mounting of your kitchen DH196,060,000 K71155 K12122 K10107 Base-top Shelf Side 2 pcs 1 pcs 2 pcs L00260, mano Front list Mano K13547 L07860H/V K12123 1 pcs Back panel 567,5x816 (Left / Right) Shelf 2 pcs 1 pcs 2 pcs Drawer slide Left...
- Page 3 MH982,060 Screw flh Screw flh FIG. Euro screw 3,5x15 mm 3,5x15 mm 6,3x11 mm Euro screw 6 pcs 4 pcs 2 pcs 6,3x11 mm 4 pcs Euro screw Screw flh 6,3x11 mm 3,5x15 mm Screw flh 3,5x15 mm Shelf support Adjustable 4 pcs Screw flh...
- Page 4 MH982,060 FIG. K71155 Base-top K10107 Side K71155 Base-top FIG. Screw flh 3,5x45 mm 4 pcs K10107 Side 01-08-2018 0b...
- Page 5 MH982,060 FIG. Screw flh 3,5x45 mm 4 pcs FIG. K12123 Shelf K12123 Shelf K12123 Shelf 2 pcs 01-08-2018 0b...
- Page 6 MH982,060 FIG. NB!!! K13547 Back panel 567,5x816 Screw flh 3,5x45 mm 12 pcs K13547 Back panel 567,5x816 FIG. Euro screw 6,3x11 mm 4 pcs Angle 46x43 mm 2 pcs BP21XXX Alu profil 01-08-2018 0b...
- Page 7 MH982,060 FIG. Rail holder front left 48,5x30 mm Euroscrew 4,2x9,5 4 pcs Always use # 2 in right side BP21XXX Rail holder front right Alu profil 48,5x30 mm Always use # 1 in left side FIG. Screw flh 3,5x15 mm K12123 8 pcs Shelf...
- Page 8 MH982,060 FIG. Flush Screw ph 3x16 mm 4 pcs Front list holder 25x10 mm 6 2 pcs FIG. Press L00260, mano Front list Mano 01-08-2018 0b...
- Page 9 MH982,060 FIG. Adjustment Click BP00418 BP00417 Hinge 107 degrees 2 pcs Mounting plate 2 pcs Bumper 7x1,5 mm L07860H/V, Mano L07860H/V, Mano (Left/Right) (Left/Right) Bumper 7x1,5 mm 01-08-2018 0b...
- Page 10 MH982,060 L07860H/V, Mano (Left/Right) Adjustment 01-08-2018 0b 10 /...
- Page 11 MH982,060 Shelf support 5x7 mm Plast 4 pcs K12122 Shelf 01-08-2018 0b 11 /...
- Page 12 MH982,060 01-08-2018 0b 12 /...
