08-06-2018 0b
/
Check out easy
mounting of your kitchen
Left
Right
MH916,060
L03260, mano
Drawer front Mano
L12860V
L06461H, mano
Door Mano
L06263V, mano
Door Mano
L08461V, mano
Door mano
60 cm
L03260, mano
Drawer front Mano
L12860H
L06461V, mano
Door Mano
L06263H, mano
Door Mano
L08461H, mano
Door mano
60 cm
Aventos
1 /
15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kvik MH916-060
Summary of Contents for Kvik MH916-060

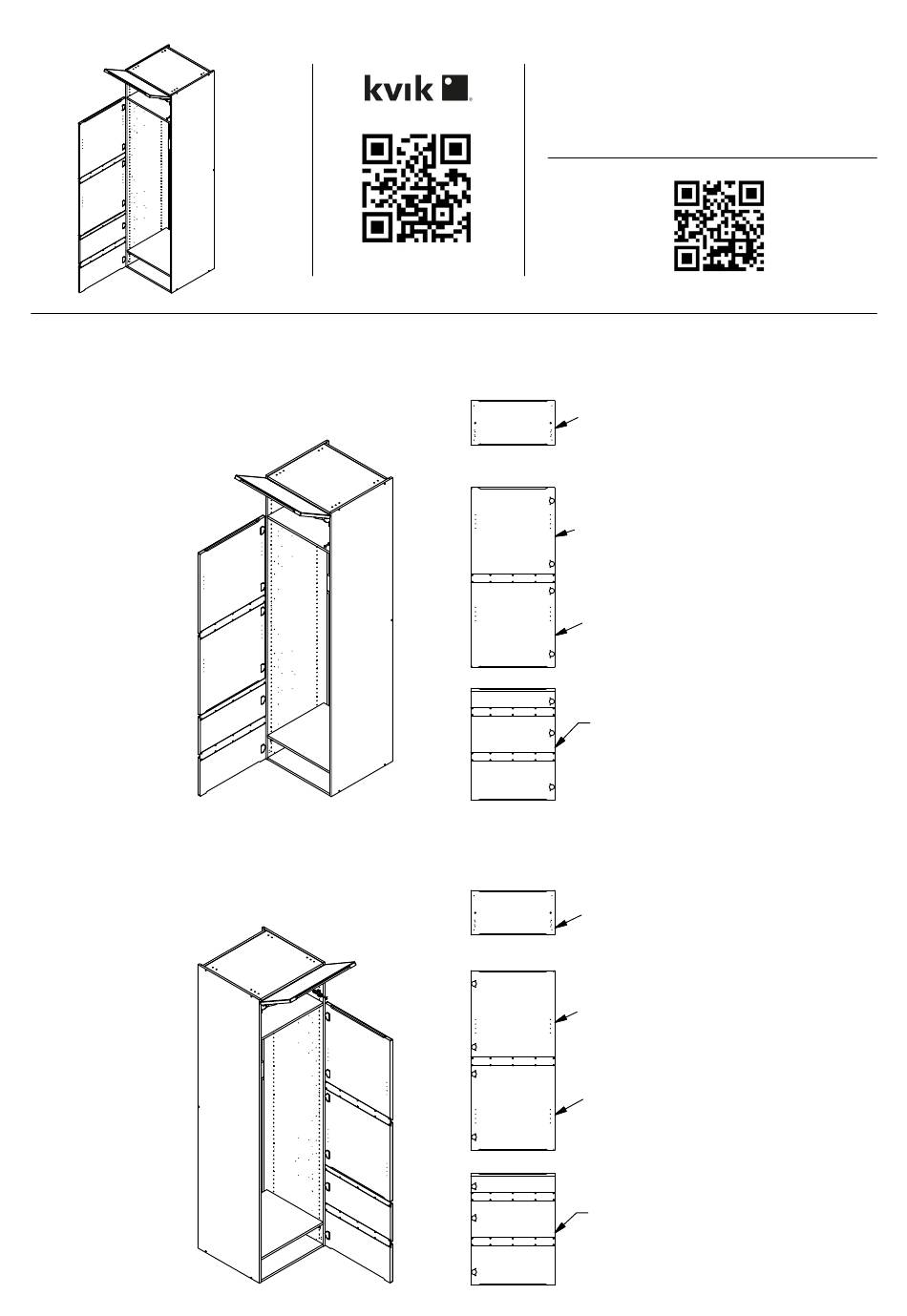

- Page 1 MH916,060 Check out easy mounting of your kitchen Aventos L03260, mano Drawer front Mano Left L12860V L06461H, mano Door Mano L06263V, mano Door Mano L08461V, mano Door mano 60 cm L03260, mano Right Drawer front Mano L12860H L06461V, mano Door Mano L06263H, mano Door Mano L08461H, mano...
