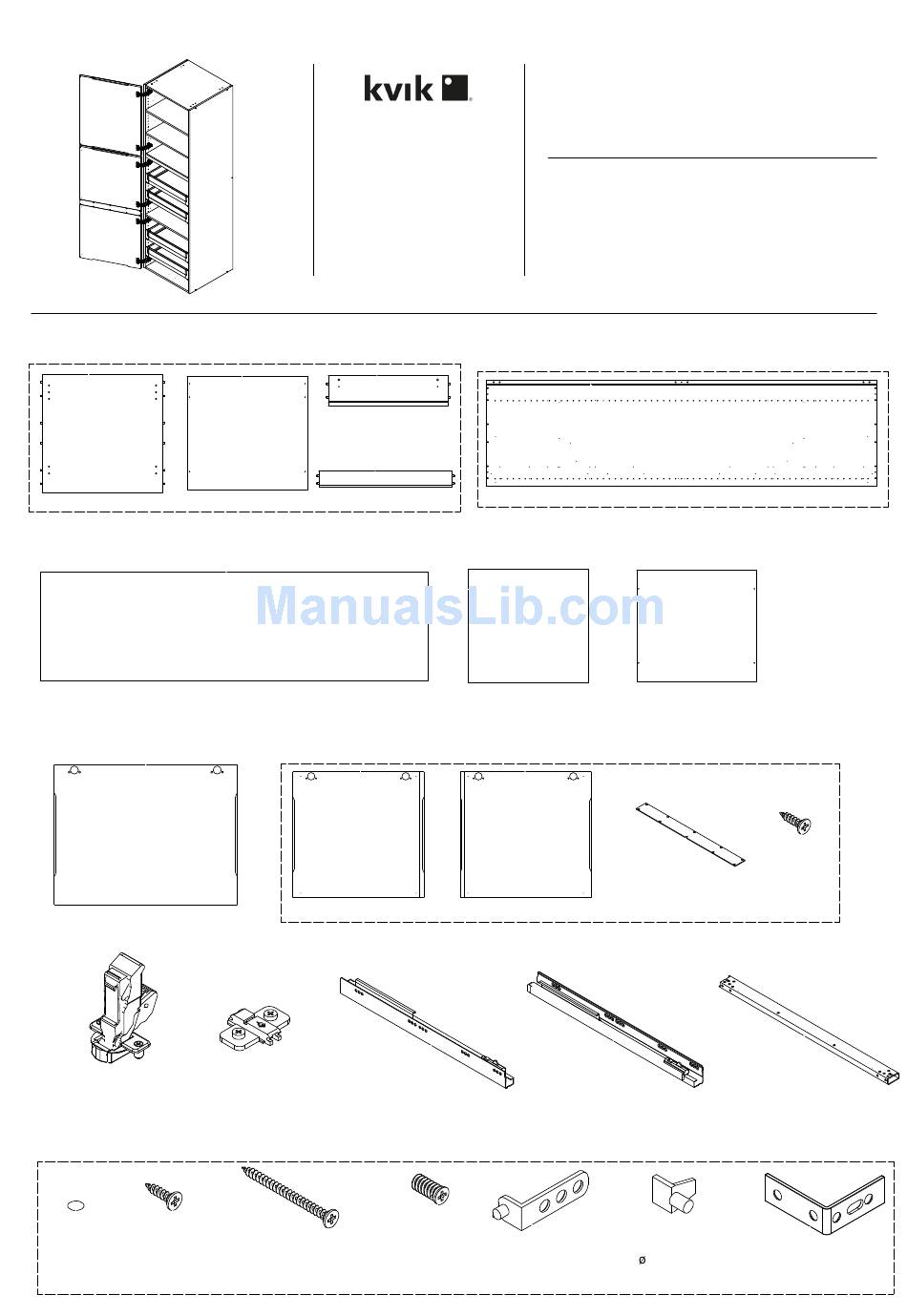

DH194,060,***
K71120
Base top
OR
K11120
Base-top
2 pcs
L08060
Door Mano
1 pcs
K15355
Hinge 155 degrees
6 pcs
Bumper
Screw flh
7x1,5 mm
3,5x15 mm
4 pcs
34 pcs
12-02-2015 2
/
K13320
Support
1 pcs
K12220
Shelf
K13360
Suspension list
1 pcs
K13110
Back panel
1 pcs
L09904
Front Mano
1 pcs
BP00417
Drawer slide Left
Mounting plate
6 pcs
4 pcs
BP00001-BP00491-BP00031
Screw flh
3,5x45 mm
10 pcs
1 pcs
K12120
Shelf
2 pcs
L12863 Door Mano
L09906
Front Mano
1 pcs
Drawer slide Right
500
Shelf support
Euro screw
Adjustable
6,3x11 mm
4 pcs
22 pcs

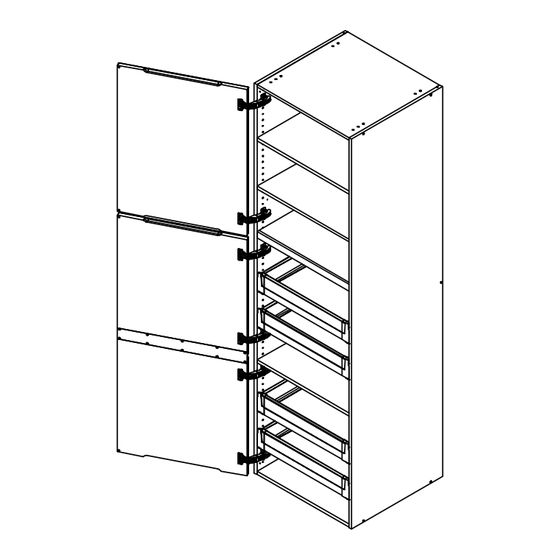

MH832,060
HS20860 / KVIK
K10110
OR
Side
2 pcs
K12124
Shelf
1 pcs
596x60
Metal list
1 pcs
500
4 pcs
Shelf support
5x7 mm Plast
12 pcs
K10110,**
Side
Screw flh
3,5x15 mm
10 pcs
Alu profil
567,5x35x15
1 pcs
Angle
46x43 mm
2 pcs
1 /
11
