Kvik MH967-060 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
23-04-2018 0b
/
Check out easy
mounting of your kitchen
Left
Right
MH967,060
L09660, mano
Door Mano
60 cm
L03060, mano
Drawer front Mano
L03060, mano
Drawer front Mano
60 cm
L09660, mano
Door Mano
60 cm
L03060, mano
Drawer front Mano
L03060, mano
Drawer front Mano
60 cm
1 /
13

Advertisement

loading
Need help?

Need help?

Do you have a question about the MH967-060 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kvik MH967-060

Summary of Contents for Kvik MH967-060

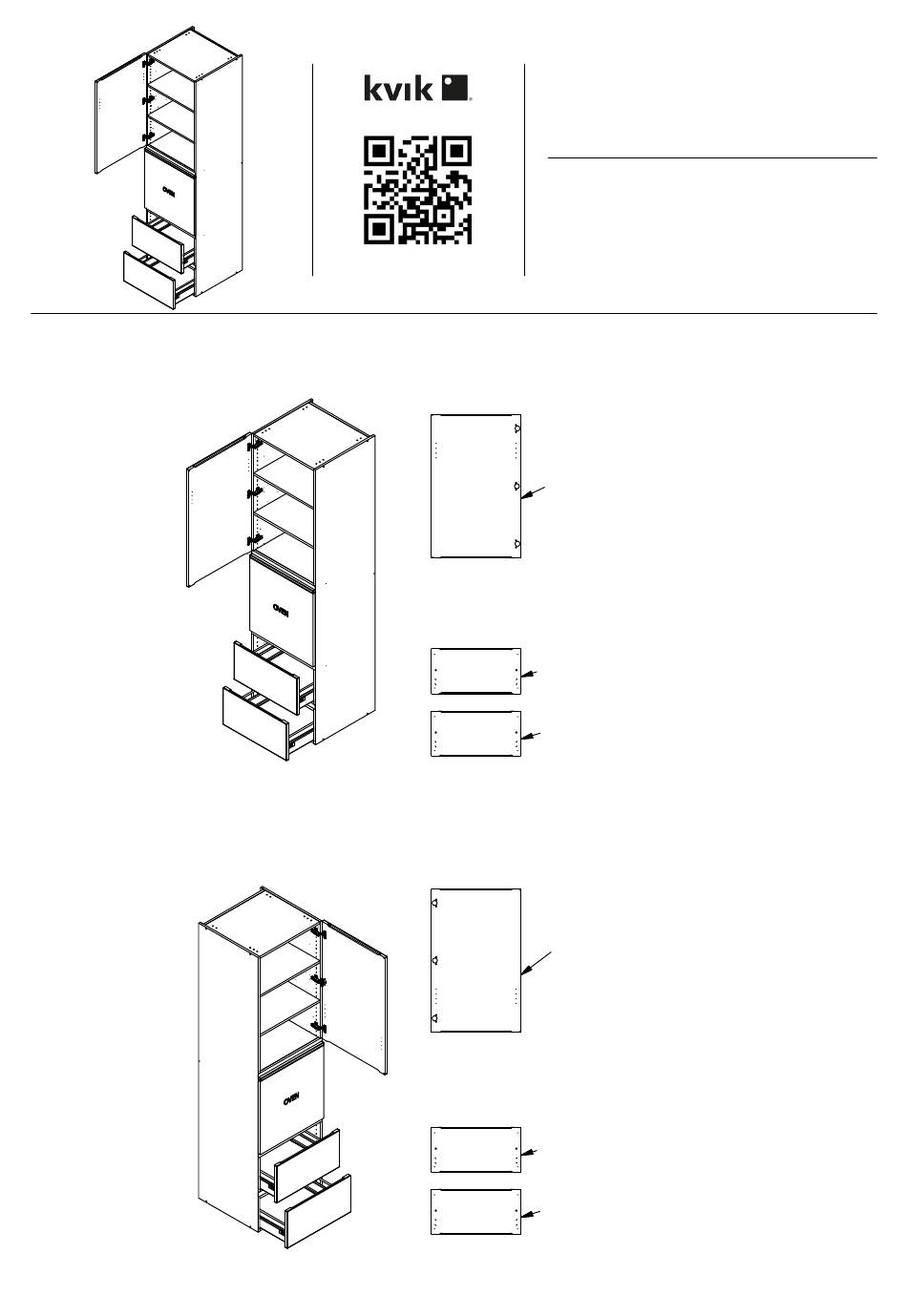

  • Page 1 MH967,060 Check out easy mounting of your kitchen Left L09660, mano Door Mano 60 cm L03060, mano Drawer front Mano L03060, mano Drawer front Mano 60 cm Right L09660, mano Door Mano 60 cm L03060, mano Drawer front Mano L03060, mano Drawer front Mano 60 cm 23-04-2018 0b...
  • Page 2 MH967,060 Check out easy mounting of your kitchen DH195,060,000 K71155 K12122 K12123 K10107 Base-top Shelf Shelf Side 2 pcs 2 pcs 2 pcs 2 pcs L00260, mano Front list Mano K13507 K13536 L09660, mano Back panel Back panel Door Mano 1 pcs 1 pcs 1 pcs...
  • Page 3 MH967,060 FIG. Side Left Screw flh 3,5x15 mm Euro screw Screw flh 6 pcs 6,3x11 mm 3,5x15 mm 2 pcs Euro screw 6,3x11 mm Angle 46x43 mm 4 pcs Angle 46x43 mm K10107 Screw flh Angle Side 3,5x15 mm 46x43 mm FIG.
  • Page 4 MH967,060 FIG. Side Left Euro screw Screw flh 6,3x11 mm 3,5x15 mm 2 pcs 4 pcs Screw flh 3,5x15 mm K10107 Side Screw flh Euro screw 3,5x15 mm 6,3x11 mm 3 pcs NB!!!! Drawer slide Left 2 pcs FIG. Side Right Euro screw Screw flh 6,3x11 mm...
  • Page 5 MH967,060 FIG. K71155 Base-top K10107 Side K71155 Base-top FIG. Screw flh 3,5x45 mm 4 pcs K10107 Side 23-04-2018 0b...
  • Page 6 MH967,060 FIG. Screw flh 3,5x45 mm 4 pcs FIG. K12123 Shelf K12123 2 pcs Shelf K12123 Shelf Euro screw 6,3x11 mm 8 pcs 23-04-2018 0b...
  • Page 7 MH967,060 FIG. K13507 Back panel Screw flh 3,5x45 mm 12 pcs K13536 Back panel FIG. Euro screw 6,3x11 mm 4 pcs Angle 46x43 mm 2 pcs BP21X16 Alu profil 23-04-2018 0b...
  • Page 8 MH967,060 FIG. BP21X16 Alu profil Screw flh 3,5x15 mm 8 pcs FIG. Euroscrew 4,2x9,5 4 pcs Rail holder front right 48,5x30 mm 1 pcs Always use # 2 in right side Euroscrew 4,2x9,5 Rail holder front left 48,5x30 mm 1 pcs BP21X16 Alu profil Always use # 1 in left side...
  • Page 9 MH967,060 FIG. Screw flh 3,5x15 mm 2 pcs Euro screw 5,8x15 2 pcs NB: Always use # 1 in left side Screw ph 3x16 mm 4 pcs Front list holder 25x10 mm Flush 2 pcs 23-04-2018 0b...
  • Page 10 MH967,060 L00260, mano Front list Mano Press Adjustment 23-04-2018 0b 10 /...
  • Page 11 MH967,060 Shelf support 5x7 mm Plast 8 pcs K12122 Shelf K12122 Shelf K12122 Shelf 2 pcs 23-04-2018 0b 11 /...
  • Page 12 MH967,060 Click BP00418 BP00417 Hinge 107 degrees Mounting plate 3 pcs 3 pcs Bumper 7x1,5 mm L09660, mano L09660, mano Door Mano Door Mano Bumper 7x1,5 mm Left Right L09660, mano L09660, mano Door Mano Door Mano 23-04-2018 0b 12 /...
  • Page 13 MH967,060 Adjustment 23-04-2018 0b 13 /...
