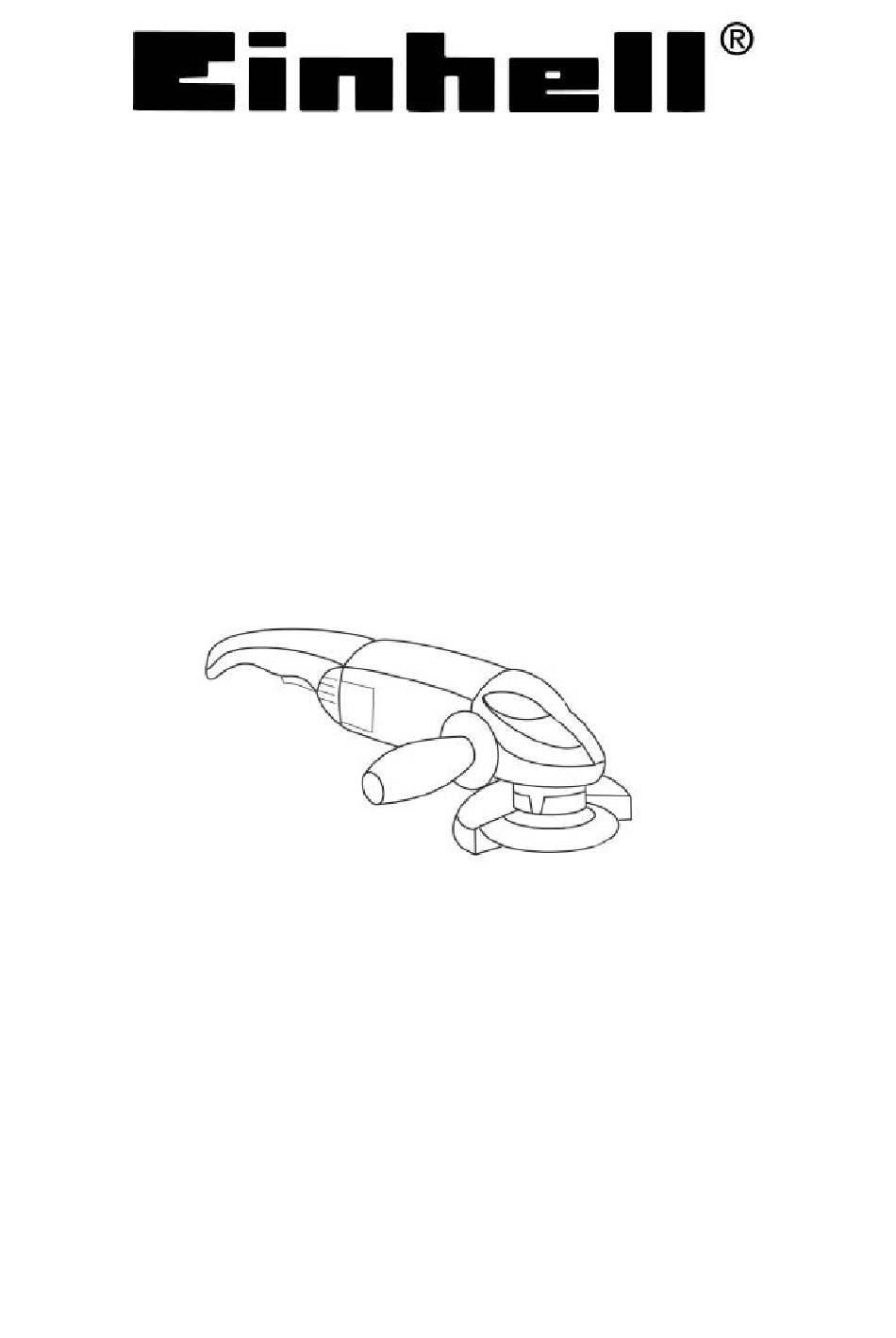

- Page 1 INSTRUCTION MANUAL ANGLE GRINDER Model: BAG 125 Manufacturer: Einhell AG Address: Wiesenweg 22; D-94405 Landau Telephone: +49-9951-9420 Fax: +49-9951-1702...
- Page 2 WARNING READ ALL INSTRUCTIONS Always observe the safety regulations applicable in your country to reduce risk of fire, electric shock and personal injury. Understand the following safety instructions before attempting to operate this product. Keep these instructions in a safe place GENERAL SAFETY RULES Work Area •...
- Page 3 • Do not over reach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations. • Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hardhat and hearing protection must be used for appropriate conditions.
- Page 4 1.On/off switch 2.Wheel guard 3.Spindle lock 4. Inner flange 5. Side handle 6. Grinding disc * Outer flange is hidden from view under grinding disc (see fig.3) Assembly This package contains: 1 angle grinder 1 outer flange 1 side handle 1 spanner wrench 1 wheel guard 1 instruction manual...
- Page 5 5. Insert outer flange and tighten with spanner. 6. If necessary, adjust wheel guard to appropriate position. 7. Install side handle on either side of grinder by turning handle clockwise (Fig.4) OUTER FLANGE INNER FLANGE Operation This heavy-duty grinder is designed for the following uses: •...
- Page 6 Accessories A spanner wrench (fig.2) is included for tightening and removing the inner and outer flanges. For grinding operations, use only depressed center wheels of proper diameter. Model: BAG 125 Voltage: 120Volts AC Cycle: 60Hz, 1-phase Rated current: 9.0A Wheel: 5”...
- Page 7 Toll-free telephone: 1-800-268-4669 TWO-YEAR GUARANTEE Your Einhell power tool is guaranteed for two years. If the tool should stop working within two years from the date of purchase you should return it either to the retailer where you purchased it or to Quality Craft for a free replacement.
