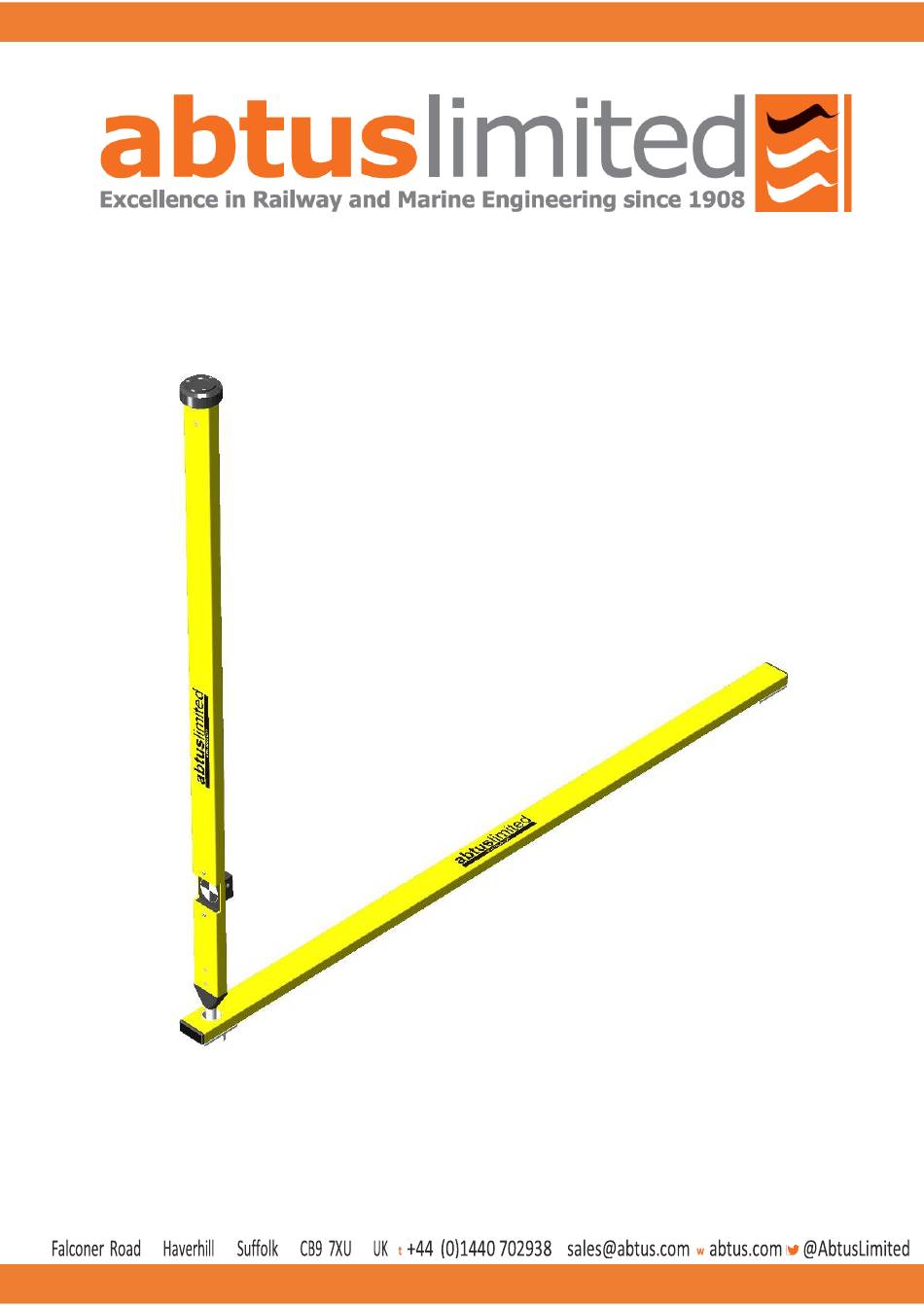

- Page 1 ABT4659 Target Pole Instruction Manual...
- Page 2 1.0 Index Index Specification Target Pole Maintenance Before Each Use Every 3 Months 2.0 Specification Weight Size (stacked) 1585mm x 95mm x 45mm 3.0 Target Pole The target pole is an optional accessory for RouteScan. It allows the measurement of points that cannot be ‘seen’...
- Page 3 Figure 1 To measure a point using the target pole, load the Single Point screen and tick the ‘Target Pole’ tick box as shown in Figure 2. The software will automatically adjust the measurement by the vertical height of the target. Figure 2 AGI2 - Single Point Measurement...
- Page 4 Make sure there are no obstructions in the Rail Pole socket such as dirt. 4.2 Every 3 Months Visually inspect the ABT4659 for signs of damage. If necessary, contact your local distributor for help. Check the Pointed Foot and Rounded Foot for wear by measuring the length as shown in figure. The foot should be replaced if it has worn by more than 1mm.
