Hyundai D3021 ADU02 Manual

Instructional Symbols /
Definitions
Denotes warnings that may lead to
serious physical injury or vehicle
damage.
Denotes cautions to be taken to
avoid physical injury or electronic
component damage.
Denotes cautions to be taken to
avoid vehicle and component
damage.
Basic Required Hand Tools
Step Ladder Clean Cloth
Coin
REGULARLY CHECK THE TIGHTNESS BY PERFORMING A TUG ON THE CROSSBARS.
THEY SHOULD NOT MOVE. If crossbars move, see step 5 for proper tightening. Incorrect clamp tightness can cause crossbar
separation from vehicle resulting in product failure and vehicle damage. Serious physical injury may occur.
Loads must be evenly distributed and secured.
Any weight carried on the vehicle will adversely affect its handling particularly in cornering or in a cross wind and the vehicle should therefore be
driven with increased caution.
Only use NON-STRETCH tie down straps. Use of stretch elastic tie downs may cause loss of load, potential serious injury, and vehicle damage.
Notes to the Installer:
1) Read the entire installation instructions prior to beginning the installation of this accessory.
2) Make sure the vehicle is completely clean before the accessory is installed.
3) Ensure the vehicle is properly protected in the area(s) that the accessory is to be installed.
4) To prevent vehicle damage, never place tools on top of painted surfaces, seats, dash pad, console or floor carpet/mats.
5) Always wear appropriate safety gear including gloves and safety glasses when required.
6) Confirm correct Crossbar Kit P/N with vehicle roof type application before installing.
Genuine Accessories
Vehicle Model: Tucson
Model Year
2016 ~
Part No.
D3021 ADU02 (Standard Roof)
D3121 ADU01 (Panoramic Roof)
Language
English
Rev. Date
8/22/2018
Note: Difficulty stated above reflects the minimum level of expertise required to install the accessory.
( A ) Customer ( B ) Dealer Technician
WARNING: Do NOT install Standard Roof Crossbar Set on a Panoramic Roof vehicle.
* For Standard Roof models use Part No. D3021 ADU02:
Do not exceed manufacturer's roof load limit of 220 lbs / 100 Kg
* For Panoramic Roof models use Part No. D3121 ADU01:
Do not exceed manufacturer's roof load limit of 220 lbs / 100 Kg
Denotes quality processes to be checked
prior to moving to the next step.
Denotes specific tools that are necessary to
complete the step.
Denotes instructional steps necessary
to complete the process.
Tape Measure
Revision Date
( C ) Master Technician
Specialty Required Tools
Wrench (Included)
FMVSS110 Compliance Information
All dealers must determine if the weight they
have added in the form of all options or
Part Number:
accessories, when added to the weight of all
D3021 ADU02
Port/Dealer Installed options or accessories,
5.73 lbs
exceeds the lesser of 1.5% of GVWR or 100
2.60 kg
lbs. If the additional weight does exceed the
(Gross Weight)
lesser of the indicated thresholds, a "Load
Carrying Capacity Reduced" label must be
Part Number:
installed. A black, fine-point, indelible marker
D3121 ADU01
must be used to write by hand onto the label,
6.17 lbs
the reduced carrying capacity in kilograms or
2.80 kg
pounds, which is the total weight of all added
(Gross Weight)
options and accessories.
Load Label Part Number: NP070 - 09003
08/22/2018

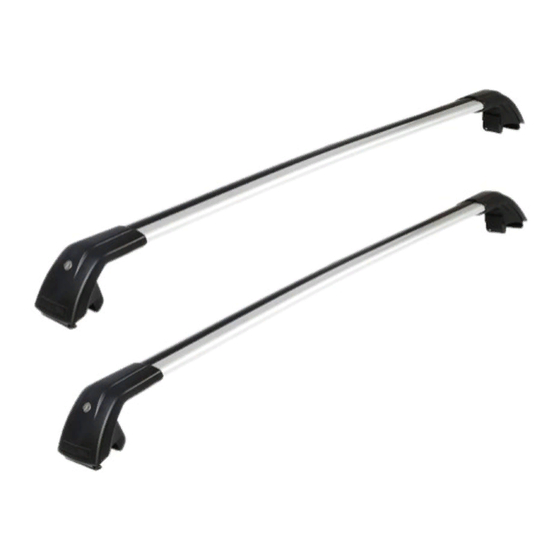

Accessory: Crossbar Set
Difficulty
( A )
Denotes safety equipment required to be
used such as a mask, safety glasses,
gloves, and hearing protection.
Safety Glasses
Mask
Gloves Hearing Protection
