Hyundai L0F62 AU000 Quick Reference Manual
Hyundai L0F62 AU000 Quick Reference Manual

Hyundai L0F62 AU000 Quick Reference Manual

Mirror, auto-dimming w/ hl5 for hyundai sonata

Advertisement

Quick Links

Copy OEM Logo Here
(→)

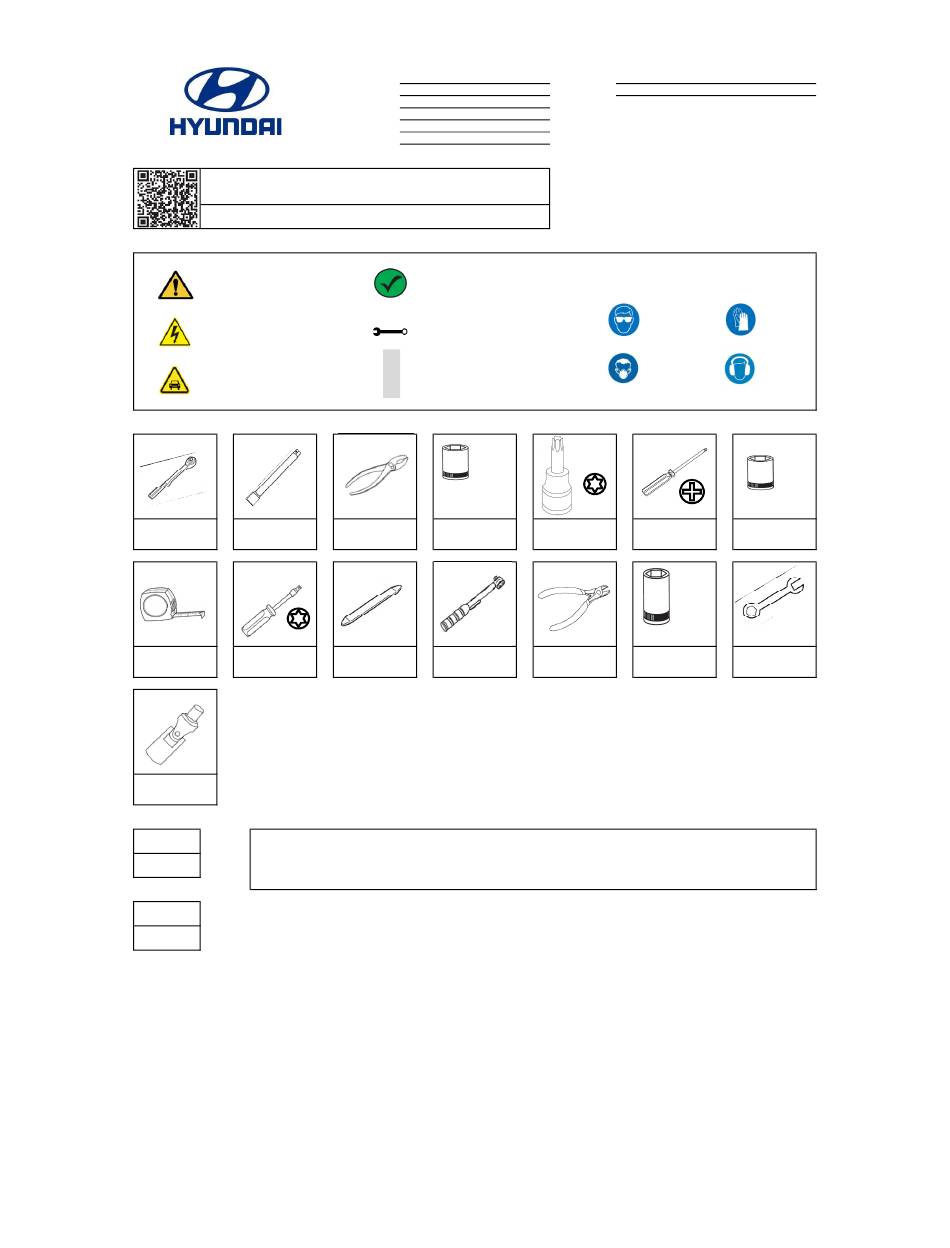

Electronic Installation Instructions
If this is a printed copy of the installation instructions, ensure you have the latest revision by
scanning the QR code or by entering the website address listed below before beginning
Entered by
installation. Use the latest revision date as noted by "Rev. Date" above.
MPA
www.hyundaiaccessories.com/admin_media_uploads/installationSheets/l0f62_au000.pdf
Instructional Symbols / Definitions
Denotes warnings that may lead to
serious physical injury or vehicle damage
Denotes cautions to be taken to avoid
physical injury or electronic component
damage
Denotes cautions to be taken to avoid
vehicle and component damage
Basic Required Tools
Ratchet
Extension
T20
Tape Measure
T20 Torx Driver
Universal Joint
Part Weight (Gross)
FMVSS 110 Compliance Information
All dealers must determine if the Net weight they have added in the form of all options or accessories, when added to the weight of all Port/Dealer Installed
1.10
lbs
options or accessories, exceeds the lesser of 1.5% of GVWR or 100 lbs. If the additional weight does exceed the lesser of the indicated thresholds, a "Load
Carrying Capacity Reduced" label must be installed. A black, fine-point, indelible marker must be used to write by hand onto the label, the reduced carrying
0.50
kg
capacity in kilograms or pounds, which is the total weight of all added options and accessories.
Load Label Part Number: NP070 - 09003
Part Weight (Net)
0.75
lbs
0.34
kg
Notes to the installer:
1) Read the entire Installation Instructions prior to beginning the installation of the part.
2)
If applicable, scan the barcode label located on the accessory part or packaging prior to installing, to register the part. If this accessory is installed as
a replacement, register the removal of the old part before registering the new part. Old and new parts will have different barcode data, and the old
registration cannot be reused.
3) Make sure the vehicle is completely clean and dry in the area(s) the part is to be installed.
4) Ensure the vehicle is properly protected in the area(s) that the accessory is to be installed.
5) NEVER place tools on painted surfaces, seating surfaces, dash pad, console or floor carpet/mats.
6) Always wear appropriate personal protective equipment, including gloves, safety glasses, etc., when required.
7) Record radio presets prior to disconnecting battery, if needed.
8) Roll down the driver's window and adjust the power seats (if applicable) prior to disconnecting battery power, if needed.
9)
Factory wire harness colors are subject to change. Please use the specified pin number in the harness connector to identify
the correct wire for T-Tap installation.
10)
Ensure the parking brake is set and foot is on the brake pedal while function checking.
Genuine Accessories
Vehicle Model: Sonata
Model Year 2020~
Part No. L0F62 AU000 (DIO)
L0F62 AU600 (PIO)
Language English
Rev. Date 3/3/2020
Denotes quality processes to be checked
prior to moving to the next step
Denotes specific tools that are necessary
to complete a step
N
O
Denotes important information to be
reviewed during the step
T
E
M12
Pliers
12mm Socket
Nylon Panel
Torque Wrench
Removal Tool
Revision Date
03/03/2020
Accessory: Mirror, Auto-Dimming w/ HL5
Difficulty: ( B )
Note: Difficulty stated above reflects the minimum level of
expertise required to install the accessory:
(A) Customer
(B) Dealer Technician
(C) Master Technician or Specialist
Denotes personal protective equipment (PPEs) that
may be required for a step. Examples of safety
equipment icons noted below:
Glasses
Mask
Hearing Protection
T20
#2 Phillips
T20 Torx Socket
Screwdriver
M10
10mm Deep Well
Side Cutters
Socket
Gloves
M10
10mm Socket
M10
10mm Combination
Wrench
Page 1 of 16

Advertisement

loading
Need help?

Need help?

Do you have a question about the L0F62 AU000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hyundai L0F62 AU000

  • Page 1 Accessory: Mirror, Auto-Dimming w/ HL5 Model Year 2020~ Difficulty: ( B ) Copy OEM Logo Here (→) Part No. L0F62 AU000 (DIO) Note: Difficulty stated above reflects the minimum level of L0F62 AU600 (PIO) expertise required to install the accessory: Language English (A) Customer Rev.
  • Page 2 Genuine Accessories Kit Overview Description Mirror, Auto-dimming w/ HL5 Hardware Kit Quick Reference Guide Hardware Kit Contents A-Pillar Tether Clip Harness Wire Ties* Wire Wrap T-Taps* Part No. 85815 C1000 * Indicates extra components intentionally included in kit as spares. Hardware Total Follow instructions for proper placement of each component.
  • Page 3: Electrical Connection Procedure

    Genuine Accessories Electrical Connection Procedure Wire Appearance Disconnecting Connectors Wires may be solid color, or striped (tracer). The first color in the description When disconnecting the wires, grasp the connectors, not the wires. indicates the base color of the wire; the second indicates the stripe. Example: Example: Solid color wire...
  • Page 4 Genuine Accessories Ratchet, 10mm Deep Well Socket, and Extension A. Ensure the correct part is being installed. Verify the part number on A. Carefully pull the front of the driver's side door weatherstrip back to allow the installation orders with the part number on the kit box label. removal of the A-pillar trim panel.
  • Page 5 Genuine Accessories Pliers A. Continue removing the A-pillar trim panel by pulling the top out toward A. Using pliers, pull the remaining portion of the A-pillar tether clip out of the passenger's side of the vehicle until the remaining one (1) clip is the A-pillar and discard.
  • Page 6 Genuine Accessories #2 Phillips Screwdriver Nylon Panel Removal Tool Center  Cover Plastic  Shroud A. Place the new provided tether clip in the A-pillar trim panel by aligning the A. Gently tilt the mirror head downward to expose upper portion of the slot on the trim panel with the tether clip.
  • Page 7 Genuine Accessories Nylon Panel Removal Tool Fuse Panel Cover A. Remove the fuse panel cover and set aside in a safe location. A. Reach through the fuse panel opening and push the Dash Side Panel out by dislodging the three (3) pressure clips. B.
  • Page 8 Genuine Accessories T20 Torx Socket, Ratchet, and Torque Wrench Tape Measure 178mm (7in) A. Slide the new mirror over the windshield button. A. Starting 178mm (7") from the connector, open the provided one (1) wire B. Using a torque wrench and T20 Torx Socket, torque the T20 Torx screw wrap and begin placing the provided one (1) accessory mirror harness to: 1.76 N-m (0.18 kgf-m, 15.6 lb-in).
  • Page 9: Junction Block

    Genuine Accessories Side Cutters Wire Ties Hooks Tabs A. Route mirror harness down the A-pillar into the dash, toward the engine A. Reinstall the plastic shroud by sliding up under mirror and against the side of fuse panel. headliner, engaging the top retaining tabs on both sides and then gently NOTE: Ensure wire harness is routed away from the curtain airbag and snapping the lower tabs of the cover in place.
  • Page 10 Genuine Accessories Tape Measure Blue Wire  PIN # 30 A. Reach up behind the junction block and pull the mirror harness down. A. Locate Pin # 30 (Blue wire) which is the center pin in the last row. B. Route the mirror harness to the right hand side of the large vertical factory NOTE: Disconnect Connector E, if needed.
  • Page 11 Genuine Accessories Side Cutters 10mm socket, Universal Joint, Extension, Ratchet, 10mm Combination Wrench Large  Factory Harness Wire Ties A. Secure the wire harness using three (3) wire ties as shown. A. Route harness through opening on the left side of the junction block, B.
  • Page 12 Genuine Accessories Pliers and Tape Measure T‐Tap  on  Pin # 8  (Orange  Black Wire  Wire) connected to  T‐Tap A. Peel back insulation tape approximately 1.5" from the end of the A. Insert male spade terminal of the mirror harness (Black wire) connector to make room for T-Tap, if needed. into the T-Tap connector (Orange Wire), for switched ignition power.
  • Page 13: Function Check

    Genuine Accessories Side Cutters Ratchet, 10mm Deep Well Socket, Extension, and Torque Wrench Function Check Preparation Wire Ties A. Take up any excess harness slack and secure to vehicle harnesses A. Reconnect the negative (-) battery cable, and torque to: with two (2) wire ties as shown. 5.0 ~ 6.0 N.m (0.50 ~ 0.60 kgf.m, 45 ~ 52 lb-in).
  • Page 14 Genuine Accessories Function Check HomeLink Indicator HomeLink Buttons A. Ensure that the ignition is "ON". A. Ensure a new tether clip has been inserted into the A-pillar trim panel B. Press each HomeLink button, one-at-a-time, and verify that the LED and begin reinstall of the A-pillar trim panel. indicator illuminates from behind the glass.
  • Page 15 Genuine Accessories Visual Check Item to be Checked Result Negative (-) battery terminal re-tightened and terminal cover is reinstalled, if Battery cable is correctly fastened to the negative terminal. Nut is properly applicable. torqued. Cover is reinstalled, if applicable Mirror Torx screw is tightened and windscreen sensor panel is reinstalled. Screw is tightened and properly torqued.
  • Page 16 Genuine Accessories Wiring Diagram Junction Block Junction Block Connector 'MAIN E' Connector 'FRNT B' Gauge Color Function Circuit Fuse BLK w/ White IG (switched power) Power Dist. A/Con 7.5A Reverse Override Reverse Lamp Revision Date 03/03/2020 Page 16 of 16...
