Hyundai CWF21 AU000 Manual

Copy OEM Logo Here
Electronic Installation Instructions
If this is a printed copy of the installation instructions, ensure you have the latest revision by
scanning the QR code or by entering the website address listed below before beginning installation.
Use the latest revision date as noted by "Rev. Date" above.
www.hyundaiaccessories.com/admin_media_uploads/installationSheets/cwf21_au000.pdf
Application Notes
Instructional Symbols / Definitions
Denotes warnings that may lead to
serious physical injury or vehicle damage
Denotes cautions to be taken to avoid
physical injury or electronic component
damage
Denotes cautions to be taken to avoid
vehicle and component damage

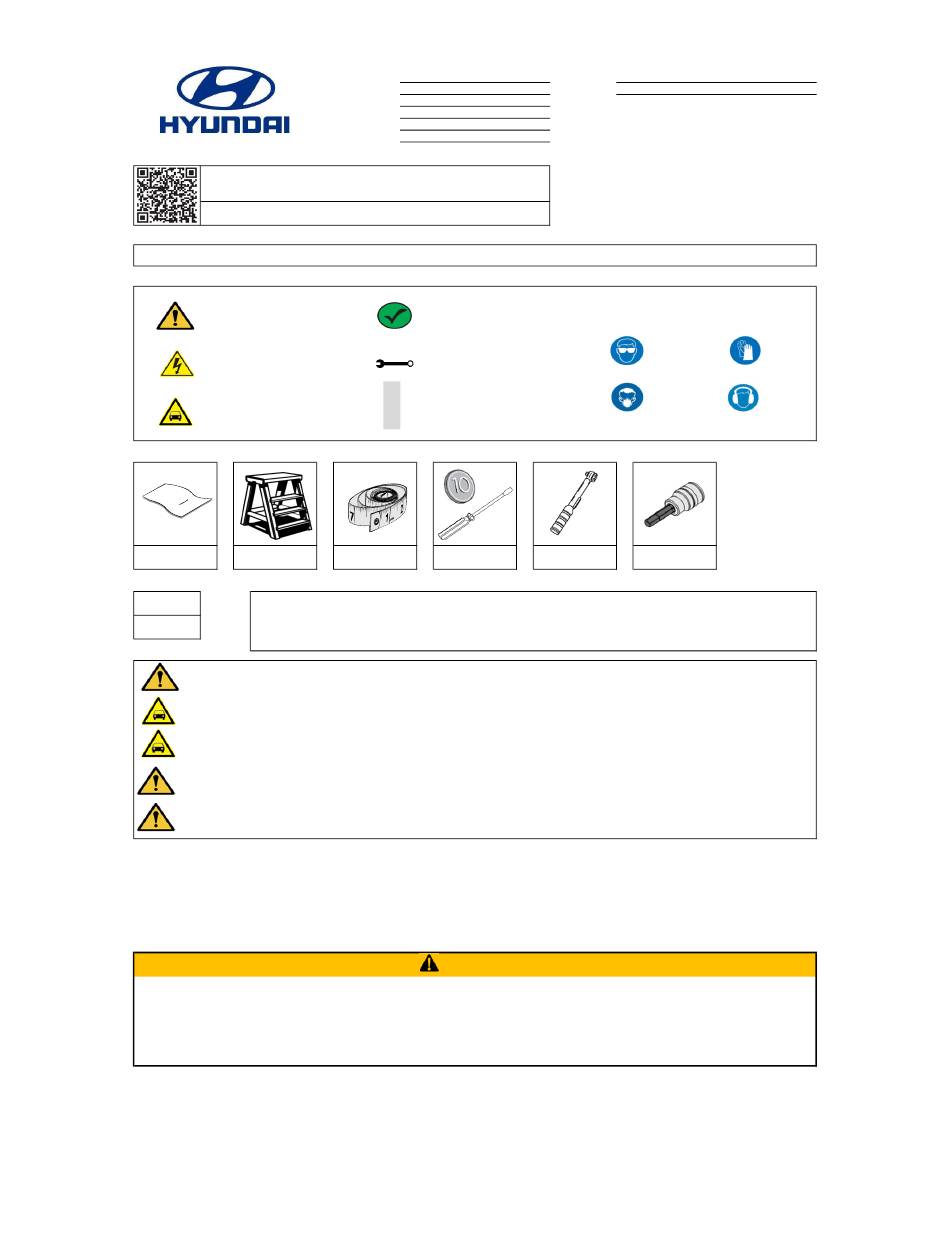

Basic Required Tools
Clean Cloth
Part Weight (Gross)
10.60
lbs
4.80
kg
REGULARLY CHECK THE TIGHTNESS BY PERFORMING A TUG ON CROSSBARS.THEY SHOULD NOT MOVE.
If crossbars move, see step 3~5 for proper tightening. Incorrect clamp tightness can cause crossbar separation from vehicle resulting in
product failure and vehicle damage. Serious physical injury may occur.
Loads must be evenly distributed and secured. Failure to achieve the distribution requirements may result in loss of vehicle control, severe personal injury, or death.
Any weight carried on the vehicle will adversely affect its handling, particularly in cornering or in a cross wind and the vehicle should therefore be driven with increased caution.
Only use NON-STRETCH tie down straps. Use of stretch elastic tie downs may cause loss of load, potential serious injury, and vehicle damage.
Never exceed 165 LBS (75 KG) on top of crossbars. Failure to adhere to load limits may result in loss of vehicle control, severe personal injury, or death.
Notes to the installer:
1) Read the entire Installation Instructions prior to beginning the installation of this accessory.
2) If applicable, scan the barcode label located on the accessory part or packaging prior to installing, to register the part. If this accessory is installed as a replacement, register the removal of
the old part before registering the new part. Old and new parts will have different barcode data, and the old registration cannot be reused.
3) Make sure the vehicle is completely clean and dry in the area(s) the part is to be installed.
4) Ensure the vehicle is properly protected in the area(s) that the accessory is to be installed.
5) NEVER place tools on painted surfaces, seating surfaces, dash pad, console or floor carpet/mats.
6) Always wear appropriate personal protective equipment, including gloves, safety glasses, etc., when required.
• Never exceed 165 lbs (75 kg) on top of crossbars.
• Evenly distribute the load
• Ensure the crossbars are secure.
• Always check the height of the vehicle when crossbars and attachments are installed before driving under tunnels or parking
structures with low bridges.
• Precaution must be taken when operating vehicle's sunroof with crossbars and attachments installed.
Failure to adhere to load limits and distribution requirements may result in loss of vehicle control, severe personal injury, or death.
5560668001
Genuine Accessories
Vehicle Model: Tucson
Model Year 2022~
(→)
Part No. CWF21 AU000
Language English
Rev. Date 1/28/2021
Does NOT apply to models equipped with a Panoramic Roof
Denotes quality processes to be checked
prior to moving to the next step
Denotes specific tools that are necessary
to complete a step
N
O
Denotes important information to be
T reviewed during the step
E
Step Ladder Tape Measure
FMVSS 110 Compliance Information
All dealers must determine if the Net weight they have added in the form of all options or accessories, when added to the weight of all Port/Dealer Installed
options or accessories, exceeds the lesser of 1.5% of GVWR or 100 lbs. If the additional weight does exceed the lesser of the indicated thresholds, a "Load
Carrying Capacity Reduced" label must be installed. A black, fine-point, indelible marker must be used to write by hand onto the label, the reduced carrying
capacity in kilograms or pounds, which is the total weight of all added options and accessories.
Load Label Part Number: NP070 - 09003

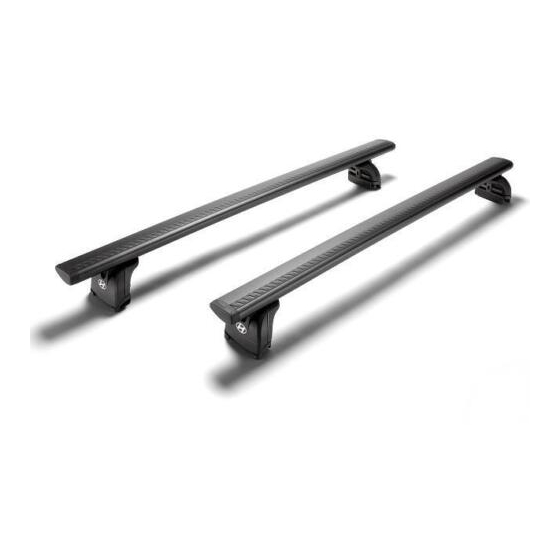

Accessory: Crossbars
Difficulty: ( A )
Note: Difficulty stated above reflects the minimum level of
expertise required to install the accessory:
(A) Customer
(B) Dealer Technician
(C) Master Technician or Specialist
Denotes personal protective equipment (PPEs) that
may be required for a step. Examples of safety
Glasses
Mask
Coin or Flat-Head
Torque Wrench
Screwdriver
WARNING
Revision Date
01/28/2021
equipment icons noted below:
Gloves
Hearing Protection
5mm Allen Socket
Page 1 of 6
