PART NUMBER
U8780 2B000J9 / J4 (NON S/R)
U8781 2B000J9 / J4 (S/R)

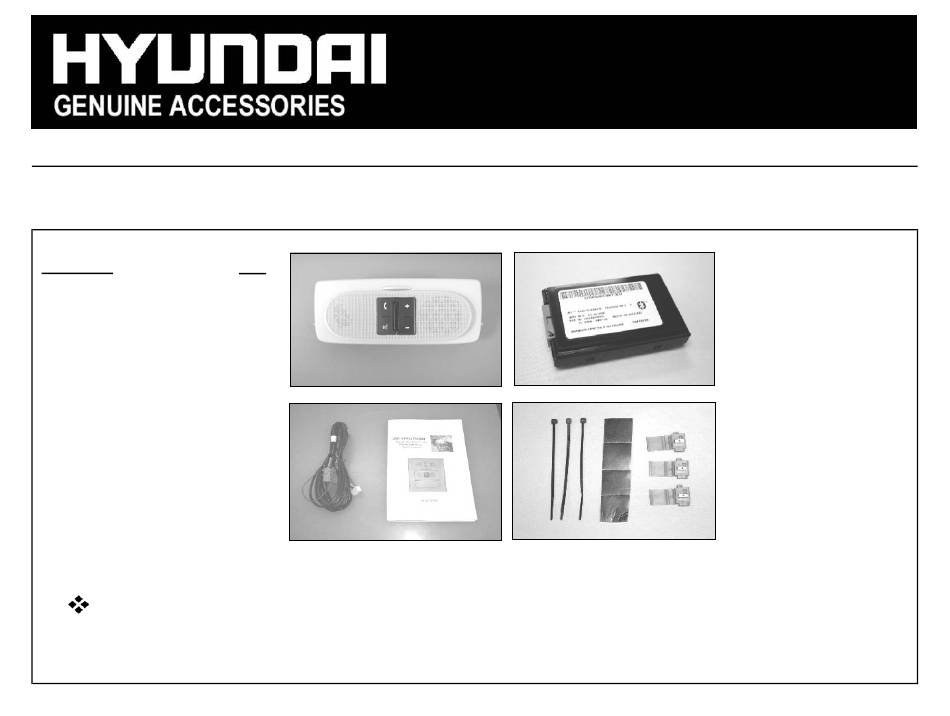

KIT CONTENTS
Description
UIB-Door Assembly
Module Box
Main Harness
User Guide Packet
Tie Straps
Foam Adhesive Pads
Scotchlok #558 Connectors
Installation Instructions
Please refer to sections pertaining to SUNROOF and to NON SUNROOF options
INSTALLATION INSTRUCTIONS
BLUETOOTH SYSTEMS®
QTY
1
1
1
1
3
4
3
1
Page 1 of 17
HBCI-DIO-SF-01
REV. DATE: 04/04/2008
APPLICABLE MODEL:
2008 Santa Fe
Advertisement
Related Manuals for Hyundai U8780 2B000J9/J4
Summary of Contents for Hyundai U8780 2B000J9/J4
- Page 1 HBCI-DIO-SF-01 INSTALLATION INSTRUCTIONS REV. DATE: 04/04/2008 PART NUMBER APPLICABLE MODEL: BLUETOOTH SYSTEMS® U8780 2B000J9 / J4 (NON S/R) 2008 Santa Fe U8781 2B000J9 / J4 (S/R) KIT CONTENTS Description UIB-Door Assembly Module Box Main Harness User Guide Packet Tie Straps Foam Adhesive Pads Scotchlok #558 Connectors Installation Instructions...
-
Page 2: Tools Required
INSTALLATION PROCEDURE TOOLS REQUIRED #1 Phillips Screwdriver #2 Phillips Screwdriver Cordless Drill Driver Extension 1/16” Drill Bit w/Hex Head 7/32" Drill Bit w/Hex Head 1/2" Drill Bit 1" Unibit Wire Strip/Crimp Tool Safety Goggles Marking Utensil Measuring Scale Scissors Plastic Trim Removal Tool 10mm Socket with Ratchet Page 2 of 17... - Page 3 INSTALLATION PROCEDURE Disconnect vehicle's negative (-) battery cable. Use #2 phillips screwdriver to remove (2) screws located in overhead console sunglass bin. Sunroof Non-Sunroof Pull overhead console down to remove. Disconnect harness and set overhead console aside. Non-Sunroof Sunroof Use #2 phillips screw driver to remove sun visor hook base. Repeat this step for both driver and passenger side. Headliner clip will break if...
- Page 4 INSTALLATION PROCEDURE NON-SUNROOF ONLY: (For SUNROOF skip to step 7.) a. Remove screw cover at left side of driver side sun visor. Use #2 phillips screw driver to remove driver side visor. Disconnect vanity mirror light. b. Use plastic trim removal tool to open screw cover on driver side A-pillar trim and remove screw. Remove A-pillar trim. c.
- Page 5 INSTALLATION PROCEDURE SUNROOF: NON-SUNROOF: Safety Goggles are recommended before moving on to Safety Goggles are recommended before moving on to step 7. step 7. Use plastic trim removal tool to remove sunglass bin door Use plastic trim removal tool to remove sunglass bin from overhead console.
- Page 6 INSTALLATION PROCEDURE SUNROOF: NON SUNROOF: b. The molding containing the dome lights MUST be b. The molding containing the dome lights MUST be separated from the O/H console by carefully removing separated from the O/H console by carefully removing the 4 screws using a #1 Phillips screwdriver. Disengage the 4 screws using a #1 Phillips screwdriver.
- Page 7 INSTALLATION PROCEDURE SUNROOF: NON SUNROOF: Please skip to page 17 step 25 and cut out clip hole template before proceeding to step 9-c. Please skip to page 17 step 25 and cut out clip hole template before proceeding to step 9-c. When marking vertical lines with UIB, the clear lens may pop off.
- Page 8 INSTALLATION PROCEDURE SUNROOF: NON SUNROOF: f. Drill same hole with 7/32" drill bit with hex head You must use protective tape on front of sunglass bin opening to prevent damage from drill. attached to driver extension. Repeat for second clearance hole. d.
- Page 9 INSTALLATION PROCEDURE SUNROOF: NON-SUNROOF: j. Replace the dome light molding back into its original f. Replace the dome light molding back into its original position and secure in place using the 4 screws. position and secure in place using the 4 screws. Caution: Use only a hand screwdriver (#1 Phillips) Caution: Use only a hand screwdriver (#1 Phillips) to tighten the screws.
- Page 10 INSTALLATION PROCEDURE SUNROOF: NON-SUNROOF: b. Carefully bend passenger side bracket in overhead console area to give clearance. b. Peel backing from tape on module box and mount c. Remove center metal bracket. securely to roof to the rear of center metal bracket Use caution to avoid in overhead console opening.
- Page 11 INSTALLATION PROCEDURE SUNROOF: NON-SUNROOF: Accessory Power Wiring Connections Accessory Power Wiring Connections a. Cut black-shielded-yellow wire to length, a. Route black-shielded-yellow accessory wire approximately 200mm (8") long. Remove an through headliner and down A-pillar to fuse panel on additional 25mm (1") of shielding from end of knee bolster cover.
- Page 12 INSTALLATION PROCEDURE SUNROOF: NON-SUNROOF: d. Using Scotchlok #558 connect black-shielded-yellow e. Using Scotchlok #558 connect black-shielded-yellow accessory wire to pin 3 (gray wire) in sunroof motor accessory wire to pin 9 (blue wire w/silver bands) on (gray) connector R38. the front side of the I/P junction box in D connector. e.
- Page 13 INSTALLATION PROCEDURE SUNROOF: NON-SUNROOF: Constant Power & Ground Wiring Connections Constant Power & Ground Wiring Connections a. Clip tape to expose 50mm (2") a. Clip tape to expose 50mm (2") of wires on the overhead of wires on the overhead Expose 50mm console map lamp wire...
- Page 14 INSTALLATION PROCEDURE SUNROOF: NON-SUNROOF: Routing Wires Routing Wires a. Secure ALL (3) excess wires with tie straps to a. Secure ONLY red and black wires to main harness main harness with tie strap. with tie strap. b. Position remaining harness in front of foam above headliner and over metal bracket on driver side.
- Page 15 INSTALLATION PROCEDURE ALL STYLES: Route white connector from main harness through 25mm (1") hole on back side of console. Plug white connector into UIB-Door assembly. Make sure connector locks in place. Reconnect negative (-) battery terminal. Turn the ignition to ON position. The operating buttons on the UIB assembly will illuminate. Allow 5 seconds for the system to self-check.
- Page 16 INSTALLATION PROCEDURE Reinstall in reverse order all remaining trim pieces removed during installation. Sunroof: driver and passenger sun visor hook bases Non sunroof: A-pillar trim, knee bolster fuse panel door, driver and passenger sun visor hook bases, and driver sun visor. Check function for all that apply: Map lamps, Dome Lamps, Mirror, Sunroof.
- Page 17 INSTALLATION PROCEDURE ALL STYLES: This step needs to be completed for page 7 step 9-c. a. Cut out template along solid out side line with scissors. Make sure to follow line and not over cutting. b. Fold template 90º on dotted line with writing facing up. c.
