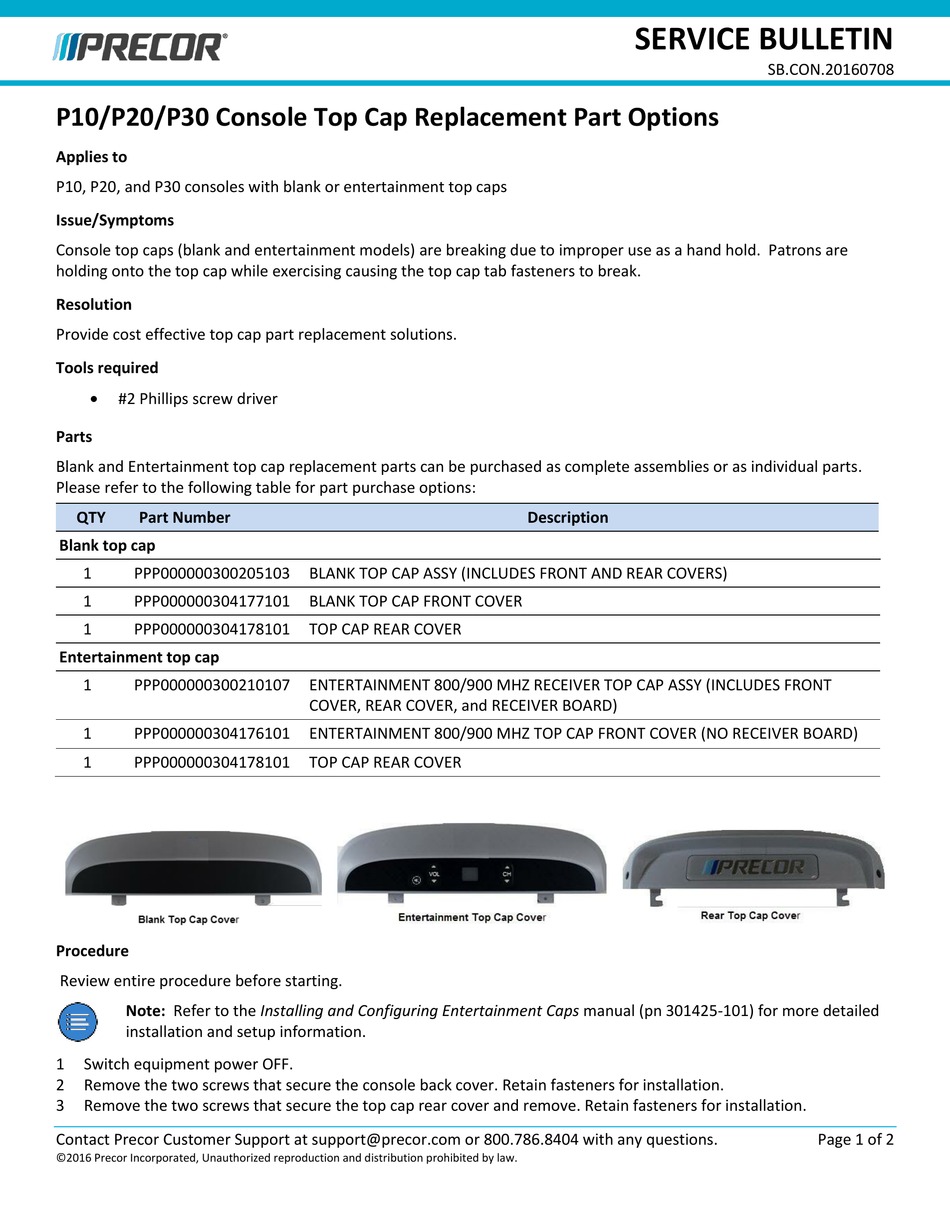

Precor P10 Service Bulletin

P10/P20/P30 Console Top Cap Replacement Part Options

Applies to

P10, P20, and P30 consoles with blank or entertainment top caps

Issue/Symptoms

Console top caps (blank and entertainment models) are breaking due to improper use as a hand hold. Patrons are
holding onto the top cap while exercising causing the top cap tab fasteners to break.

Resolution

Provide cost effective top cap part replacement solutions.

Tools required


#2 Phillips screw driver

Parts

Blank and Entertainment top cap replacement parts can be purchased as complete assemblies or as individual parts.
Please refer to the following table for part purchase options:
QTY Part Number
Blank top cap
1 PPP000000300205103
1 PPP000000304177101
1 PPP000000304178101

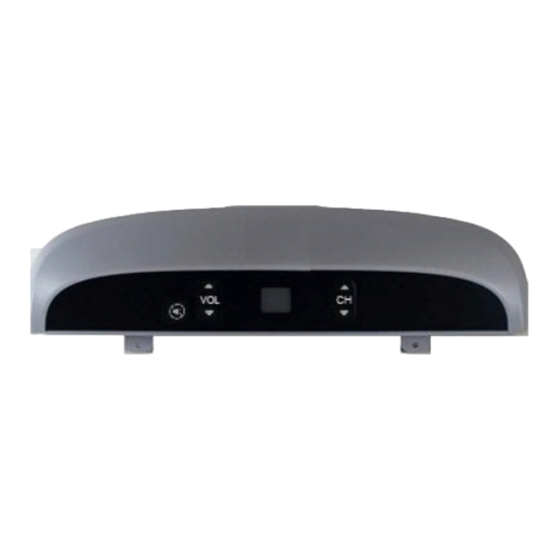

Entertainment top cap
1 PPP000000300210107
1 PPP000000304176101
1 PPP000000304178101

Procedure

Review entire procedure before starting.
Note: Refer to the Installing and Configuring Entertainment Caps manual (pn 301425-101) for more detailed
installation and setup information.
1 Switch equipment power OFF.
2 Remove the two screws that secure the console back cover. Retain fasteners for installation.
3 Remove the two screws that secure the top cap rear cover and remove. Retain fasteners for installation.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with any questions.
©2016 Precor Incorporated, Unauthorized reproduction and distribution prohibited by law.
BLANK TOP CAP ASSY (INCLUDES FRONT AND REAR COVERS)
BLANK TOP CAP FRONT COVER
TOP CAP REAR COVER
ENTERTAINMENT 800/900 MHZ RECEIVER TOP CAP ASSY (INCLUDES FRONT
COVER, REAR COVER, and RECEIVER BOARD)
ENTERTAINMENT 800/900 MHZ TOP CAP FRONT COVER (NO RECEIVER BOARD)
TOP CAP REAR COVER
SERVICE BULLETIN
Description
SB.CON.20160708
Page 1 of 2
