Hillsdale Furniture 10410-117496 Quick Start Manual

Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all components are
in proper posi�on, �ght and free from damage. Keep this assembly instruc�on for future reference. Adult assembly is required. The product of Hillsdale Furniture,
LLC is designed for residen�al use only. Customer Service Phone Number: 502-562-0000
CODE QTY
1 20 1/4"*15 Allen Bolts
2 20 Φ6.5*1.5 Spring Washers
3 20 Φ13*Φ6.5*1.5 Flat Washers
4 1 4*4 Allen Wrench
• Do not let any sharp objects touch or rub the surface of the product.
• When assembling, do not let children play around the working area.
• Please confirm all parts are correct before star�ng the assembly process.
• Do not �ghten all bolts and screws completely un�l the en�re unit has been assembled and set up.
• Be careful if using power tools as they can over �ghten screws and strip threads.
CARE & MAINTENANCE: The touch of a so� cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing, as they may
cause damage to the finish. Periodic checks are recommended to make sure that all hardware is securely �ghtened.

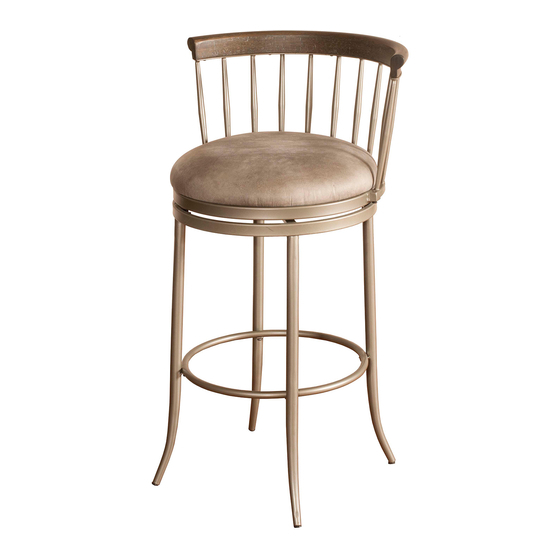

Cortez Swivel Stool
Model #10410-117496 (4074-826) Counter Stool
Model #10410-117497 (4074-830) Barstool
HARDWARE
A
B
C
WARNING
CODE QTY COMPONENTS
A 1 Seat
C 4 Legs
C
C
C
D
Date: 07-10-2017
Page 1 of 2
CODE QTY COMPONENTS
B 1 Seat Base
D 1 Support Ring
HDFBP
