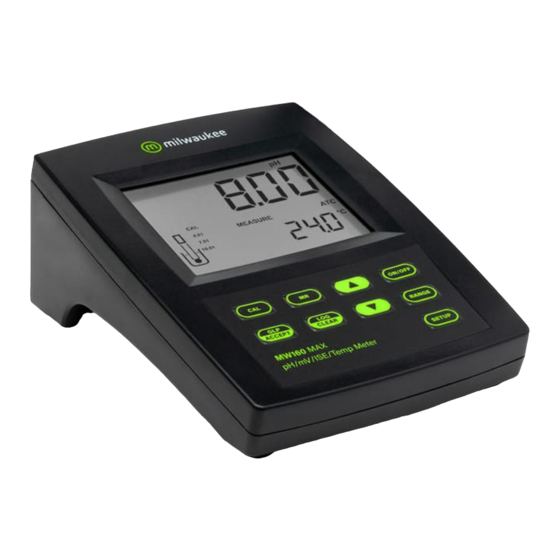

Milwaukee MW160 MAX Instruction Manual

Ph/mv/ ise/temperature bench meter
Hide thumbs Also See for MW160 MAX:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
MW160 MAX
pH / mV / ISE / Temperature
Bench Meter
SATISFACTION
GUARANTEED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MW160 MAX and is the answer not in the manual?

Questions and answers

Related Manuals for Milwaukee MW160 MAX

Summary of Contents for Milwaukee MW160 MAX

  • Page 1 INSTRUCTION MANUAL MW160 MAX pH / mV / ISE / Temperature Bench Meter SATISFACTION GUARANTEED...
  • Page 2 This instruction manual will provide you the necessary information for correct use of the meter. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Milwaukee Instruments Inc., Rocky Mount, NC 27804 USA.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. PRELIMINARY EXAMINATION ...........................5 2. INSTRUMENT OVERVIEW ............................6 3. SPECIFICATIONS ................................7 4. FUNCTIONAL DESCRIPTION .............................9 5. PROBE DESCRIPTION ...............................12 6. GENERAL OPERATIONS .............................14 6.1. POWER CONNECTION & BATTERY MANAGEMENT ................14 6.2. MOUNTING THE ELECTRODE HOLDER ....................14 6.3. CONNECTING THE PROBES .........................15 6.4.
  • Page 4 4 MW160 Bench Meter 13. PC CONNECTION ................................ 37 13.1. USING MI5200 PC APPLICATION ......................37 13.2. SENDING COMMANDS FROM PC ......................37 14. TROUBLESHOOTING..............................39 15. ACCESSORIES ................................40 CERTIFICATION ...................................41 RECOMMENDATION .................................41 WARRANTY ..................................42...

  • Page 5: Preliminary Examination 5

    PRELIMINARY EXAMINATION 5 1. PRELIMINARY EXAMINATION Each bench meter is delivered in a cardboard box and is supplied with: y MA917B/1 Double junction refillable pH electrode y MA831R Stainless steel temperature probe y M10004 pH 4.01 buffer solution (sachet) y M10007 pH 7.01 buffer solution (sachet) y M10010 pH 10.01 buffer solution (sachet) y M10016 Electrode cleaning solution (sachet) y MA9315 Electrode holder...

  • Page 6: Instrument Overview

    6 MW160 Bench Meter 2. INSTRUMENT OVERVIEW MW160 is a compact and versatile bench meter that can measure up to four different parameters — pH, ORP, ISE (directly in ppm) and temperature. The main operating modes are setup, calibration, measurement and logging. pH calibration can be performed in up to 3 points (using a selection of 7 standard calibration buffers), to improve measurement reliability, even when testing samples with wide differences in pH.

  • Page 7: Specifications 7

    SPECIFICATIONS 7 3. SPECIFICATIONS –2.00 to 16.00 pH ±699.9 mV / ±2000 mV Range 0.001 to 19999 ppm Temp. –20.0 to 120.0 °C (–4.0 to 248.0 °F) 0.01 pH 0.1 mV / 1 mV 0.001 (0.001 to 9.999) ppm Resolution 0.01 (10.00 to 99.99) ppm 0.1 (100.0 to 999.9) ppm 1 (1000 to 19999) ppm Temp.
  • Page 8 8 MW160 Bench Meter Probe Specifications pH range 0 to 14 pH Temperature range 0 to 70 °C (32 to 158 °F) Operating temperature 20 to 40 °C (68 to 104 °F) Reference electrolyte KCl 3.5M Reference junction Ceramic, single pH electrode Reference type Double, Ag/AgCl...

  • Page 9: Functional Description 9

    FUNCTIONAL DESCRIPTION 9 4. FUNCTIONAL DESCRIPTION Front Panel 1. Liquid Crystal Display (LCD) 2. CAL key, to enter / exit Calibration mode 3. MR key, to enter / exit Memory Recall mode 4. GLP/ACCEPT key, to enter GLP or to confirm selected action 5.
  • Page 10 10 MW160 Bench Meter Rear Panel 1. USB socket 2. RS232 socket 3. Power supply socket 4. RCA connector for temperature probe 5. BNC electrode connector 6. Reference electrode connector...
  • Page 11 FUNCTIONAL DESCRIPTION 11 Display Description 1. Measurement units 2. Status and calibration information 3. CAL tag and pH calibration buffers 4. OPEN tag 5. Probe symbol 6. Mode tags (GLP, SETUP, LOG, MEASURE) 7. ACCEPT tag 8. First LCD line, measurement readings 9.

  • Page 12: Probe Description

    12 MW160 Bench Meter 5. PROBE DESCRIPTION MA917B/1 for pH measurement: y Double junction design, reduces risk of clogging with the reference cell physically separated from the intermediate electrolyte. y Refillable, with MA9011 3.5M KCl. This solution is silver free. Silver can cause silver precipitate to form at the junction resulting in clogging.
  • Page 13 PROBE DESCRIPTION MA831R for temperature measurement and automatic temperature compensation (ATC): y Made of stainless steel for corrosion resistance. y Used in conjunction with the pH electrode to utilize the instrument’s ATC capability. 1. Cable 2. Handle 3. Stainless steel tube...

  • Page 14: General Operations

    14 MW160 Bench Meter 6. GENERAL OPERATIONS 6.1. POWER CONNECTION & BATTERY MANAGEMENT MW160 can be powered from the supplied 12 VDC adapter. The auto-off feature turns the meter off after 20 minutes of non-use. At power on the instrument performs an auto-diagnostic test. All LCD  segments are displayed for a few seconds.

  • Page 15: Connecting The Probes

    GENERAL OPERATIONS 15 y Position the meter with the display facing up. y Take the electrode holder (7) and insert it into the pin (5). The pin securely holds the electrode holder in place. y For increased arm rigidity, tighten the metal knobs (8) on both sides. 6.3.

  • Page 16: Electrode Care & Maintenance

    16 MW160 Bench Meter 6.4. ELECTRODE CARE & MAINTENANCE Calibrating & Conditioning Maintaining a pH electrode is critical to ensure proper and reliable measurements. Frequent two- or three-point calibrations are recommended to ensure accurate and repeatable results. Prior to using the electrode for the first time: 1.
  • Page 17 The slope percentage is referenced to the ideal slope value at 25 °C. Milwaukee Instruments recommends that the offset does not exceed ±30 mV and that the slope percentage is between 85–105%.

  • Page 18: Setup

    18 MW160 Bench Meter 7. SETUP To configure the meter settings, modify default values or set measurement parameters: y Press and hold SETUP for about 3 seconds to enter Setup mode. y Use the keys to navigate the menu (view parameters). y Press CAL to enter Edit mode (modify parameters).
  • Page 19 SETUP 19 Item Description Options Default DATE Current date in MM.DD. Y YYY format 01.01.2000 to 12.31.2099 01.01.2005 Beep status bEEP When enabled, an acoustic signal is heard ON or OFF every time a key is pressed. 600, 1200, 2400, 4800 or bAud Baud rate for serial communication 2400...

  • Page 20: Preparation

    20 MW160 Bench Meter 8. pH 8.1. PREPARATION Up to three-point calibration can be performed with a choice of 7 standard buffers (1.68, 4.01, 6.86, 7.01, 9.18, 10.01 and 12.45 pH). 1. Prepare two clean beakers. One beaker is for rinsing and one for calibration. 2.
  • Page 21 pH 21 The calibrated value is displayed in the first LCD line, the second expected buffer value in the second LCD line. The tag of the buffer already calibrated is listed under the CAL tag. For one-point calibration, press CAL to exit calibration. The instrument stores the calibration and returns to Measurement mode.

  • Page 22: Measurement

    22 MW160 Bench Meter 8.3. MEASUREMENT Make sure the instrument has been calibrated before taking pH measurements. 1. Remove the probe protective cap and place the tip approximately 4 cm (1 ½”) into the sample. It is recommended to wait for the sample and the pH probe to reach the same temperature.

  • Page 23: Warnings & Messages

    pH 23 8.4. WARNINGS & MESSAGES y “CALIBRATION EXPIRED” message is displayed when the meter is not calibrated or the set calibration time-out has elapsed. y “WRONG BUFFER WRONG PROBE” message is displayed blinking during calibration when the difference between the pH reading and selected buffer value is significant. Check if correct calibration buffer has been used.

  • Page 24: Orp

    9.2. CALIBRATION mV Calibration The MW160 is factory calibrated for mV. Milwaukee’s ORP electrodes are interchangeable and no mV calibration is needed when they are replaced. If the mV measurements are inaccurate, mV recalibration should be performed. For an accurate recalibration contact Milwaukee Technical Service.

  • Page 25: Measurement

    ORP 25 3. When the absolute reading is stable and in the measurement range, the READY and ACCEPT tags are displayed blinking. 4. Press GLP/ACCEPT to confirm the calibration. The instrument returns to Measurement mode, Rel mV range. Clear Calibration To return to mV measurement range, clear the Rel mV calibration. 1.

  • Page 26: Warnings & Messages

    26 MW160 Bench Meter 9.4. WARNINGS & MESSAGES y When the reading is out of range during a Rel mV calibration, the absolute mV value and “WRONG” are displayed blinking. Check if correct standard solution has been used. Refresh the probe following the description in ELECTRODE CARE &...

  • Page 27: Ise 27

    ISE 27 10. ISE 10.1. PREPARATION One or two-point calibration can be performed with a choice of 6 standard solutions (0.01, 0.1, 1, 10, 100 and 1000 ppm). 1. In Setup menu select the proper ion charge (see SETUP section for details). Note: When “UndF”...
  • Page 28 28 MW160 Bench Meter 3. When the reading is stable and close to the selected standard, the READY and ACCEPT tags are displayed blinking. Press GLP/ACCEPT to confirm calibration. For one-point calibration, press CAL to exit calibration. The instrument stores the calibration and returns to Measurement mode.

  • Page 29: Measurement

    ISE 29 Clear Calibration 1. Press CAL to enter Calibration mode. 2. Press LOG/CLR. “CLr CAL” is displayed shortly, then the instrument returns to Measurement mode. 10.3. MEASUREMENT If necessary, press RANGE until the display changes to ISE measurement range. Remove the probe protective cap and immerse the tip of the probe 4 cm (1 ½”) into the sample.

  • Page 30: Logging

    30 MW160 Bench Meter 11. LOGGING The instrument can memorize up to 50 log records for each measurement range (pH, ORP and ISE). Logging Current Data 1. Press RANGE from the measurement screen and select required measurement range. 2. Press LOG/CLR to log the current measurement. The LOG tag, current date (MM.DD), the record number and the number of free log space are displayed for a few seconds, then the instrument returns to Measurement mode.
  • Page 31 LOGGING 31 A complete set of information is stored along with the measured value. Press RANGE to view the parameters: y The mV value in the first LCD line and the temperature in the second LCD line. y The date: month and day in the first LCD line and the year in the second LCD line. DATE tag is displayed.
  • Page 32 32 MW160 Bench Meter y The “dEL” message in the first LCD line and the record number in the second LCD line. ACCEPT tag is displayed blinking. To delete logged data: 1. Press the key to select next or previous record to be deleted. 2.
  • Page 33 LOGGING 33 y If MR is pressed and no logged data are stored, “no rEC” message is displayed blinking for the selected measurement range.

  • Page 34: Good Laboratory Practice (Glp)

    34 MW160 Bench Meter 12. GOOD LABORATORY PRACTICE (GLP) GLP allows the user to store and recall calibration data and probe status. Correlating readings with specific calibrations ensures uniformity and consistency. pH and ISE calibration data is stored automatically after a successful calibration. 1.
  • Page 35 GOOD LABORATORY PRACTICE (GLP) 35 y The slope value in the first LCD line and the offset in the second LCD line y The pH calibration buffers on consecutive LCDs in calibrating order Notes: “OLd” message is displayed beneath the pH value when the buffer was not used during last calibration.
  • Page 36 36 MW160 Bench Meter y The instrument identification code ISE Information y Date (MM.DD. Y YYY) of the last calibration y The slope value in the first LCD line and the offset in the second LCD line y The calibration standards in calibration order y The nstrument identification code Notes: “OLd”...

  • Page 37: Pc Connection 37

    13. PC CONNECTION 13.1. USING MI5200 PC APPLICATION The logged data can be transferred to a PC via the Milwaukee Instruments MI5200 Windows compatible application using the RS232 or USB serial interface. The software is available for download at http://www.milwaukeeinst.com. Search for the product code and click on it.
  • Page 38 38 MW160 Bench Meter The instrument will answer for this command with: <STX> <answer> <ETX> where: <STX> is 02 ASCII code character (start of text) <ETX> is 03 ASCII code character (end of text) <answer>: <ACK> is sent for a recognized command <CAN>...

  • Page 39: Troubleshooting

    LCD tags displayed Check the keyboard. continuously at One of the keys is blocked If the error persists, contact startup Milwaukee Technical Service. Restart the meter. “Er0, Er1, Er2” message Internal error If error persists, contact at start up Milwaukee Technical Service.

  • Page 40: Accessories

    40 MW160 Bench Meter 15. ACCESSORIES SE-300 Double junction ORP platinum probe MA917B/1 Combination pH electrode, glass body, refillable MA924B/1 ORP probe, glass body, refillable MA831R Stainless steel temperature probe MA9001 pH 1.68 buffer solution (230 mL) MA9004 pH 4.01 buffer solution (230 mL) MA9006 pH 6.86 buffer solution (230 mL) MA9007...

  • Page 41: Certification

    CERTIFICATION Milwaukee Instruments conform to the CE European Directives. Disposal of Electrical & Electronic Equipment. Do not treat this product as household waste. Hand it over to the appropriate collection point for the recycling of electrical and electronic equipment. Please note: proper product disposal prevents potential negative consequences for human health and the environment.

  • Page 42: Warranty

    Damage due to accidents, misuse, tampering or lack of prescribed maintenance is not covered by warranty. If service is required, contact your local Milwaukee Instruments Technical Service. If the repair is not covered by the warranty, you will be notified of the charges incurred.
  • Page 43 Milwaukee Instruments reserves the right to make improvements in design, construction and appearance of its products without advance notice.
  • Page 44 THANK YOU FOR CHOOSING Sales and Technical Service Contacts: Milwaukee Electronics Kft. Alsó-kikötő sor 11C H-6726 Szeged - HUNGARY tel: +36 62 428 050 fax: +36 62 428 051 www.milwaukeeinst.com e-mail: sales@milwaukeeinst.com Milwaukee Instruments, Inc. 2950 Business Park Drive Rocky Mount, NC 27804 USA...
