E2S STExS1 Series Instruction Manual

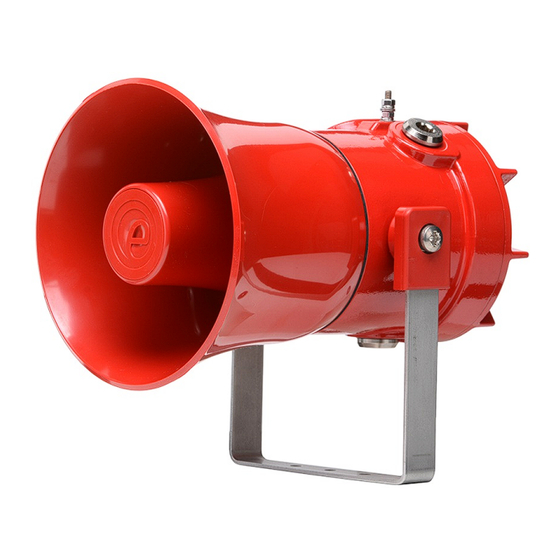

Alarm horn sounder for use in flammable gas and dust atmospheres
Hide thumbs Also See for STExS1 Series:

Advertisement

Table of Contents

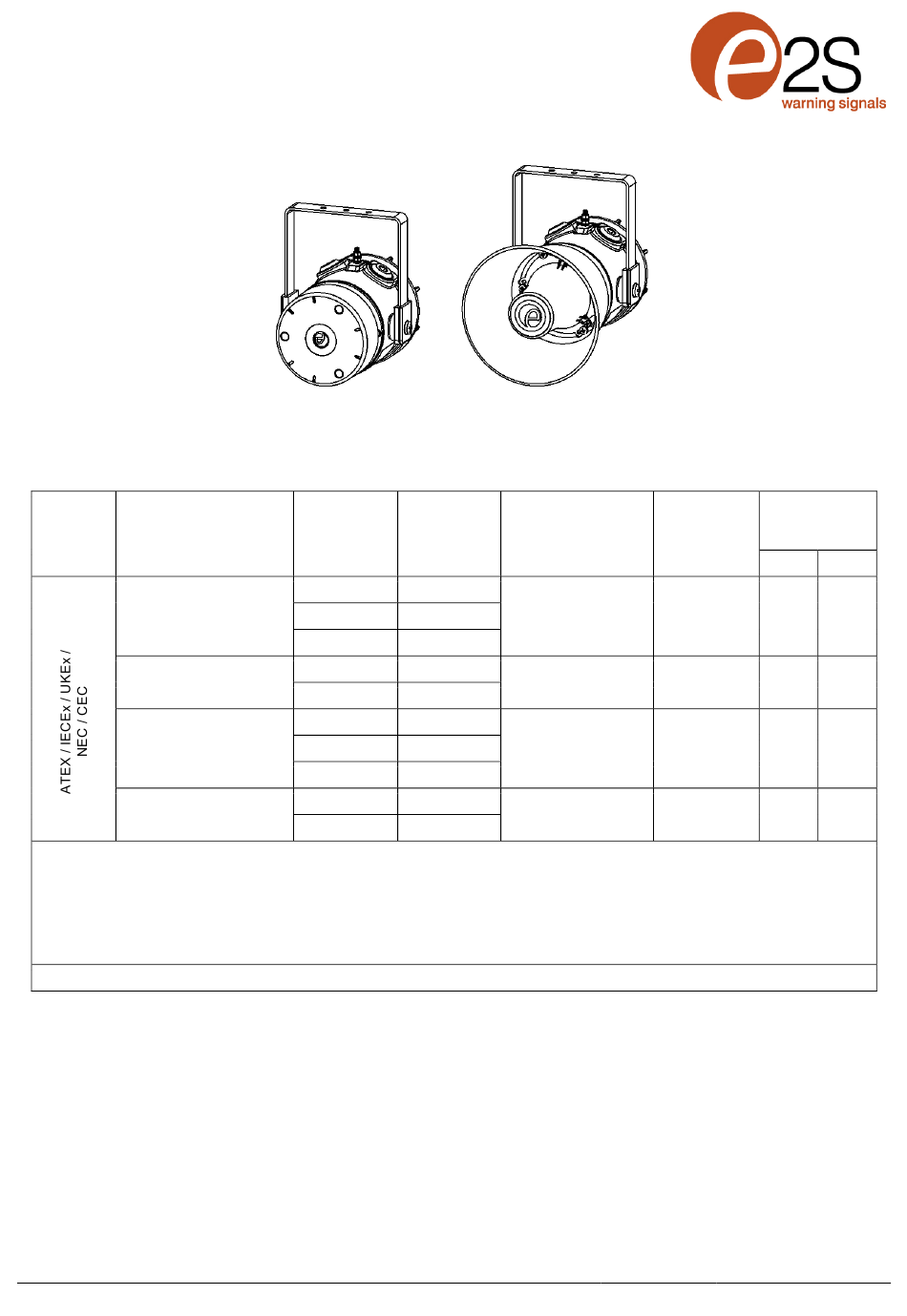

INSTRUCTION MANUAL
STExS1
Alarm Horn Sounder
For use in Flammable Gas and Dust Atmospheres
1) Product Table
Standards
Model
STExS1RDC024
STExS1RAC230
STExS1FDC024
STExS1FAC230
*Max = Tone 4
†
Nom. = Tone 44
The table shows the input current taken by the various sounders.
The current levels shown above are for the 440Hz Continuous tone @ nominal input voltage.
Nominal current at nominal voltage.
Max rated current at worst case supply voltage.
Table 1: Electrical Ratings.
Ensure the system power supply is capable of providing the maximum current required for all beacons. Review associated cable size,
length and quantity of beacons on each circuit.
E2S Warning Signals
Impress House, Mansell Road, Acton, London W3 7QH
Document No. D199-00-001-IS
STExS1R
Nominal
Nominal
Input Voltage
Input Current
12Vdc
221mA
24Vdc
185mA
48Vdc
115mA
115Vac
73mA
230Vac
48mA
12Vdc
221mA
24Vdc
185mA
48Vdc
115mA
115Vac
73mA
230Vac
48mA
Issue 10
06-06-2024
STExS1F
Voltage Range
Current
11.5-54Vdc
100-240Vac 50/60Hz
11.5-54Vdc
100-240Vac 50/60Hz
www.e2s.com
Sound
Pressure Level
Max.
dB(A)
Max*
Nom
221mA
110
105
80mA
110
105
221mA
115
110
80mA
115
110
Tel: +44 (0)208 743 8880
Sheet 1 of 8
.†

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STExS1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for E2S STExS1 Series

Summary of Contents for E2S STExS1 Series

  • Page 1 Ensure the system power supply is capable of providing the maximum current required for all beacons. Review associated cable size, length and quantity of beacons on each circuit. E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No.
  • Page 2 Class 1 Zone 1 AEx db IIC T5 Gb Ta -50°C to +70°C DC024 Class 1 Zone 1 AEx db IIC T6 Gb Ta -50°C to +65°C Products may have further approvals, see E2S website for AC230 further details. Installation must be carried out in compliance with the 3.1.

  • Page 3: Special Conditions For Safe Use

    (ATEX / IECEx & UKEx only) Group IIIA Combustible Flyings Group IIIB Non-conductive Dust Group IIIC Conductive Dust E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D199-00-001-IS Issue 10 06-06-2024...

  • Page 4: Installation Requirements

    Tighten the M4 grub screw. 8mm. Wires may be fitted securely with crimped ferrules. Installation Requirements 7.1 Installation Standards Compliance Figure 4: Wire Preparation. E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D199-00-001-IS...
  • Page 5 They must be suitable for the type of cable being in size. used and also meet the requirements of the current installation standards for NEC / CEC. E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No.

  • Page 6: Tone Selection

    Stage 1 DIP switch setting. Following table (Table 4) is a summary of the wiring options. E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No.
  • Page 7 Single Stage Configuration Three/Four Stage Configuration Two/Three Stage Voltage Free Activation Configuration Table 4: Summary of Wiring Options. E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D199-00-001-IS Issue 10...

  • Page 8: Maintenance, Overhaul And Repair

    2.4 x 10 Proof Test Interval Up to 1 year Figure 11: End of Line Resistor placement – Optional 12-Way Terminal Module. E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D199-00-001-IS...
  • Page 10 ACN0153...
  • Page 11 ACN0153...
  • Page 12 ACN0153...
  • Page 13 STExS2 AC SOUNDER WIRING DIAGRAMS WRITTEN CONSENT. IMPRESS HOUSE 19/01/2022 B.ISARD STANDARDS MANSELL ROAD EUROPEAN SAFETY SYSTEMS LTD. ACTON DRAWING NUMBER AS PER LATEST DATE OF ISSUE SHOWN ABOVE LONDON W3 7QH SCALE SHEET ALTERNATIVE MATERIAL APPROVED DATE WWW.E2S.COM D190-06-005 NTS 1 19/01/2022 R.N.POTTS...

  • Page 14: Eu Declaration Of Conformity

    Notified Body No.: 0539  Borupvang 5A, 2750 Ballerup, Denmark  EU‐type Examination Certificate (Module B):  DEMKO 16ATEX1466X  Notified Body for Quality Assurance Notification / Conformity to EU‐type  Sira Certification Service  based on  Notified Body No.: 2813   quality assurance of the production process (Module D):  CSA Group Netherlands B.V, Utrechtseweg 310, 6812 AR, Arnhem, Netherlands  Quality Assurance Notification (Module D):  SIRA 05 ATEX M342  Provisions fulfilled by the equipment:  II 2G Ex db IIC T6…T3 Gb  II 2D Ex tb IIIC T82°C…T137°C Db  IP6X Dust Protection to EN60079‐0 / EN60079‐31  Standards applied:  EN IEC 60079‐0: 2018  EN 60079‐1: 2014  EN 60079‐31: 2014  Directive 2014/30/EU: Electromagnetic Compatibility Directive (EMC)   Standards applied:  EN 61000‐6‐1:2007  EN 61000‐6‐2:2005  EN 61000‐6‐3:2007 / A1:2011 / AC: 2012  EN 61000‐6‐4:2007 / A1: 2011  Directive 2011/65/EU: Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS)  The product and all the components contained within it are in accordance with the restriction of the use of hazardous substances in electrical and electronic    equipment, including amendment by Directive 2015/863/EU. Regulation (EC) 1907/2006: Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH)  The product and all the components contained within it are free from substances of very high concern.  Other Standards and Regulations  EN 60529:1991 / A1:2000 / A2:2013 ‐ Degrees of protection provided by enclosures (IP code) – enclosure rated IP66          E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com  DC‐070_Issue_G (STEx).docx ‐ Page 1 of 2 ‐ QAF_252_Issue_5...
  • Page 15     EU Declaration of Conformity              On behalf of European Safety Systems Ltd., I declare that, on the date the equipment accompanied by this declaration is placed on the market, the equipment  conforms with all technical and regulatory requirements of the above listed directives, regulations and  standards.    This Declaration is issued under the sole responsibility of the manufacturer.        Martin Streetz  Document No.:  DC‐070_Issue_G  Quality Assurance Manager  Date and Place of Issue:  London, 03/12/2021    E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com  DC‐070_Issue_G (STEx).docx ‐ Page 2 of 2 ‐ QAF_252_Issue_5...
  • Page 16 Unit 1‐3 Horizon Kingsland Business Park, Wade Road,  Basingstoke, Hampshire RG24 8AH UK  UK‐type Examination Certificate (Module B):  UL21UKEX2019X  Notified Body for Quality Assurance Notification / Conformity to EU‐type  Sira Certification Service  based on  Notified Body No.: 0518  quality assurance of the production process (Module D):  Rake Lane, Eccleston, Chester CH4 9JN, UK  Quality Assurance Notification (Module D):  CSAE 22UKQAN0046  Provisions fulfilled by the equipment:  II 2G Ex db IIC T6…T3 Gb  II 2D Ex tb IIIC T85°C…T137°C Db  IP6X Dust Protection to EN60079‐0 / EN60079‐31  Standards applied:  EN IEC 60079‐0: 2018  EN 60079‐1: 2014  EN 60079‐31: 2014  Directive 2014/30/EU: Electromagnetic Compatibility Directive (EMC)   Standards applied:  EN 61000‐6‐1:2007  EN 61000‐6‐2:2005  EN 61000‐6‐3:2007 / A1:2011 / AC: 2012  EN 61000‐6‐4:2007 / A1: 2011  Directive 2011/65/EU: Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS)  The product and all the components contained within it are in accordance with the restriction of the use of hazardous substances in electrical and electronic    equipment, including amendment by Directive 2015/863/EU. Regulation (EC) 1907/2006: Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH)  The product and all the components contained within it are free from substances of very high concern.  Other Standards and Regulations  EN 60529:1991 / A1:2000 / A2:2013 ‐ Degrees of protection provided by enclosures (IP code) – enclosure rated IP66          E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com  DC‐100_Issue_A (STEx)‐ Page 1 of 2 ‐ QAF_252_Issue_5...
  • Page 17     UKCA Declaration of Conformity              On behalf of European Safety Systems Ltd., I declare that, on the date the equipment accompanied by this declaration is placed on the market, the equipment  conforms with all technical and regulatory requirements of the above listed directives, regulations and  standards.    This Declaration is issued under the sole responsibility of the manufacturer.        Martin Streetz  Document No.:  DC‐100_Issue_A  Quality Assurance Manager  Date and Place of Issue:  London, 24/02/2022    E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com  DC‐100_Issue_A (STEx) ‐ Page 2 of 2 ‐ QAF_252_Issue_5...
  • Page 18 Page left Intentionally blank...
  • Page 19 Page left Intentionally blank...
  • Page 20 Page left Intentionally blank...
