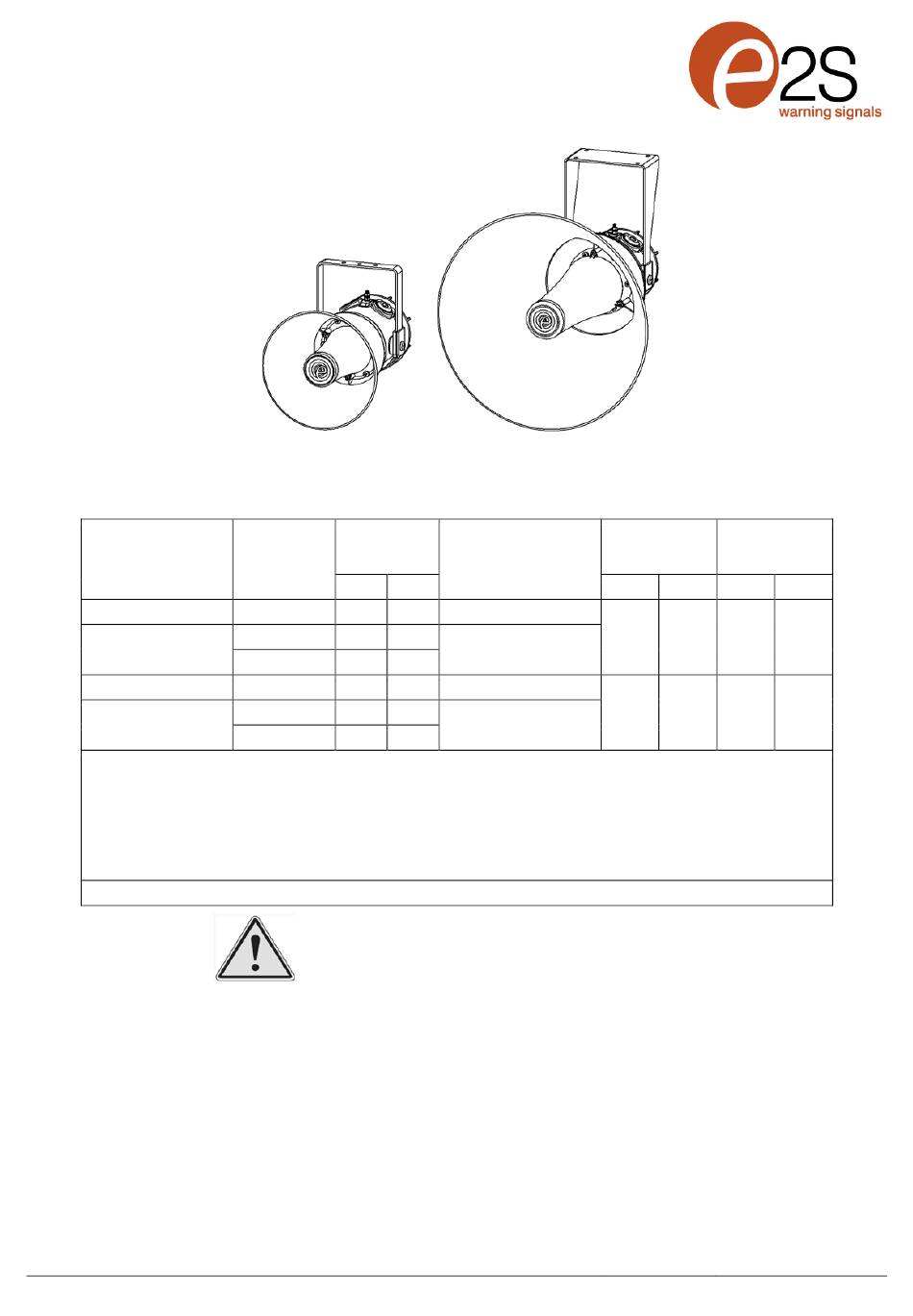

INSTRUCTION MANUAL
STExS2
Alarm Horn Sounder with relay / telephone initiation
For use in Flammable Gas and Dust Atmospheres
1. Product Table
Unit Type Code
STExS2FDC024-T
STExS2FAC230-T
STExS2HDC024-T
STExS2HAC230-T
*Max = Tone 4
†
Nom. = Tone 44
The table shows the input current taken by the various sounders.
The current levels shown above are for the 440Hz Continuous tone @ nominal input voltage.
Nominal current at nominal voltage.
*Special 12Vdc version is available – Contact E2S Sales.
≠
Please note that factory settings for STExS2F units is P2 & STExS2H units is P3
Table 1: Electrical Ratings.
2.
Warnings
• DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS
PRESENT.
• POTENTIAL ELECTROSTATIC CHARGING HAZARD.
• ALL ENTRIES M20 X 1.5MM.
• USE SUITABLE RATED CABLES AND CABLE GLANDS
IF TEMPERATURE EXCEEDS AS PER STANDARDS
INDICATIONS BELOW.
FOR ATEX / IECEx
& UKEx
70ºC AT ENTRY OR 80ºC AT BRANCHING POINT.
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D199-00-691-IS
STExS2F
Nominal
Nominal
Input Current
Input Voltage
≠
P2
24Vdc
324mA 740mA
115Vac
125mA 282mA
230Vac
78mA
167mA
24Vdc
324mA 740mA
115Vac
125mA 282mA
230Vac
78mA
167mA
STANDARDS:
Issue 1
07-11-2023
STExS2H
Voltage Range
≠
P3
18-30Vdc
100-240Vac 50/60Hz
18-30Vdc
100-240Vac 50/60Hz
Sound
Sound
Pressure Level
Pressure Level
≠
≠
P2
, dB(A)
P3
, dB(A)
.†
Max*
Nom
Max*
120
115
123
124
119
127
www.e2s.com
Tel: +44 (0)208 743 8880
.†
Nom
118
122
Sheet 1 of 7
