olympia electronics BS-521/1 Manual

WARRANTY

Olympia Electronics guarantees the quality, condition and operation of the goods. The period of
warranty is specified in the official catalogue of Olympia Electronics and also in the technical leaflet,
which accompanies each product. This warranty ceases to exist if the buyer does not follow the
technical instructions included in official documents given by Olympia Electronics or if the buyer
modifies the goods provided or has any repairs or re-setting done by a third party, unless Olympia
Electronics has fully agreed to them in writing. Products that have been damaged can be returned to
the premises of our company for repair or replacement, as long as the warranty period is valid.
Olympia Electronics reserves the right to repair or to replace the returned goods and to or not charge
the buyer depending on the reason of defection. Olympia Electronics reserves the right to charge or
not the buyer the transportation cost.
HEAD OFFICE
72 km. O.N.R. Thessaloniki-Katerini
nd
P.C. 60300 P.O. Box 06 Εginio Pierias Greece
www.olympia-electronics.gr
info@olympia-electronics.gr
Page 4 from 4
ΒS-521/1
OPERATION VOLTAGE
MAXIMUM AC POWER CONSUMPTION
MAXIMUM AC CURRENT CONSUMPTION
STANDBY AC CURRENT CONSUMPTION
ΒS-531
BATTERY TYPE
MAXIMUM BATTERY CURRENT CONSUMPTION
RECHARGE TIME
MINIMUM DURATION
MAXIMUM SOUND OUTPUT in1m
BEACON
ΤYPE OF APPLICATION ENVIRONMENT
MOUNTING
COVERAGE (y)
MOUNTING HEIGHT (x)
COVERAGE VOLUME CODE
COVERAGE VOLUME
FLASH RATE
FLASH COLOUR
DEGREES OF COVER PROTECTION
PRODUCED IN ACCORDANCE WITH
OPERATION TEMPERATURE RANGE
RELATIVE HUMIDITY
CONSTRUCTION MATERIAL
EXTERNAL DIMENSIONS
TYPICAL WEIGHT
GUARANTEE

GENERAL

This device is Visual Alarm Devices (VAD) for
fire detection panels that offer a strong sound
output
beacon. The strong sound and the optical
warning beacon cover many square metres.

Installation and Connection

1. First, remove the retaining screw, place a flat
blade screwdriver in the holes of the plastic
hooks and remove the plastic cover (Image 1
on page 2).
2. Remove carefully the beacon connector
(Image 2 on page 2).
3. Use the supplied mounting parts to install
the siren's base at a height of 2.4 metres
from the floor (figure 2 on page 3). Place the
plastic plugs and fasten the screws to the
mounting holes. Attention!! Make sure that the
siren's base is installed upwards as shown in
figure on page 4.
921521006_09_004
Page 1 from 4

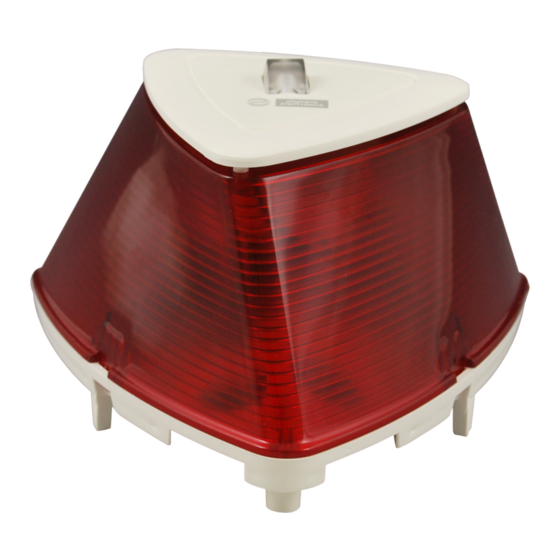

AUTONOMOUS SIREN WITH BEACON
ΤΕCHNICAL CHARACTERISTICS
@Olympiaelectro Olympia Electronics OlympiaElectronics
ΣΕΙΡΗΝΑ ΓΙΑ ΠΙΝΑΚΑ ΠΥΡΑΝΙΧΝΕΥΣΗΣ ME ΦΑΡΟ
Bayblend FR3010, transparent polycarbonate
Thank you for your trust in our products.
Olympia Electronics - European manufacturer.
4. Place the caps and make a hole in the
center using a small screwdriver. Pass through
the caps the cables to connect the device.
and an optical warning with a
5. Connect the alarm buttons with two cables
(as in Figure 1 if more than one) to the
terminal block BUTTON. Then power the siren
with 230V AC.
6. Connect the battery connector (Image 3 on
page 2) and is ready to operate.
7. To select various sound effects use the
dipswitch 1, 2 and 3 and choose the diserable
sound effect, according to table 2 on page 3.
8. For LED effect variation use the
dipswitch 4 (table 1 on page 3).
9. Reinstall the beacon connector (step
2). Refit the plastic cover until the plastic
hooks are securely attached (step 1) and
fasten the retaining screw (torque 0.6Nm).
Attention!! Make sure that the siren's cover
is installed in the correct orientation.
10. Test the device after installation.
220 - 240V AC/50-60Hz Olympia Electronics
3VA
30 mAAC
4mA AC
3.6V 1.5Ah NiMH
360mA DC
24 Hours
90 minutes
94dB (sound effect 1)
1 power LED
Τype Α
Wall
6 m around the siren at an angle of 180°
2.4m max
W-2.4-6
86.4m³ (max)
1 Hz (Switchable to 0.5 Hz)
Red
IP42C
EN 54-3, EN 54-23
o
5 to 40 C
Up to 95%
141 x 141 x 100 mm
400gr.
2 years
921521006_09_004
