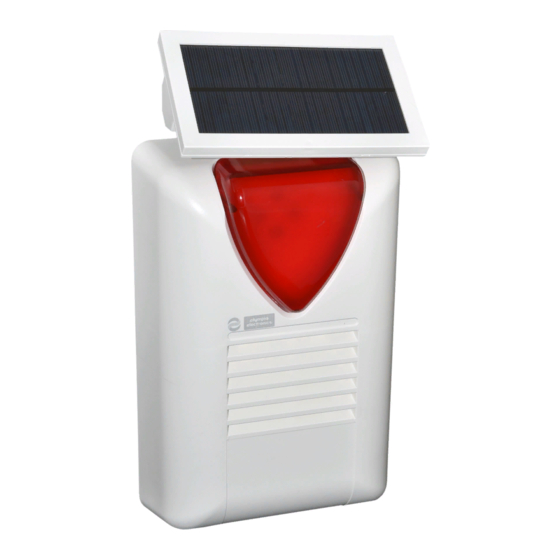

The BS-475 (white) or BS-475/B (carbon) alarm siren is used exclusively with the BS-
468/A panel. When the siren is activated, a red flashing light and a sound of 105dB
which range is 1 meter distance, are produced. Inside the device there is a tamper that
activates the siren if someone tries to remove its cover or pull the device off the wall.
The device is placed externally on a flat wall, at a height of more than 2.5 meters
and away from places or objects that can prevent the transmission of its sound. It is
recommended that the photovoltaic panel to be placed at a point where it has the
best possible visual contact with the sunlight.
ATTENTION!!! All four retaining screws must be installed.
The siren board has a LED (FLASH) jumper which can be set either in (ON) or in
(OFF) position. If the jumper is set to the (ON) position, the beacon makes a short
blink every 8 seconds in normal mode. Otherwise (jumper in OFF position) it is
turned off until an alarm is triggered. In any case it will be constantly on in sound
mode, regardless the jumper position. Also,upon arming procedure, the siren will
"flash" 3 times when the system is armed, but it will "flash" once when the system is
disarmed. This feature can be disabled from the control panel menu settings.
Flash mode from jumper and Arm-Disarm indication function are two independent
functions. Activating one of those settings will not activate the other and vice versa.
The siren sounds alarm when the BS-468/A control panel sends the
corresponding command. The beacon remains ON, as long as the sound lasts.
Page 1 of 4
Autonomous wireless siren with beacon for
the BS-468 / A burglar alarm system
TECHNICAL SPECIFICATIONS
ETSI EN 300220, EN 50130-4, EN 55022, EN 60950-1 ERC REC 70-03
Thank you for your trust in our products
Olympia Electronics - European manufacturer
INSTALLATION
INSTALLATION
BEACON
BEACON
ALARM
ALARM
Solar panels 12V / 1.4W
105 dB / 1m
6V/1.3Ah Pb (lead)
Outdoors
868 MHz
About 300m (in open area)
IP20
EN 50130-4, EN 55022, EN 60950-1
o
-10
to
60 C
Up to 90%
ABS/PC, PC (red)
188x120x360 mm.
1605 gr.
2 years (6 months for the battery )
921475000_09_009
