olympia electronics ΒS-576/L Quick Start Manual

ΒS-576/L
BEACON GENERAL PROPOSE WITH LEDs

TECHNICAL CHARACTERISTICS

OPERATION VOLTAGE
AVERAGE CONSUMPTION
LAMP
BEACON
DEGREES OF COVER PROTECTION
PRODUCED IN ACCORDANCE WITH
OPERATION TEMPERATURE RANGE
CONSTRUCTION MATERIAL
RELATIVE HUMIDITY
DIMENSIONS
TYPICAL WEIGHT
GUARANTEE
Thank you for your trust in our products
Olympia Electronics - European manufacturer

GENERAL

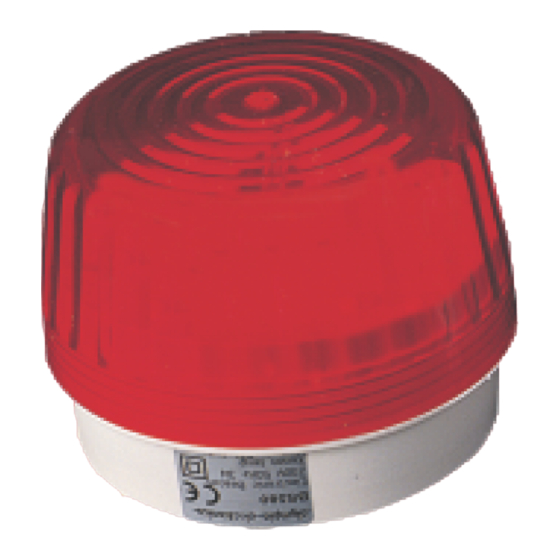

The ΒS-576/L is an optical warning device that starts to blink immediately.
They are installed at a height of about 2-3m, indoors or outdoors but away from rain.

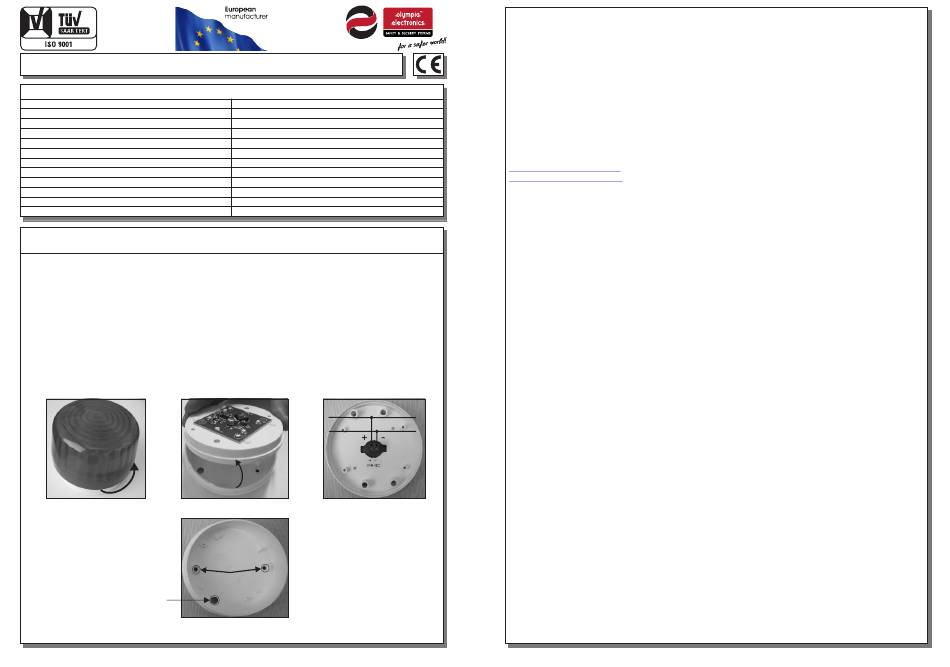

INSTALLATION

1. Unscrew counter clockwise and remove the red plastic cover of the beacon.
2. Remove the white plastic with the PCB.
3. On the back side, connect the power cable to the terminal block
(pay attention to polarity, see the sticker).
4. The power cable must pass through the respected enterance hole.Place the support materials
to mount the base.
5. Replace the removed parts from the previous steps and the device is ready to work.
1. 2.
4.
Mounting hole
Power cable
enterance hole
Page 1 from 2
12-24V DC
26mA
LED
6 red LED
IP 20
EN 50130-4 , ΕΝ 55022
o
0 to 60 C
ABS, transparent polycarbonate
Up to 95%
101(diam.) X 78(H)mm
165gr.
2 year
3.
Beacon
24V
ΒS-576/L
921576003_09_002

WARRANTY

Olympia Electronics guarantees the quality, condition and operation of the goods. The period of
warranty is specified in the official catalogue of Olympia Electronics and also in the technical leaflet,
which accompanies each product. This warranty ceases to exist if the buyer does not follow the
technical instructions included in official documents given by Olympia Electronics or if the buyer
modifies the goods provided or has any repairs or re-setting done by a third party, unless Olympia
Electronics has fully agreed to them in writing. Products that have been damaged can be returned to
the premises of our company for repair or replacement, as long as the warranty period is valid.
Olympia Electronics reserves the right to repair or to replace the returned goods and to or not charge
the buyer depending on the reason of defection. Olympia Electronics reserves the right to charge or
not the buyer the transportation cost.
HEAD OFFICE
72 km. O.N.R. Thessaloniki-Katerini
nd
P.C. 60300 P.O. Box 06 Εginio Pierias Greece
www.olympia-electronics.gr
info@olympia-electronics.gr
Page 2 from 2 921576003_09_002
