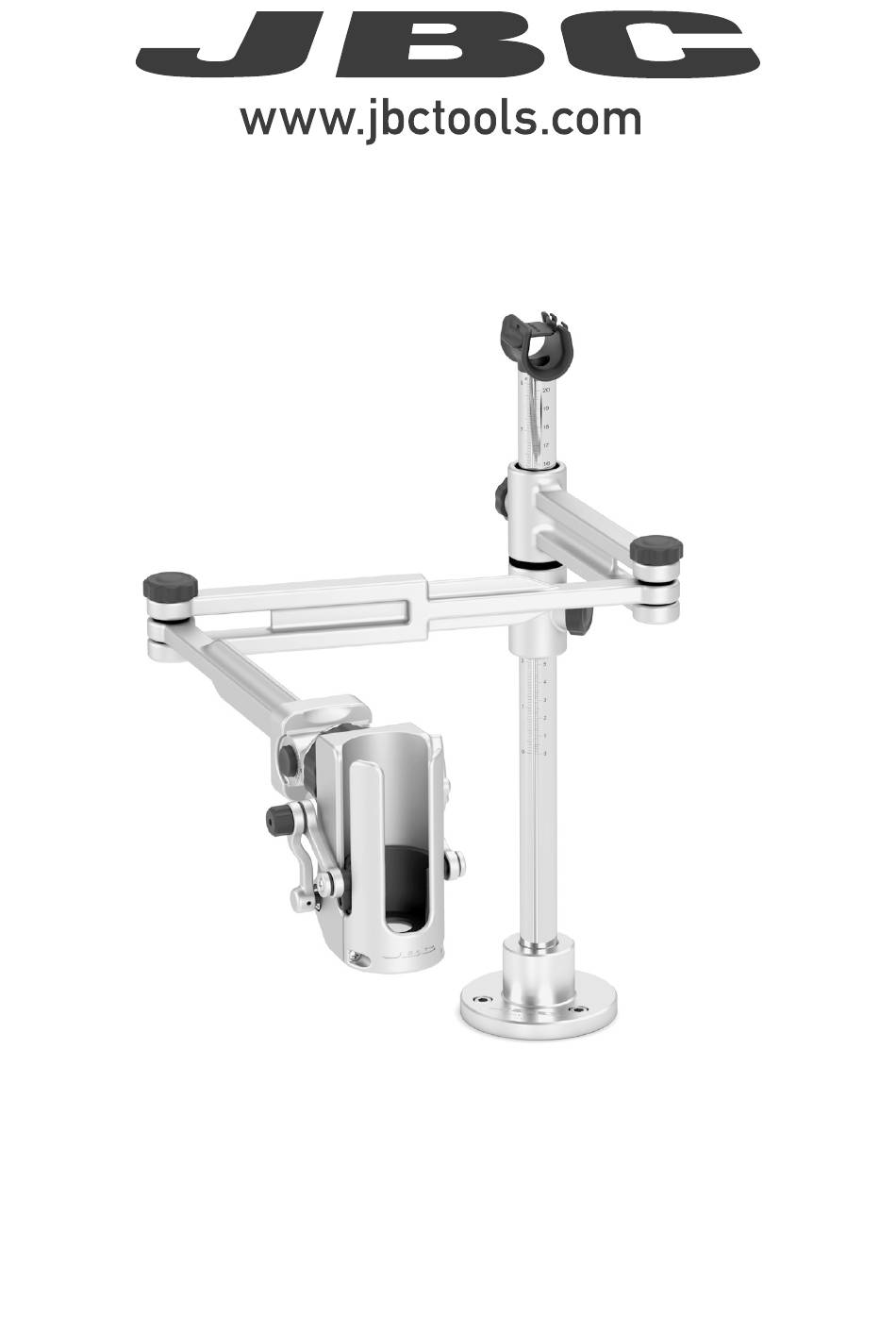

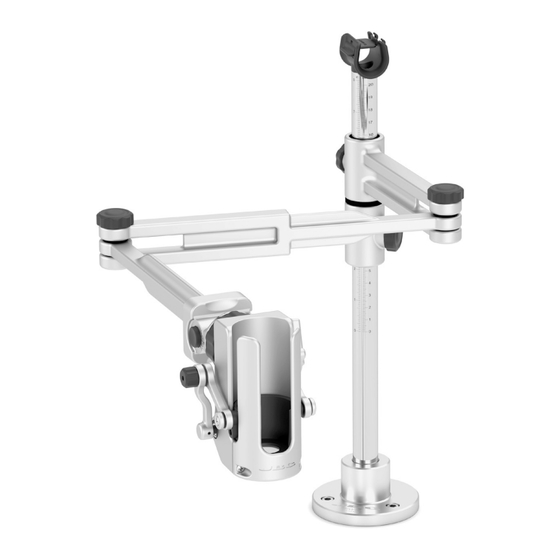

- Page 1 INSTRUCTION MANUAL 130 mm RWXLT Adjustable Rework Arm with 3 Axes...
-
Page 2: Packing List
This manual corresponds to the following reference: RWXLT-A Packing List The following items are included: Height Adjustment Hose Clamp* ....1 unit Flange* ......1 unit Ref. 0017056 Ref. 0023991 Adjustable Rework Arm ....1 unit Adapter for TET .... 1 unit Adapter for JTT .... - Page 3 130 mm 130 mm RWXLT enables hands-free working with the JBC hot air tools. Both JTT Heater Hose Set and TET Precision Heater Hose Set can be used thanks to the adapters supplied. RWXLT can be fixed to the workbench using the flange, screws and nuts.
- Page 4 Tool Arm Assembly Flange Assembly Screws 3x Flange Fix the flange onto the workbench with the supplied screws, nuts and washers. Workbench Washers 3x Nuts 3x Setting up the Tool Arm Tool Arm Fit the tool arm into the flange (1) and tighten the headless screw (2) by using the Allen key.
- Page 5 para manuales - color gris 200 mm 130 mm 130 mm Fit Heater into Tool Holder Insert the tool completely into the tool holder 100 mm with its adapter previously assembled. 80 mm 60 mm Lower the Tool 50 mm Pull the lever to lower the tool.
- Page 6 Tool Arm Height Adjustment Make sure the tool arm knob is loose (1) before Scale adjusting the tool holder’s height. Slide the tool arm to the appropriate height (2) and secure its position by tightening the height adjustment flange knob (3). The scale on the vertical axis makes it easy to adjust the system to the desired height.
- Page 7 para manuales - color gris 200 mm Tool Holder Adjustment 130 mm 130 mm Wheel Scale Wheel The tool holder head position enables an individual tool position adjustment. 100 mm By pressing the button and/or loosening the wheel, the tool holder head position can be adjusted.
- Page 8 Workplace Example RWXLT is designed to be used with hot air tools TET* and JTT*. Two tool adapters for TET and JTT are included with RWXLT. Use the appropriate adapter for the respective tool. JTT* Heater Hose Set TET* Precision Heater Hose Set...
- Page 9 200 mm Accessories 130 mm 130 mm Preheater Sets JBC offers preheater sets for different PCB sizes. 100 mm The set includes a preheater with its console and PCB support. PHNEK Preheater Set PHSEK Preheater Set for PCBs up to 11x7cm / 4x3”...
- Page 10 Accessories PCB Supports JBC offers PCB supports for different PCB sizes. PHSN Support PHSS Support for PCBs up to 11x7cm / 4x3” for PCBs up to 13x13cm / 5x5” - Clearance PCB to preheater: - Clearance PCB to preheater: 22, 45 or 65 mm / 0.87, 1.77 or 2.56 in 22, 45 or 65 mm / 0.87, 1.77 or 2.56 in...
-
Page 11: Maintenance
- color gris 200 mm Maintenance 130 mm 130 mm - Check periodically that RWXLT is clean, Sliding Part Axis especially the sliding parts and the axis. 100 mm - Use a damp cloth when cleaning. Alcohol can only be used to clean the metal parts. -
Page 12: Specifications
18.66 x 14.49 x 7.68 in / 10.23 lb Complies with CE standards. ESD Safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labor. Warranty does not cover product wear or misuse.
