FL-FS40 MKII
Installation Manual
ENABLING BRIGHT OUTCOMES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FL-FS40 MKII and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barco FL-FS40 MKII

Summary of Contents for Barco FL-FS40 MKII

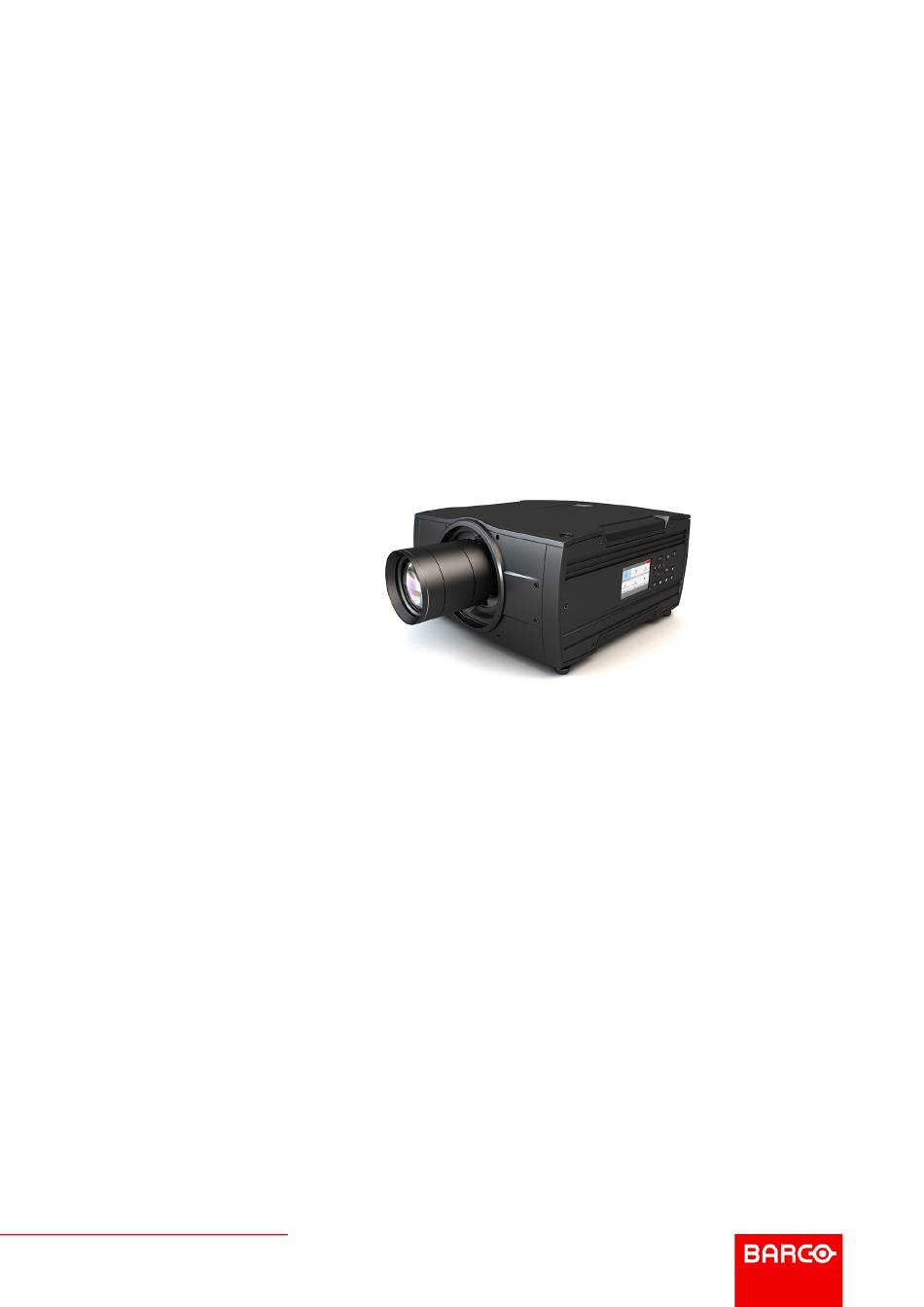

  • Page 1 FL-FS40 MKII Installation Manual ENABLING BRIGHT OUTCOMES...
  • Page 2 Product revision Software Revision: 2.1 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
  • Page 3 Barco. Changes Barco provides this manual 'as is' without warranty of any kind, either expressed or implied, including but not limited to the implied warranties or merchantability and fitness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time without notice.
  • Page 4 This software and the accompanying files are sold “as is” and without warranties as to performance or merchantability or any other warranties whether expressed or implied. In no event shall Barco be liable for damage of any kind, loss of data, loss of profits, business interruption or other pecuniary loss arising directly or indirectly.

  • Page 5: Table Of Contents

    Scheimpflug adjustment procedure............................40 3 Lenses..........................................43 Approved lenses....................................44 Replace a lens ....................................45 Locking the lens position ................................47 4 Getting the projector started ...............................49 Projector source and control connections.........................50 4.1.1 Input source connections............................50 4.1.2 Connector Specifications............................50 4.1.2.1 DVI-I ................................50 R5913250 /02 FL-FS40 MKII...
  • Page 6 5.8.1 Controlling the projector ............................89 Connector panel ....................................90 6 System settings menu ..................................91 Communication ....................................92 IR control......................................93 6.2.1 Broadcast address ..............................93 6.2.2 Projector address................................94 6.2.3 IR sensors ..................................95 Setting a custom projector name ............................96 Trigger ........................................97 R5913250 /02 FL-FS40 MKII...
  • Page 7 6.13 Lens calibration..................................... 106 6.14 Reset........................................107 6.15 Controlling the backlight of the LCD Display ........................ 109 7 User maintenance — Cleaning the projector ......................111 Projector lenses .....................................112 Projector cabinet ...................................113 Filters ........................................114 Index ..........................................115 R5913250 /02 FL-FS40 MKII...
  • Page 8 R5913250 /02 FL-FS40 MKII...

  • Page 9: Safety And Environmental Information

    Use in this document of the term, FL40 , means that the content is applicable for the following products: • FL40 - WU • FL40 - 4K • FS40 - WU • FS40 - 4K Defining the FL40 platform The FL40 series products in general, are all products within the Barco GP5 platform R5913250 /02 FL-FS40 MKII...

  • Page 10: General Considerations

    HIGH BRIGHTNESS PROJECTORS) in performing a task, and of measures to minimize the potential risk to themselves or other persons. Only Barco authorized SERVICE PERSONNEL, knowledgeable of such risks, are allowed to perform service functions inside the product enclosure. The term USER and OPERATOR refers to any person other than SERVICE PERSONNEL.

  • Page 11: Important Safety Instructions

    To prevent fire hazard • Barco projection products are designed and manufactured to meet the most stringent safety regulations. This projector radiates heat on its external surfaces and from ventilation ducts during normal operation, which is both normal and safe. Exposing flammable or combustible materials into close proximity of this projector could result in the spontaneous ignition of that material, resulting in a fire.
  • Page 12 Never use water on an electrical fire. • Always have service performed on this projector by authorized Barco service personnel. Always insist on genuine Barco replacement parts. Never use non-Barco replacement parts as they may degrade the safety of this projector.
  • Page 13 • Unplug this product from the wall outlet and refer servicing to Barco authorized service personnel or technicians under the following conditions: If liquid has been spilled into the equipment.

  • Page 14: Safety Symbols Fl40 / Fs40

    CANADA: This Class A digital apparatus complies with Canadian ICES-003, / Cet appareil numerique de Ia classe est conforme à Ia norme NMB-003 du Canada. FL40 RG2 Label RG2 IEC EN 62471-5 R5913250 /02 FL-FS40 MKII...

  • Page 15: Location Of Labels

    RG2 IEC EN 62471-5 CANADA: This Class A digital apparatus complies with Canadian ICES-003, / Cet appareil numerique de Ia classe est conforme à Ia norme NMB-003 du Canada. Image 1–1 Location of RG2 and EMC label. R5913250 /02 FL-FS40 MKII...

  • Page 16: Disposal Information

    For more information about recycling of this product, please contact your local city office or your municipal waste disposal service. For details, please visit the Barco website at: http://www.barco.com/AboutBarco/weee WEEE Information This product conforms to all requirements of the EU Directive on waste electrical and electronic equipment (WEEE).

  • Page 17: Turkey Rohs Compliance

    Safety and environmental information 1.6 Turkey RoHS compliance Turkey RoHS compliance Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur. [Republic of Turkey: In conformity with the WEEE Regulation] R5913250 /02 FL-FS40 MKII...

  • Page 18: China Rohs Compliance

    Electronic Products” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
  • Page 19 Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products”...

  • Page 20: Taiwan Rohs Compliance

    Note 2：“〇” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. 備考3.〝—〞係指該項限用物質為排除項目。 Note 3：The “—” indicates that the restricted substance corresponds to the exemption. 備註: 此RoHS表格適用於以下產品型號: GP5 Hint: This RoHS table is suitable for following models: GP5 R5913250 /02 FL-FS40 MKII...

  • Page 21: Contact Information

    傳真 (Fax)：02-7715 0298 電話 (Tel)：02-7715 0299 E-mail：service.taiwan@barco.com Importers contact information To find your local importer, contact Barco directly or one of Barco's regional offices via the contact information given on Barco's web site, www.barco.com. Contact information Norway factory Barco Fredrikstad as...

  • Page 22: Production Address

    Safety and environmental information 1.10 Production Address Factories Barco NV (BELGIUM) President Kennedypark 35 , B-8500 Kortrijk R5913250 /02 FL-FS40 MKII...

  • Page 23: Product Info

    Safety and environmental information 1.11 Product Info Product info Image 1–2 product name 產品名稱: projector 投影機 model 型號: GP5 R5913250 /02 FL-FS40 MKII...

  • Page 24: Statement

    Class A ITE (Information Technology Equipment) Warning : This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. 警告使用者: 此為甲類資訊技術設備，於居住環境中使用時，可能會造成射頻擾動，在此種情況下，使用者會 被要求採取某些適當的對策。 R5913250 /02 FL-FS40 MKII...

  • Page 25: Physical Installation

    This lens support must be adapted to the actual installation. There is no standard solution from Barco available for this purpose. It is the responsibility of the installer to ensure that the additional lens fixture is approved.

  • Page 26: Installation Process

    Decide where the projector will be mounted Unpack the projector and confirm that all equipment is present and in good working order Mount the projector Install the projector lens Connect the source Power up the projector Set up the image R5913250 /02 FL-FS40 MKII...

  • Page 27: Installation Conditions

    Physical installation 2.2 Installation conditions Environmental Conditions Barco projectors are manufactured according to specific design standards, which also include environmental conditions. Failing to follow the terms and conditions outlined in this chapter can result in loss of product warranty The table below summarize the physical environments in which the projector may be safely operated or stored.
  • Page 28 Physical installation 250mm 250mm Image 2–1 R5913250 /02 FL-FS40 MKII...

  • Page 29: Initial Inspection

    Upon receipt of the projector, we recommend that customers inspect the projector for any signs of damage that may have occurred in transit. If damage is found, file a claim with the shipping carrier immediately. Notify the Barco Sales and Service office, or your preferred Barco agent, of the damage as soon as possible. Box Contents Your projector box should contain the following: •...

  • Page 30: Positioning The Projector

    • Keep the projector away from equipment that emits electromagnetic energy for example, motors, transformers and elevators. R5913250 /02 FL-FS40 MKII...

  • Page 31: Mounting The Projector, General Considerations

    Proper securing of the projector is the responsibility of the installer and user. CAUTION: Always use a Rigging Frame when the projector shall be mounted in other ways than on the feet, on a flat surface. R5913250 /02 FL-FS40 MKII...

  • Page 32: Mounting Surfaces

    If applied in a motion rig, care must be taken to stay within the environmental specifications for vibration and shock. Contact Barco for more information regarding these specifications. It may also be necessary to use additional, custom made brackets to stabilize the projection lens to make sure that the projected image remains in position and properly focused.

  • Page 33: Projector Safe Attachment Points

    Due to use of a Rigging Frame or other equipment, the projector has some defines anchor points that shall be used. See the illustration below. Image 2–2 Bottom anchorpoints 6 pcs 6 pcs Image 2–3 Front anchorpoints R5913250 /02 FL-FS40 MKII...
  • Page 34 When installing the projector in a motion platform application, the anchor points in front (Item 3 in the illustration and table) must NOT be used. Use the anchor points in the bottom plate for this purpose. R5913250 /02 FL-FS40 MKII...

  • Page 35: Removal Of The

    Physical installation 2.8 Removal of the front cover Required tools Screwdriver TX20 Procedure Remove the lens. Remove the 8 screws, and pull the cover out. Image 2–4 R5913250 /02 FL-FS40 MKII...

  • Page 36: Throw Distance

    9.00 5.50 10.00 5.00 8.00 9.00 4.50 7.00 8.00 4.00 6.00 3.50 6.00 5.00 3.00 5.00 2.50 4.00 4.00 2.00 3.00 3.00 1.50 2.00 2.00 1.00 1.00 0.50 1.00 0.00 0.00 0.00 Projection distance Image 2–5 R5913250 /02 FL-FS40 MKII...
  • Page 37 9.00 5.50 10.00 5.00 8.00 9.00 4.50 7.00 8.00 4.00 6.00 3.50 6.00 5.00 3.00 5.00 2.50 4.00 4.00 2.00 3.00 3.00 1.50 2.00 2.00 1.00 1.00 0.50 1.00 0.00 0.00 0.00 Projection distance Image 2–6 R5913250 /02 FL-FS40 MKII...
  • Page 38 9.00 5.50 10.00 8.00 5.00 9.00 4.50 7.00 8.00 4.00 6.00 3.50 6.00 5.00 3.00 5.00 2.50 4.00 4.00 2.00 3.00 3.00 1.50 2.00 2.00 1.00 1.00 0.50 1.00 0.00 0.00 0.00 Projection distance Image 2–7 R5913250 /02 FL-FS40 MKII...

  • Page 39: Scheimpflug (Boresight) Adjustment

    SHIFT functionality of the Lens Holder to match the projected image with the projection screen. If the SHIFT range is not sufficient then the projector can be tilted and Scheimpflug can be applied. R5913250 /02 FL-FS40 MKII...

  • Page 40: Scheimpflug Adjustment Procedure

    Allen key, hex size 6 Preparation Prepare the test area. Barco recommends a projector-screen distance of 2 metres be used for all Scheimpflug adjustments. Verify that the throw ratio of the installed lens matches the requirements of the installation area (projection distance and screen size).
  • Page 41 If there are any deviations to sharpness, repeat steps 2 to 6 until the image is correct. Tighten the three set screws in the following order: left (1b), right (2b) and then top (3b). Use a size 6 hex key to do this. R5913250 /02 FL-FS40 MKII...
  • Page 42 Physical installation R5913250 /02 FL-FS40 MKII...

  • Page 43: Lenses

    Lenses Approved lenses...........................44 Replace a lens ..........................45 Locking the lens position .......................47 R5913250 /02 FL-FS40 MKII...

  • Page 44: Approved Lenses

    When using this lens, the illumination iris must be closed in tandem with the projection lens iris for the F40 series. This is an automatic process performed by the projector. R5913250 /02 FL-FS40 MKII...

  • Page 45: Replace A Lens

    Align the lens so that the red marking on the bayonet is facing upwards. Position the lens bayonet into the projector lens mount and support in place with one hand. Slide the lens lever to the far right. R5913250 /02 FL-FS40 MKII...
  • Page 46 Use the other hand to slide the lens release lever to the far left position. Pull the lens straight out of the projector lens mount. Replace with another lens, or install the projector lens cap. Image 3–3 R5913250 /02 FL-FS40 MKII...

  • Page 47: Locking The Lens Position

    Select the function to disable by the arrow keys, and disable the function by pressing the OK button. Image 3–5 Release 8 screws in front of the projector indicated in the figure below. Remove the front cover R5913250 /02 FL-FS40 MKII...
  • Page 48 Tighten the screws indicated below. Tighten the screws indicated by the red circles for locking the vertical movement Tighten the screws indicated by the blue circles for locking the horizontal movement Image 3–8 Reassemble the front cover. R5913250 /02 FL-FS40 MKII...

  • Page 49: Getting The Projector Started

    Getting the projector started Projector source and control connections ..................50 Power up the projector ........................57 Power down the projector......................58 Power mode transitions.........................59 Power modes ..........................66 Customize projector settings ......................67 User interface..........................68 R5913250 /02 FL-FS40 MKII...

  • Page 50: Projector Source And Control Connections

    330 MHz (dual link), 165 Mhz (single link) Scan format Progressive Max. input data resolution 1920x1200 60Hz (Single link), 2560x1600 60Hz (Dual Link), 1920x1200 120 Hz (Dual Link), 1920x2400 @60Hz Bit depth 8 bit EDID Supported HDCP Supported R5913250 /02 FL-FS40 MKII...

  • Page 51: Display Port 1.2

    2 m (24 AWG) – HBR1, HBR2 Supported Link Rate RBR, HBR1, HBR2 Scan format Progressive Max. input data resolution 2560x1600@120Hz WQXGA / 3840x2400 @60Hz (4K ) Max Bit depth 8, 10, 12 bit EDID Supported HDCP Supported R5913250 /02 FL-FS40 MKII...

  • Page 52: Hdmi 2.0

    Signal characteristics Digital, TMDS Max. cable length 2 m (24 AWG) Max. pixel rate 594MHz Max. input data resolution 3840x2160 @60Hz Bit depth 8, 10, 12 bits EDID Supported HDCP Supported Ethernet Audio return HDCP Supported R5913250 /02 FL-FS40 MKII...

  • Page 53: Control Interfaces

    “Connector Specifications”, page 50, HDBaseT specification. HDBaseT as network input About The following control interfaces are available on the projector: • 1x RS-232 (for projector control) • 1x LAN/Ethernet (for projector control • 2x USB-A ports R5913250 /02 FL-FS40 MKII...
  • Page 54 Getting the projector started 4.1.3.1 RS-232 Specifications Parameter Value RS-232 connector 1 female DB9 connector (RS232-in) for projector control and debug R5913250 /02 FL-FS40 MKII...

  • Page 55: Lan/Ethernet

    Getting the projector started 4.1.3.2 LAN/Ethernet Specifications Parameter Value Ethernet connector 1 RJ45 Connector for projector control (not content) Protocols DHCP, TCP/IP, UDP/P Speed 10/100 Mbit/1000Mbit R5913250 /02 FL-FS40 MKII...

  • Page 56: Usb-A Port

    Getting the projector started 4.1.3.3 USB-A port Specifications Parameter Value USB connector Type A Function Firmware upgrade using USB sticks Power Power 5V, max 1,5A (out) Standard USB 2.0 R5913250 /02 FL-FS40 MKII...

  • Page 57: Power Up The Projector

    Press the standby button on the keypad or the power button on the remote to bring the projector up to on mode. The power button backlight on the keypad will flash blue while the projector is warming up. When the power button backlight is steady blue, the projector is ready for use. R5913250 /02 FL-FS40 MKII...

  • Page 58: Power Down The Projector

    Wait 2 minutes before disconnecting the power cord. (If disconnecting is required). WARNING: There is a risk of reducing the expected lifetime of the projectors DMD device if the power cord is removed too early, due to the device’s shutdown sequence. R5913250 /02 FL-FS40 MKII...

  • Page 59: Power Mode Transitions

    This diagram shows all modes available on the projector (unplug, ON, READY, ECO), and the actions necessary to change mode. Stby ASCII JSON Powr READY JSON ASCII JSON JSON Image 4–1 Projector mains powered Auto transition after x minutes if ECO mode enables Press power On/Off button, remote On/Off button R5913250 /02 FL-FS40 MKII...

  • Page 60: Power On Projector

    The Power On/Off button will BLINKING WHITE until READY mode is achieved. Once in READY mode, the Power On/Off button will be lit WHITE. R5913250 /02 FL-FS40 MKII...

  • Page 61: Going From Ready To On

    Press the Power On/Off button on the projector, or the Power On button on the remote control. The projector will power ON. The Power On/Off button will BLINK BLUE during the transition from READY to ON. Once the projector is on, the Power On/Off button will be lit BLUE. R5913250 /02 FL-FS40 MKII...

  • Page 62: Going From On To Ready

    The projector will power down through a cool down phase. The Power on/off button will BLINK WHITE during the transition from ON to READY. Once the projector is in READY, thePower on/off button will be lit WHITE. R5913250 /02 FL-FS40 MKII...

  • Page 63: Going From Ready To Eco Standby

    ECO", in User Guide) the projector will automatically go to ECO standby mode after a time-out (default 15 minutes). All electronics (including fans, pumps,...) go down except for a very small wake up controller. The Power on/off button will FLASH WHITE every second. R5913250 /02 FL-FS40 MKII...

  • Page 64: Going From Eco To On

    ECO directly to ON. The projector will go through the same booting phase as on power plugging, then do the transition from READY to ON. Of course startup-time will be longer then from READY to ON. R5913250 /02 FL-FS40 MKII...

  • Page 65: Wake On Lan (Wol)

    Menu / Settings / Communication / LAN. menu. The MAC address is similar to the HW address that is shown in this menu path. The LAN cable must be connected when the projector enter the ECO mode, in order to obtain the Wake on LAN function. R5913250 /02 FL-FS40 MKII...

  • Page 66: Power Modes

    Mode Normal Projector is booted up and the light source is on Ready Projector is booted up but the light source is off ECO Standby Light source is switched off and projector electronics are powered down R5913250 /02 FL-FS40 MKII...

  • Page 67: Customize Projector Settings

    Getting the projector started 4.6 Customize projector settings About The projector display, behavior and user interface can be adjusted to meet individual requirements. Options include:Menu/Settings/Themes • Adjust the OSD menu color R5913250 /02 FL-FS40 MKII...

  • Page 68: User Interface

    ENTER 79 ENTER. Changes to values are implemented dynamically. Menu memory The OSD menu remembers the last selected sub–item as long as the projector is running. The menu memory is reset when restarting the projector from standby. R5913250 /02 FL-FS40 MKII...

  • Page 69: Getting To Know The Projector

    Getting to know the projector. Location of the main exterior components..................70 Service and maintenance ......................71 Power on / Standby button backlight indications ................72 LCD Panel ...........................73 Local keypad..........................79 Shortcut buttons ...........................80 Remote control..........................81 Projector Address .........................89 Connector panel ...........................90 R5913250 /02 FL-FS40 MKII...

  • Page 70: Location Of The Main Exterior Components

    Image 5–1 Main Components Image 5–2 Main exterior components matrix Component Component Item Number Item Number IR Receiver top Projector feet (x4) IR Receiver front LCD Panel Lens Key Pad Lens release handle Back Panel / Connectors R5913250 /02 FL-FS40 MKII...

  • Page 71: Service And Maintenance

    5.2 Service and maintenance General The FL40 / FS 40 projectors does not have any user serviceable parts. All service tasks must only be carried out by the manufacturer, or a Barco authorized service personnel or Barco technicians. R5913250 /02...

  • Page 72: Power On / Standby Button Backlight Indications

    Overheating Red flashing Configure/upgrade White fast flashing Standby ECO White heartbeat Software Lockup Severe errors Red Flashing When severe errors occur, the failure description will always be available in the notification page in the status menu. R5913250 /02 FL-FS40 MKII...

  • Page 73: Lcd Panel

    Active functions (Enabled Functions). Display Info, including Transport delay Environment Info. Use the navigation keys (arrows) to scroll the information menu. The time before the LCD display fades out is user configurable, see “Backlight”, page 101 R5913250 /02 FL-FS40 MKII...

  • Page 74: Lcd Touch Panel

    In addition to the remote control and the keypad, it is also possible to navigate in the menus with the touch functionality in the LCD panel. Press the icons to select the functions. Select switches to toggle. Select and drag sliders to adjust slider value. R5913250 /02 FL-FS40 MKII...

  • Page 75: Lcd Status Screens

    Notifications: The error and/or warning messages that are currently active. If no messages are active, this list will be empty. • Preview: A preview pane of the projected image. If no image is being projected, a test image is displayed instead. Image 5–3 Dashboard page Image 5–4 About page R5913250 /02 FL-FS40 MKII...
  • Page 76 The picture will be limited by the LCD resolution, 800x480pixels. The projector performance will drop when the LCD monitoring the input, due to use of resources. Exit the input monitoring when not in use. R5913250 /02 FL-FS40 MKII...

  • Page 77: Osd Menu Mode

    Getting to know the projector. 5.4.4 OSD Menu mode About. This is the projector setup menus, explained in detail in their own chapters in this manual. (Source menu, Image menu, Installation menu, System Settings menu, Status menu). R5913250 /02 FL-FS40 MKII...

  • Page 78: Lcd Functionality In Ready Mode

    When in ready mode, press the Menu button either on the remote control, or the keypad to enter the menus. Navigate by using the arrow and OK keys, either on the remote control or the keypad. R5913250 /02 FL-FS40 MKII...

  • Page 79: Local Keypad

    Shortcut to test pattern menu on LCD. Use navigation keys to select the desired pattern. Lens Shortcut to lens function. A test pattern displays on the OSD. LCD screen displays the navigation keys to manage and confirm actions. R5913250 /02 FL-FS40 MKII...

  • Page 80: Shortcut Buttons

    When the test pattern or input shortcut button is pressed, a pop up menu will show up on the LCD screen. Make a selection by the arrow keys, and confirm. Image 5–8 Test pattern pop up menu Image 5–9 Input source pop up menu R5913250 /02 FL-FS40 MKII...

  • Page 81: Remote Control

    Insert (1) both lower tabs of the battery cover in the gaps at the bottom of the remote control, and press (2) the cover until it clicks in place. Image 5–12 When replacing batteries, the broadcast address of the RCU will be reset to its default value '0'. R5913250 /02 FL-FS40 MKII...
  • Page 82 Getting to know the projector. CAUTION: Replace with the correct battery type. Use two AA size batteries R5913250 /02 FL-FS40 MKII...

  • Page 83: Remote Control, Protocol Setup

    Depending on the projector to control, the remote control can be switched between these protocols. Which protocol to use • The NEC protocol have to be used for Barco projectors based on the Pulse platform: Loki, Balder, F40. F70, F80, F90, HDX 4K, UDX, UDM and more.. •...

  • Page 84: Functionality Overview

    The battery compartment is on the back side of the remote control. The remote control is backlit for use in dark environments. It also has an Jack connector for wired connection to the projector. When the wire is connected, the IR beam is switched off. R5913250 /02 FL-FS40 MKII...

  • Page 85: Remote Control, On/Off Button

    RCU off will extend the battery life time of the remote control. To activate the remote control press the on/off button. To deactivate the remote control press the on/off button again. Default when (re)placing batteries, is “ON”. Image 5–14 R5913250 /02 FL-FS40 MKII...

  • Page 86: Function Of The Rgb Filter Button

    Green only • Blue only • Red + Green • Green + Blue • Red + Blue • Red + Green + Blue • After powering up, the colors will always revert back to full RGB. R5913250 /02 FL-FS40 MKII...

  • Page 87: Enable / Disable Remote Control

    When all sensors are turned off, the projector will not receive any signals from the remote control. To enable the sensors again, use the keypad on the projector. Select which sensors to be disabled. Image 5–16 Enter the Apply button to confirm the action R5913250 /02 FL-FS40 MKII...

  • Page 88: Wired Rc Connection

    When using wired remote control, the broadcast address must be set to “Generic ID (0)”. See the menu in “Enable / Disable Remote Control”, page It is not possible to program the remote control in wired mode. (Directly connected, no sense in programming). R5913250 /02 FL-FS40 MKII...

  • Page 89: Projector Address

    The choice between '0' and '1' can be selected in the GUI: “System Settings” → “Communication” →“IR Control “. Placing new batteries in the remote control or plugging the remote to a projector via a cable will automatically reset the address back to its default value '0'. R5913250 /02 FL-FS40 MKII...

  • Page 90: Connector Panel

    HDCP compliant for sources up 165 Mhz HDMI Standard HDMI 2.0 For Projector Input HDBaseT Standard RJ45 8P8C For Projector Input Connector R5913250 /02 FL-FS40 MKII...

  • Page 91: System Settings Menu

    ECO mode ..........................102 6.10 Power settings..........................103 6.11 Lens features ..........................104 6.12 Maintenance ..........................105 6.13 Lens calibration .......................... 106 6.14 Reset............................107 6.15 Controlling the backlight of the LCD Display.................. 109 Menu overview Image 6–1 R5913250 /02 FL-FS40 MKII...

  • Page 92: Communication

    Enable the Auto zone on the display and press enter. The Auto zone will change to “Manual”. Scroll down, and modify the desired fields. When in the desired fields, press “Enter” to enable the virtual keyboard, enter the desired values, and press “Enter” again to confirm the change. R5913250 /02 FL-FS40 MKII...

  • Page 93: Ir Control

    To change the broadcast address select the radio button of your choice. The following choices are possible: • Generic IR (address 0) • Barco broadcast IR (address 1) Select APPLY and click OK to apply the changes. R5913250 /02 FL-FS40 MKII...

  • Page 94: Projector Address

    Select the current projector address and enter a new address. Select APPLY and click OK to apply the changes. From now on the projector will only listen to this new address and to its broadcast address. R5913250 /02 FL-FS40 MKII...

  • Page 95: Ir Sensors

    To disable an IR sensor, select the slider and drag to the left. A blue slider means an active IR sensor. A gray slider means an inactive IR sensor. Select APPLY and click OK to apply the changes. R5913250 /02 FL-FS40 MKII...

  • Page 96: Setting A Custom Projector Name

    Press confirm to edit the Host name field. Use the digital keyboard to change the Hostname to the desired custom name. Press the OK key, or press the enter icon to confirm the typed name. Click Apply to update the host name. R5913250 /02 FL-FS40 MKII...

  • Page 97: Trigger

    The trigger outputs can be individually set to active low or active high by entering the menu Settings / Communication / Triggers Image 6–8 F40 series trigger menu The time of trigger output is defined via an API code. Contact Barco support for detailed info. R5913250 /02 FL-FS40 MKII...

  • Page 98: Language

    The menu language can be changed to a suitable language. Enter the menu Settings / User Interface / Language Use the arrow keys on the remote to select a language. Image 6–9 All menus and icons will change to the selected language. R5913250 /02 FL-FS40 MKII...

  • Page 99: Themes

    (From software version 1.5, the “Dark” theme is the default.) It is the “Dark” option that is shown in the menu screenshots in this manual, as this gives a better rendering. Image 6–10 Select theme, dark or light. R5913250 /02 FL-FS40 MKII...

  • Page 100: Units

    Enter the menu and select the preferred units by the arrow keys on the remote control. Temperature units: Celsius (C) and Fahrenheit (F). Distance units: Meter (M), Centimeters (C), Feet (FT) and Inches (IN) Image 6–11 Select temperature unit R5913250 /02 FL-FS40 MKII...

  • Page 101: Backlight

    When “On until Reboot” is enabled, the backlight on the LCD will be on during reboot, and en power transition cycle (on/ready state to eco mode, and back again). • Backlight: Select the time delay for turning off the LCD backlight. There are several predefined values, and also possible to set a custom value. R5913250 /02 FL-FS40 MKII...

  • Page 102: Eco Mode

    In the System Settings menu, choose to either enable or disable ECO mode by using the ECO mode slider. While ECO mode is available, the slider is colored blue. Image 6–13 Settings menu, enable ECO mode R5913250 /02 FL-FS40 MKII...

  • Page 103: Power Settings

    Set Power settings timeout In the power settings menu, the standby timeout can be selected. Enter the menu Settings / Power settings Image 6–14 Select the desired time bu the arrow keys on the remote control, and press enter. R5913250 /02 FL-FS40 MKII...

  • Page 104: Lens Features

    Enter the menu shown below, and disable the desired functions by toggling the desired buttons. The menu below shows all lens options in enabled position. Image 6–15 R5913250 /02 FL-FS40 MKII...

  • Page 105: Maintenance

    By entering a service code (or advanced user code), more features are available. This features will be visualized via the new tiles that shows up after entering the code. See the Service Manual for detailed information regarding service issues. Image 6–16 Maintenance Menu Image 6–17 Maintenance Sub-menu R5913250 /02 FL-FS40 MKII...

  • Page 106: Lens Calibration

    Calibration Enter the menu Settings / Maintenance / Lens calibration. Select the feature that shall be calibrated, and press enter on the remote control Image 6–18 Press enter to execute. R5913250 /02 FL-FS40 MKII...

  • Page 107: Reset

    ImageDisplay Display mode AutoStereo ImageOrientation Orientation Table, Front ImageSource Source files Standard ImageFeatures Contrast mid value Brightness mid value Saturation mid value Sharpness mid value Gamma mid value Cropping (if applicable) Aspect Ratio (if applicable) 16:9 R5913250 /02 FL-FS40 MKII...
  • Page 108 Navigate to the checkbox next to the settings that need to be reset and press OK. Multiple selections are possible. Select RESET and press OK to reset all selected settings. Domains with * will also delete any uploaded files for that domain. R5913250 /02 FL-FS40 MKII...

  • Page 109: Controlling The Backlight Of The Lcd Display

    In the main menu, Settings → User interface → Backlight. Image 6–20 Settings menu, backlight The Backlight menu will be displayed. Image 6–21 Example of the backlight menu Choose the desired setting for the backlights. Select one of the predetermined options, or a custom value. R5913250 /02 FL-FS40 MKII...
  • Page 110 System settings menu R5913250 /02 FL-FS40 MKII...

  • Page 111: User Maintenance - Cleaning The Projector

    User maintenance — Cleaning the projector Projector lenses.......................... 112 Projector cabinet ........................113 Filters ............................114 R5913250 /02 FL-FS40 MKII...

  • Page 112: Projector Lenses

    If there are still fingerprints on the surface, repeat with lens cleaner and a clean lens cleaning cloth, then polish again with a dry cloth. If smears occur when cleaning lenses, replace the cloth. Smears are the first indication of a dirty cloth. R5913250 /02 FL-FS40 MKII...

  • Page 113: Projector Cabinet

    General guidelines for cleaning the projector cabinet (exterior only) Clean the housing of the projector with a damp cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. R5913250 /02 FL-FS40 MKII...

  • Page 114: Filters

    This equipment is intended to operate in a “normal” environment, without any exposure to extreme amounts of dust or moisture. and by that also shipped without any kind filters for the air intake. There are filters for extreme environments available, contact your dealer for more info. R5913250 /02 FL-FS40 MKII...
