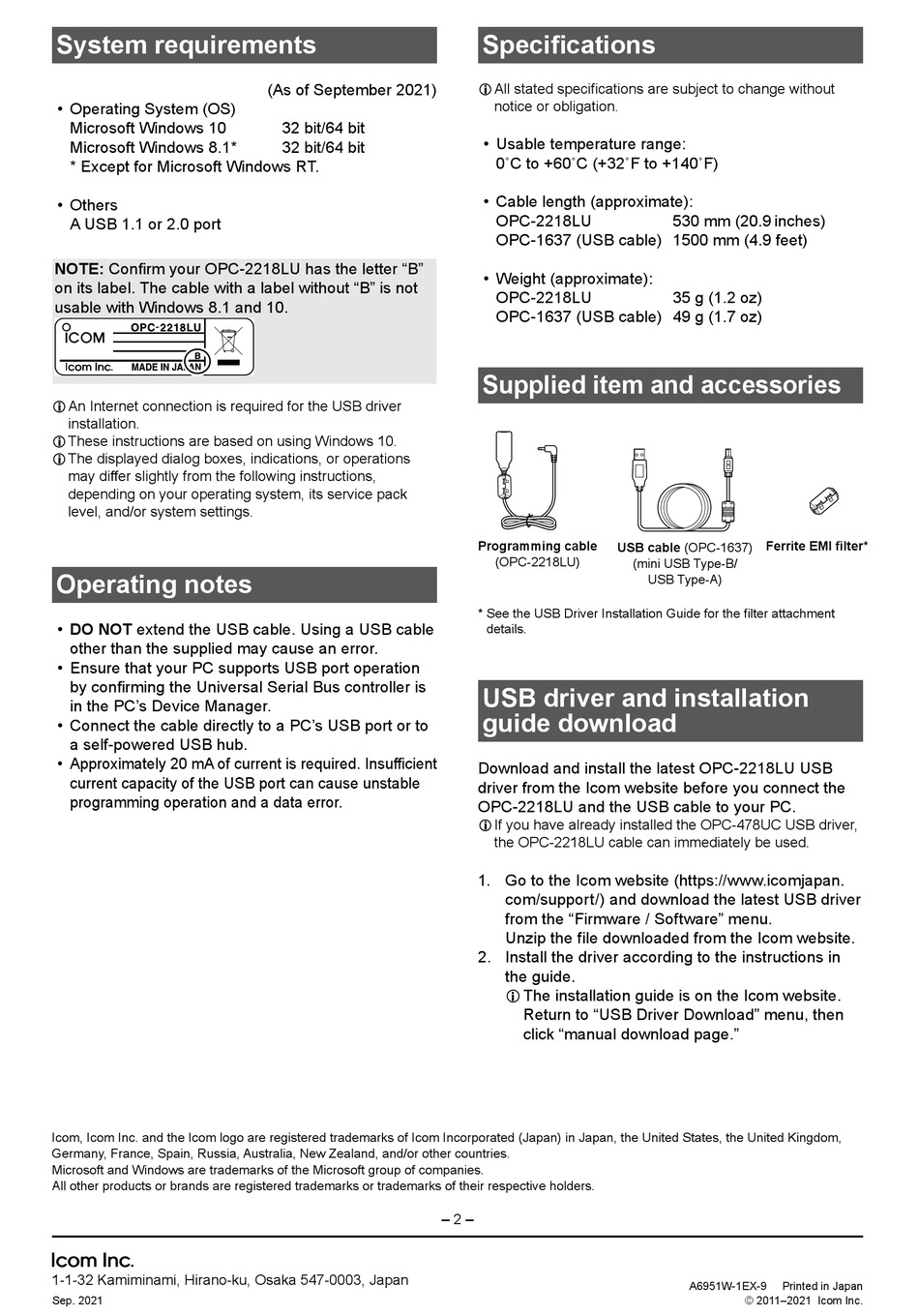

Icom OPC-2218LU Instructions page 2

System requirements
• Operating System (OS)
Microsoft Windows 10
Microsoft Windows 8.1*
* Except for Microsoft Windows RT.
• Others
A USB 1.1 or 2.0 port
NOTE: Confirm your OPC-2218LU has the letter "B"
on its label. The cable with a label without "B" is not
usable with Windows 8.1 and 10.
L An Internet connection is required for the USB driver
installation.
L These instructions are based on using Windows 10.
L The displayed dialog boxes, indications, or operations
may differ slightly from the following instructions,
depending on your operating system, its service pack
level, and/or system settings.
Operating notes
• DO NOT extend the USB cable. Using a USB cable
other than the supplied may cause an error.
• Ensure that your PC supports USB port operation
by confirming the Universal Serial Bus controller is
in the PC's Device Manager.
• Connect the cable directly to a PC's USB port or to
a self-powered USB hub.
• Approximately 20 mA of current is required. Insufficient
current capacity of the USB port can cause unstable
programming operation and a data error.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom,
Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries.
Microsoft and Windows are trademarks of the Microsoft group of companies.
All other products or brands are registered trademarks or trademarks of their respective holders.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
Sep. 2021
(As of September 2021)
32 bit/64 bit
32 bit/64 bit
Specifications
L All stated specifications are subject to change without
notice or obligation.
• Usable temperature range:
0˚C to +60˚C (+32˚F to +140˚F)
• Cable length (approximate):
OPC-2218LU
OPC-1637 (USB cable) 1500 mm (4.9 feet)
• Weight (approximate):
OPC-2218LU
OPC-1637 (USB cable) 49 g (1.7 oz)
Supplied item and accessories
Programming cable
(OPC-2218LU)
* See the USB Driver Installation Guide for the filter attachment
details.
USB driver and installation
guide download
Download and install the latest OPC-2218LU USB
driver from the Icom website before you connect the
OPC-2218LU and the USB cable to your PC.
L If you have already installed the OPC-478UC USB driver,
the OPC-2218LU cable can immediately be used.
1. Go to the Icom website (https://www.icomjapan.
com/support/) and download the latest USB driver
from the "Firmware / Software" menu.
Unzip the file downloaded from the Icom website.
2. Install the driver according to the instructions in
the guide.
L The installation guide is on the Icom website.
Return to "USB Driver Download" menu, then
click "manual download page."
– 2 –
530 mm (20.9 inches)
35 g (1.2 oz)
Ferrite EMI filter*
USB cable (OPC-1637)
(mini USB Type-B/
USB Type-A)
