WELCOME!
i 700
Getting Started

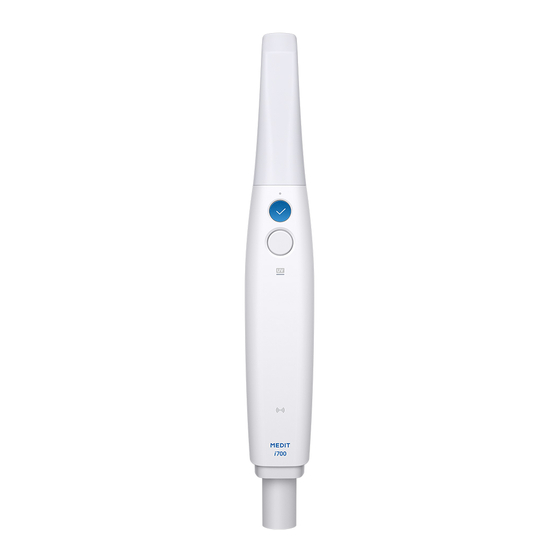

Congratulations on the purchase of your new
Medit i700 Intraoral Scanner.
PLEASE REVIEW THESE DOCUMENTS ON "HOW TO GET STARTED".
We have developed this process to follow in sequence before you schedule your
training. Once you complete the on-boarding process, please practice on a few
volunteers and get in touch with us to schedule your training:
Call Nasheel at (604)-637-1321
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the i700 and is the answer not in the manual?

Questions and answers

Кисленко Марина Евгеньевна
May 14, 2025

Добрый день! У вас есть выезд мастера для обслуживания сканера?

0

Subscribe to Our Youtube Channel

Related Manuals for Medit i700

Summary of Contents for Medit i700

  • Page 1 700 Getting Started Congratulations on the purchase of your new Medit i700 Intraoral Scanner. PLEASE REVIEW THESE DOCUMENTS ON “HOW TO GET STARTED”. We have developed this process to follow in sequence before you schedule your training. Once you complete the on-boarding process, please practice on a few...
  • Page 2 Unboxing Medit i700 1. i700 package  Main package  Accessory package...
  • Page 3 2. i700 Component Overview...
  • Page 4 Component Descriptions i700 Handpiece This is the main body of the i700 scanner where you will be able to find the power button as well as the start/stop button for scanning. Power Hub Connects the i700 body to the power source and PC.
  • Page 5 The USB memory stick is pre-loaded with the image acquisition software, the Medit iScan. User Guide It is important to read the user manual before using the i700 to prevent any damage or accidents. Besides teaching you how to set up the i700, the user manual also contains...
  • Page 6 4. Setting up the i700 i) Connect the USB 3.0 Cable to the Power Hub.
  • Page 7 ii) Connect the Power Cord to the Medical Adapter. iii) Connect the Power Cord to a Power Outlet.
  • Page 8 Connect the USB 3.0 Cable to the computer. ���� Turn on the i700 scanner.  Press the power button on i700 and wait until the USB connection indicator turns blue. ���� Turn off the i700 scanner.  Press and hold the power button of the i700 for 3 seconds.
  • Page 9 How to create a Medit Link account as clinic administrator https://vimeo.com/432204545/3403cc67c8 Link: 1. Checklist before installing the Medit Link application *Make sure to check the following before installing the Medit Link application. i) Ensure that your Windows system as well as your device drivers are up-to-date.
  • Page 10 Disconnect the i700's USB 3.0 cable from the computer before installation.  As the iScan program is enclosed in Medit Link, the installation will not proceed if the i700 device is connected to the computer. 2. Installation guide i) Prepare the Medit Link installer file.
  • Page 11 Run the Medit Link installer: Medit_Link_X.X.X.X.exe. iii) Select your language preference. iv) Specify the folder to install the Medit Link application to and tick the checkbox to agree to the terms of use and license to proceed to the next step.
  • Page 12 3. Power options for using the i700 i) Go to Control Panel > All Control Panel Items > Power Options > Change advanced power settings > USB settings  Disable USB selective suspend setting ii) Go to Control Panel > All Control Panel Items > Power Options > System Settings ...

  • Page 13: Getting Started

    Getting Started Medit Link 1. Access to Medit Link online There are two ways to access the Medit Link online. i) Go to https://www.medit.com/ via your Chrome browser.
  • Page 14 If you already have an account, click Log in at the bottom of the screen and you will be redirected to the login page on the Medit Link website. If you do not have an account, click the “Clinic” tab and begin setting up one up.
  • Page 15 Calibrating the Medit i700 Then follow the steps from the Calibration Wizard. Always turn the dial ANTICLOCKISE while calibrating. The calibration process is essential in order to produce precise 3D models. It is highly recommended that you perform the calibration process periodically.
  • Page 16 If the scanner tip is attached, please remove it from the handpiece. ii) Turn the dial of the calibration tool to position (1). iii) Remove the cover from the calibration tool and put the i700 handpiece into the calibration tool. iv) Click Next to start the calibration process.

  • Page 17: Scanning Technique

    Scanning Technique Video Tutorial: Intra-oral scan strategy - Introduction Link: https://vimeo.com/430187011/000b117d9b 1. Recommended Scan Path for Full Arch: [1] Build up the main scan data by scanning the occlusal surface from the last molar to anterior teeth. Hover 1-2 mm away from the teeth. The trick is to maintain a consistent distance from the teeth while also moving at a consistent speed when scanning.
  • Page 18 When you scan anterior teeth, it is crucial to acquire scan data enough to ensure that the anterior teeth turn green on the reliability map.  : Change the Model display mode to reliability map.  Scan the lingual side of the anterior teeth, tilt the tip to scan the incisal, and tilt it again to scan the labial side.
  • Page 19 When you're done with the lingual side, tilt the tip toward the buccal side so that the buccal side of the teeth, the buccal gingiva, the occlusal surface appear as 1:1:1, and proceed to scan the buccal side to the opposite molar. ...
  • Page 20  Acquire scan data from similar posterior teeth for both first and second occlusion. [3] The initial alignment is completed for occlusion.  Through the automatic or manual alignment process, the maxilla and the mandible are put into the initial position for further alignment, the occlusal accuracy of which is not adequate for analysis.

  • Page 21: Remote Control Mode

    Remote Control Mode Medit i700 On the i700, the Remote Control mode is available while using Scan for Clinics. The Remote Control mode allows you to control various commands such as:  Scan data view control such as pan, rotate, and zoom in/out/fit ...
  • Page 22 ➤ Press the Scan button to start scanning.  While scanning, UIs such as "Live View" and "Scan Information" are expanded for the user's convenience.
  • Page 23 ➤ After scanning, press the Control button to check the acquired scan data.  You can switch the view control between pan, zoom, and rotate by clicking the center of the control button.  In a chosen view control, use the control pad as a directional pad to command the panning direction, zoom in/out, or rotation.
  • Page 24 ➤ For closing the Remote Control mode or Settings, click and hold the Control button to open the corresponding menu, then press the left arrow to select ‘Colse’.

  • Page 25: Cleaning And Sterilizing

    Cleaning and Sterilizing Medit i700 SUMMARY 1. Handpiece: Wipe down with safety cap ON (Max strength: 60-70% alcohol/Vol.) 2. Tip Mirror: Water rinse and soft gauze with 70% alcohol 3. Seal in steripouch DRY! Plastic Cycle! 4. Heat Setting: *Important* Sterilize at 121℃...
  • Page 26 New tips need to be cleaned and sterilized/autoclaved before their first use.  Medit is not responsible for any damage including distortion, blackening etc. 3. Mirror The presence of impurities or smudges on the tip mirror may lead to poor scan quality and an overall poor scanning experience.
  • Page 27  Disconnect the scanner tip from the i700 handpiece.  Pour alcohol on a clean cloth or cotton-tipped swab and wipe the mirror. Make sure to use alcohol that is free of impurities or it may stain the mirror. You can use either ethanol or propanol (ethyl-/propyl alcohol).
  • Page 28 ⚠ Caution  Chemical cracks may appear if an improper cleaning solution is used during cleaning. 6. Disposal ⚠ Caution  The scanner tip must be sterilized before disposal.  Dispose of the scanner tip as you would any other clinical waste. ...
  • Page 29 Resources VIDEOS How to create a Medit Link account as Clinic Administrator https://vimeo.com/432204545/3403cc67c8 Tips & Tricks: Scanning Preparation Made Easy https://vimeo.com/431504630/7def1f25a5 Intra-oral scan strategy – Introduction https://vimeo.com/430187011/000b117d9b Intra-oral Scan Strategy & Basic Functionalities https://vimeo.com/430187298/cf1e086e12 Crown & Implant Treatment Workflow https://vimeo.com/431504453/76f22a7f05...
  • Page 30 Support Medit i700 Device | Computer | Medit Link Software If you require further assistance on getting started or acquiring the correct methods and techniques related to the i700 scanner, please visit: http://helpdesk.protecdental.com You may contact Protec’s Medit Support at 604-637-1321 or email: meditsupport@protecdental.com...
