Quick Guide: i700 wireless Setup
Getting Started
Please charge the rechargeable batteries before using the i700 wireless.
While the batteries are charging, the extension cable battery can be used as a power supply.
Depending on the environment and situation, users can choose either the wireless or wired setup option
of the scanner.
Below you can see the checklist of components required for each setup:
1. PC that meets the system requirements
2. Power Cord
3. Medical Adapter for Battery Charger
4. Battery Charger

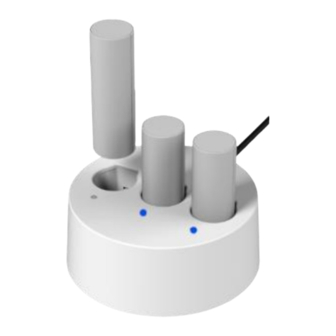

5. Extension Cable Battery
* Refer to the following content for the step-by-step setup instructions.
02842 | 35 Gaeunsa-gil, Seongbuk-gu, Seoul, Republic of Korea
www.medit.com
Standard Connection
1. PC that meets the
system requirements
2. Power Cord
3. Medical Adapter for
Wireless Hub
4. Wireless Hub
5. USB 3.0 Cable (C to A)
* Blue LED is Blinking: Charging
* Blue LED is On: Fully charged
* Red LED is Blinking: Check the charging terminal
(Dirt/Insertion)
1. PC that meets the
system requirements
2. Wireless Hub
3. Power Delivery Cable
(C to C)
Advertisement
Table of Contents
Related Manuals for Medit i700
Summary of Contents for Medit i700

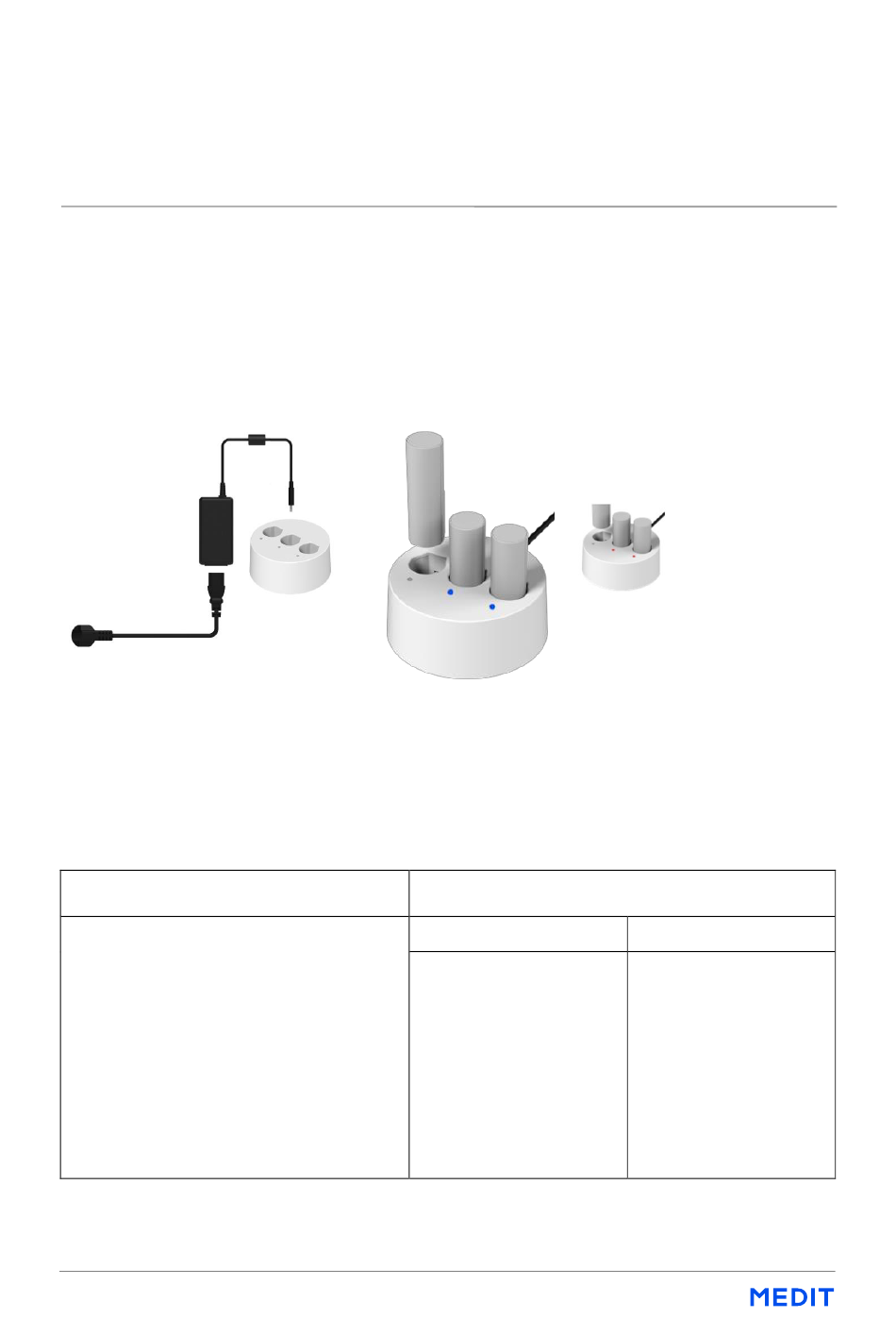

- Page 1 Quick Guide: i700 wireless Setup Getting Started Please charge the rechargeable batteries before using the i700 wireless. * Blue LED is Blinking: Charging * Blue LED is On: Fully charged * Red LED is Blinking: Check the charging terminal (Dirt/Insertion) While the batteries are charging, the extension cable battery can be used as a power supply.
- Page 2 Check the orientation of the charging terminal. Step 2 Insert the battery at the bottom of the handpiece. * There are 3 LEDs on the bottom of the i700 wireless that indicates the battery status. It is also displayed in the Medit Scan for Clinics.
- Page 3 Connecting the power cord to the adapter automatically powers the wireless hub. Step 4 Connect the A-port of the USB 3.0 cable to the PC. * A port type Setup complete. 02842 | 35 Gaeunsa-gil, Seongbuk-gu, Seoul, Republic of Korea www.medit.com...
- Page 4 Connect the other side of the power delivery cable to the PC. Setup complete. Turning On the i700 wireless Step 1 Insert the battery into the i700 wireless handpiece and press the power button. Step 2 Once there is a power supply, the blue LED on the upper part of the handpiece will light up.
- Page 5 * For the correct positioning, check if the transmitter of the handpiece faces the receiver mark on the hub. Check Connection When pairing is in progress, the LED on top of the i700 wireless blinks. Once the pairing is complete, the LED lights up. You can now start scanning.
