I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
Keyboard Tray Accessory
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
KSA1021
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CHIEF Keyboard Tray Accessory KSA1021
Summary of Contents for CHIEF Keyboard Tray Accessory KSA1021

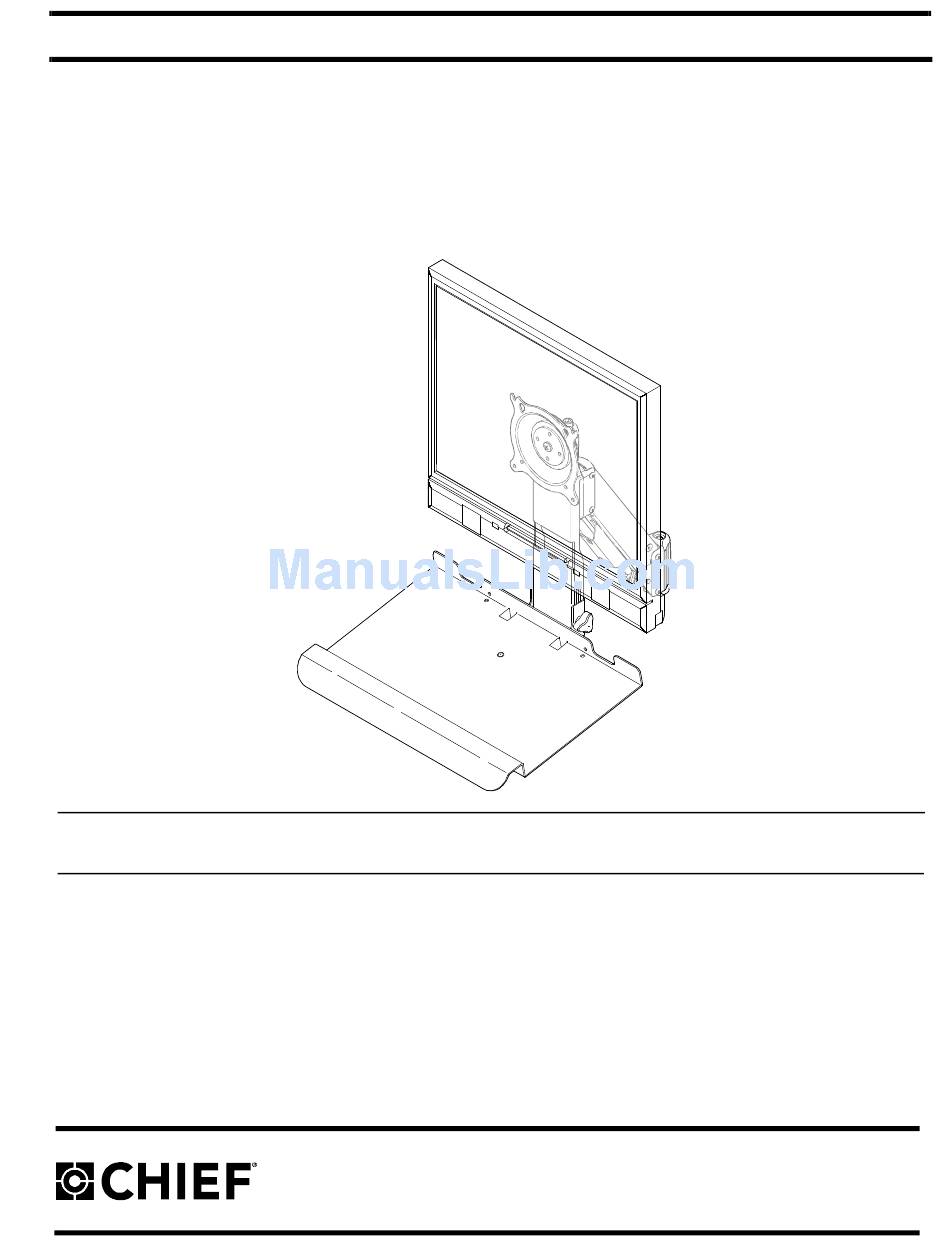

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Installationsanleitung Instruções de Instalação Istruzioni di installazione Installatie-instructies Instructions d´installation Keyboard Tray Accessory Spanish Product Description German Product Description Portuguese Product Description...
-
Page 2: Important Warnings And Cautions
KSA1021 DISCLAIMER CSAV, Inc., and its affiliated corporations and subsidiaries (collectively, "CSAV"), intend to make this manual accurate and complete. However, CSAV makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. - Page 3 Installation Instructions LEGEND Tighten Fastener Apretar elemento de fijación Befestigungsteil festziehen Apertar fixador Serrare il fissaggio Bevestiging vastdraaien Serrez les fixations Loosen Fastener Aflojar elemento de fijación Befestigungsteil lösen Desapertar fixador Allentare il fissaggio Bevestiging losdraaien Desserrez les fixations TOOLS REQUIRED FOR INSTALLATION AND PARTS A (1) 1/4"...
- Page 4 KSA1021 INSTALLATION WARNING: IMPROPER INSTALLATION CAN LEAD TO MOUNT FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Only use hardware provided or specified by manufacturer. Remove hardware securing Centris head assembly to height adjustable arm. Set hardware aside for re-use.
- Page 5 Installation Instructions 13. Orient horizontal tray mounting bracket (G) as shown in figure below. (See Figure 2) 14. Secure horizontal tray mounting bracket (G) to vertical tray mounting bracket (H) using one carriage bolt (J) and one knob (E). (See Figure 2) (H) x 1 (J) x 1 (G) x 1...
- Page 6 KSA1021 8804-000355 2007 Chief Manufacturing www.chiefmfg.com 10/07 USA/International A 8401 Eagle Creek Parkway, Savage, MN 55378 P 800.582.6480 / 952.894.6280 F 877.894.6918 / 952.894.6918 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 40 2668620 F +31 (0) 40 2668615...
