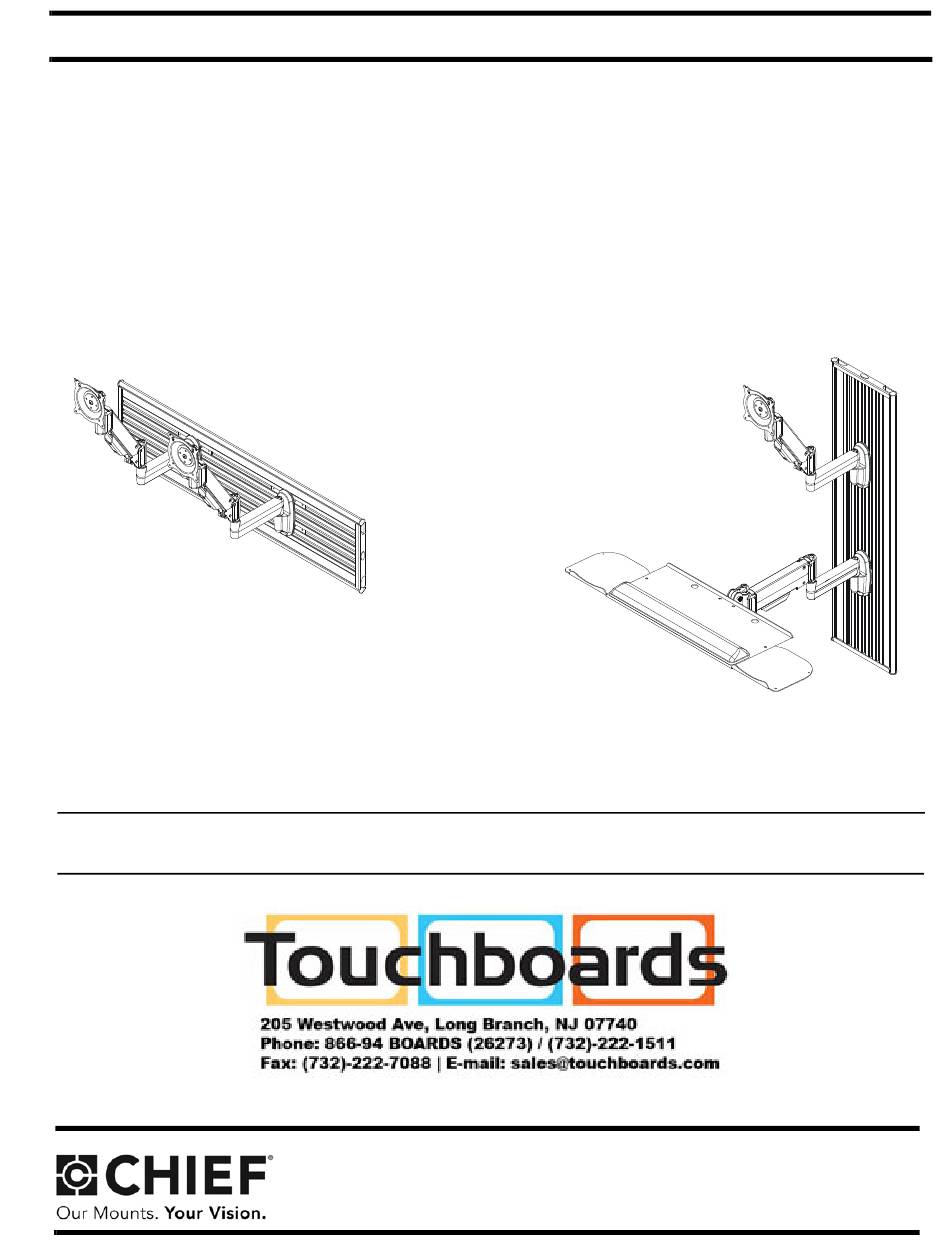

I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
SFP WALL TRACK ACCESSORY
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
KSA-1022
Advertisement
Related Manuals for CHIEF KSA-1022
Summary of Contents for CHIEF KSA-1022
- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation SFP WALL TRACK ACCESSORY Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description KSA-1022...
-
Page 2: Important Warnings And Cautions
It is the installer’s responsibility to make sure the weight of each component attached to the KSA-1022 wall track accessory Chief® is a registered trademark of Milestone AV Technologies. does not exceed 25 lbs (11.3 kg) or the specific weight limit All rights reserved. - Page 3 Installation Instructions KSA-1022 LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación...
-
Page 4: Tools Required For Installation
KSA-1022 Installation Instructions TOOLS REQUIRED FOR INSTALLATION 1/8"(included) 1/2" 7/64 PARTS B(6) C(6) A(1) E(6) F(6) D(6) #10-24 x 1/2" 1/4-20 x 1 3/4" #12 x 2 1/2" H(6) J(1) 1/8"... - Page 5 Horizontal, dual stud mounting Horizontal, triple stud mounting Vertical, drywall mounting Vertical, single stud mounting WARNING: The KSA-1022 wall track accessory CANNOT be installed horizontally on drywall without wood or steel studs. NOTE: It may be necessary to remove cable management flaps from wall track accessory in order to expose holes to be used for installation.
- Page 6 KSA-1022 Installation Instructions Drill six 1/2" holes at locations marked in Step 1. (See Figure 3) Hold metal channel on anchor (C) flat alongside plastic Drywall straps and slide channel through hole. (See Figure 4) Plastic Cap Drywall Plastic Straps...
- Page 7 Installation Instructions KSA-1022 Horizontal Installation using Wood Studs NOTE: Wall track accessory may be mounted horizontally to two studs that are 16", 20" or 24" apart or to three studs that are 16" apart. Use a stud finder or similar method to determine location of studs.
- Page 8 KSA-1022 Installation Instructions Site Requirements for Steel Studs WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! The figure below identifies the minimum reguirements for installation of display mounts onto a steel stud structure. If the structure or its components do not meet these requirements contact the mount manufacturer for specific instructions before attempting installation.
- Page 9 Installation Instructions KSA-1022 anchor channel is positioned vertically on stud. (See Figure Slide plastic cap on anchor (C) towards wall until flange of Vertical Installation using Steel Studs cap is flush with wall. (See Figure 12) After determining the site meets the installation requirements: Steel Stud Identify desired mounting location on wall.
- Page 10 KSA-1022 Installation Instructions studs WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Overtightening of mounting hardware can damage the steel studs. DO NOT overtighten mounting hardware! Steel Stud Drywall (Dual Studs) (D) x 3...
- Page 11 It is the installer’s responsibility to make sure the weight of each component attached to the KSA-1022 wall track accessory does not exceed 25 lbs (11.3 kg) or the specific weight limit for the attached mounting device. Additionally, there is a limit...
- Page 12 KSA-1022 Installation Instructions Remove side cover to slide locking plate brackets (B) into wall track accessory (A) at the desired mounting location. (See Figure 21) NOTE: Locking plate brackets must be inserted into the top 8" minimum channel and second channel from the bottom.
- Page 13 (See Figure 23) installer’s responsibility to make sure the weight of each component attached to the KSA-1022 wall track accessory does not exceed 25 lbs (11.3 kg) or the specific weight limit for the attached mounting device. Additionally, there is a limit on how many components may be mounted on each bracket depending on the mounting method.
- Page 14 KSA-1022 Installation Instructions Reinstall side cover making sure the cable runs through the cable hole. (See Figure 22) cable management flap cable path (typical) Figure 24...
- Page 15 Installation Instructions KSA-1022...
- Page 16 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 (0)40 2668620 F +31 (0)40 2668615 Chief Manufacturing, a division of Asia Pacific A Room 24F, Block D, Lily YinDu International Building Milestone AV Technologies LuoGang, BuJi Town, Shenzhen, CHINA.
