I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Istruzioni di installazione
Installatie-instructies
Instructions d´installation

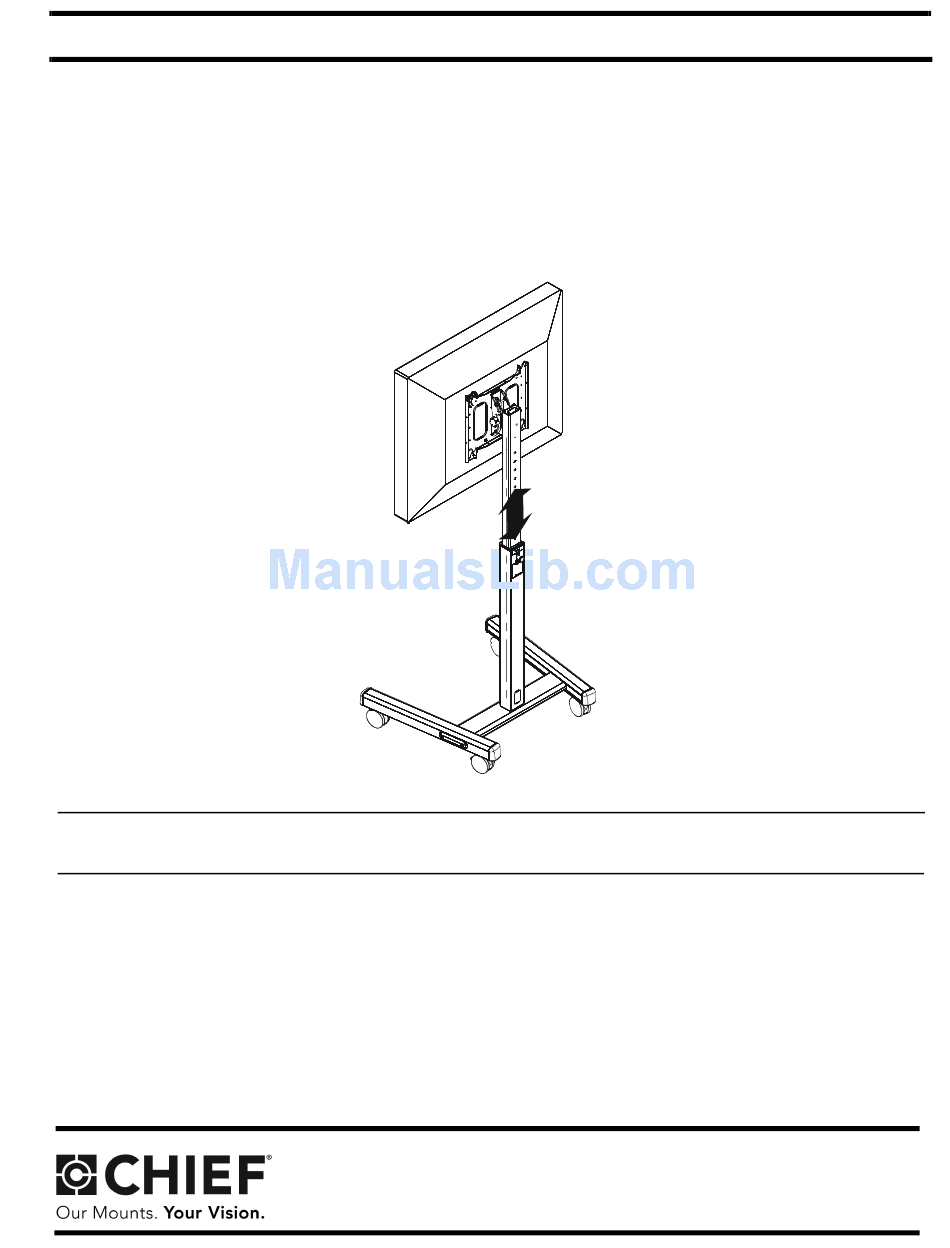

Height Assist Accessory
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
PAC780/782/784
Advertisement
Table of Contents
Related Manuals for CHIEF PAC780
Summary of Contents for CHIEF PAC780
- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation Height Assist Accessory Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description PAC780/782/784...
-
Page 2: Important Warnings And Cautions
200 lbs the information contained in this document. (90.72 kg) or the specific weight limit of the cart/stand. Chief® is a registered trademark of Milestone AV Technologies. NOTE: Each Gas spring is rated to hold a display at its upper All rights reserved. -
Page 3: Installation Instructions
Installation Instructions PAC780/782/784 LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación... -
Page 4: Tools Required For Installation
PAC780/782/784 Installation Instructions TOOLS REQUIRED FOR INSTALLATION 3/16" 1/2" (12.7mm) PARTS A(1) [72" lift assist gas spring] C(1) [Cart gas spring mount] B(1) [Stand gas spring mount] G(6) H(2) F(2) 5/16-18" D(1) 5/16-18 x 7/8" E(1) [M8 eyelet] [Rod support plate]... - Page 5 Installation Instructions PAC780/782/784 Assembly And Installation Install Gas Spring to Cart/Stand Remove any mounted displays and mounting devices from cart/stand. Carefully tip cart/stand in order to expose screws on bottom of cart/stand. Remove four screws and washers from bottom of cart/stand to separate mounting column from base.
- Page 6 PAC780/782/784 Installation Instructions Slide inner extrusion of cart/stand up through outer extrusion as far as possible. (See Figure 4) (G) x 4 (B or C) inner extrusion Figure 6 12. Install one M8 eyelet (F) onto lower end of 72" gas spring (A).
-
Page 7: Height Adjustment
Installation Instructions PAC780/782/784 14. Position removed base of cart/stand to reattach to column extrusion. 15. Install removed button head cap screws through removed washers, holes in cart/stand, column base mount bracket (E) and into outer extrusion of cart/stand. (See Figure 8) IMPORTANT ! : Partially install each screw until gas spring is compressed before tightening screws. - Page 8 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 (0)40 2668620 F +31 (0)40 2668615 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...
