Epoch Design NIKO 5480 Assembly Instructions

1
1/2 Insert all 4 of the threaded steel dowels into the footboard by hand. Slide the footboard
E D
POCH ESIGN
toward the side rails so that the dowels go through the holes at the end of the side rails.
Slide the half moon washer over the dowel as shown. Hand tighten the nut behind the
half moon washer. Use the wrench provided to tighten the nut.

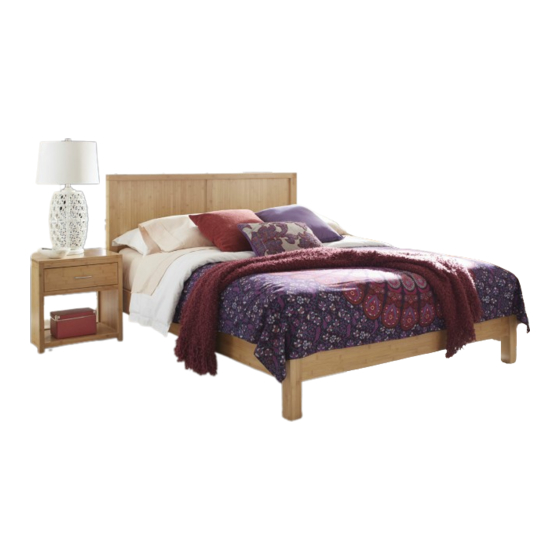

Congratulations on the purchase of your Niko (Aniko) Platform Bed. This bed has been crafted to the highest
standards of quality and safety and will give you many years of enjoyment and practical use.
On this insert you will nd a list of the hardware and platform bed parts as well as detailed assembly
instructions. Assembly is quite simple and requires only a at head screwdriver and a Phillips head screwdriver. The use
of a power drill with Phillips head attachment is helpful but not necessary. Assembly will be most easily accomplished
if you take the time to carefully sort the hardware and familiarize yourself with the function of each piece.
If you need assistance with assembly, part replacement or any other matter, please contact the toll-free Epoch
Design Customer Service Team from Monday through Friday, 9 AM-6PM PST at 1 (800) 589-7990. You may also email
your request or comments to info@epochbydesign.com and a customer service representative will respond.
4x 110mm Bolts
Used to attach
rails to headboard
12x Machine Screws
Used to attach
brackets
mm 10 20 30
5
Spread the slat bundle cloth side down evenly across the slat rails. First secure one slat
on one end and then the other end evenly. Then use the remaining wood screws to
secure all slats to the slat rails with a Phillips Head screwdriver. A power screwdriver
comes in handy for this step.
1x Drop Support
1x Footboard
Activate your Epoch Design Limited Lifetime Warranty: www.epochbydesign.com/register
NIKO / ANIKO PLATFORM BED
, LLC
2x 70mm Bolts
Used to attach
drop support to
center support
4x Barrel Nuts
Used to tighten
drop support
HALF MOON WASHER
40 50 60 70
2x Side Rails
Used to connect
end boards
HAVE QUESTIONS OR CONCERNS? CALL US FIRST: 1-800-589-7990
5480, 5479, 5478
4

HARDWARE LIST

4x Half Moon Bracket,
Nut & Steel Dowel
Used to attach
footboard to rails
1x Allen Wrench
Used to tighten
center support bolts
2
Using 4 x 110mm bolts and 4 x barrel nuts
80 90 100 110
attach the bed rails to the headboard.

BED PARTS

Note: Do one rail at a time and only hand
tighten the bolts. Then fully tighten the bolts
with the Allen Wrench provided.
1x Center Support
Attach the drop support to the center
support by inserting two 70mm bolt
through the drop support into the center
support and tighten with the Allen Wrench
provided. Then lower the center suppport
into the brackets.
Thank you and Enjoy
39x Wood Screws 2x Brackets
Used to attach
slat bundle to rails
1x Wrench
1x Headboard
1x Slat Bundle
rest on side rails and
supports mattress
(strap side down)
3
Attach the brackets to the
head and foot boards
(open end up) using the
provided machine screws.
28-Sept-2018
Used to attach
headboard and
footboard
Used to tighten
footboard to rails
