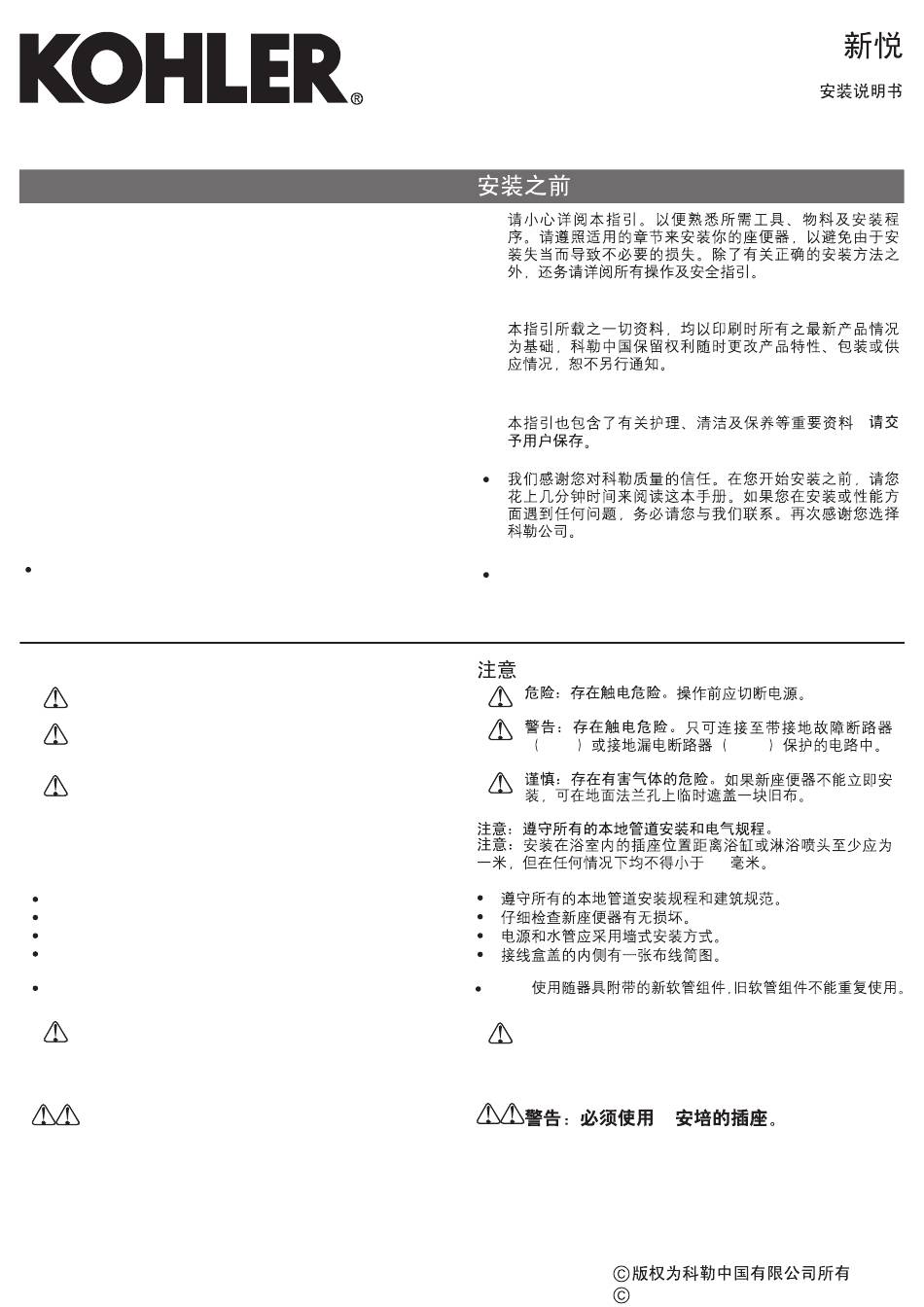

BEFORE YOU BEGIN
BEFORE YOU BEGIN
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information -
.
consumer
· We appreciate your commitment to Kohler quality. Please
take a few minutes to review this manual before you start
installation. If you encounter any installation or
performance problems, please don t hesitate to contact us.
Thanks again for choosing Kohler Company.
When install the product in the room, a stop valve shall be
installed in a close proximity. For emergency circumstances,
the water inlet valve shall be stopped without using any tools;
otherwise unexpected failure may cause the loss to the customer.
NOTES
DANGER: Risk of electric shock.
before servicing.
WARNING: Risk of electric shock.
circuits protected by Ground-Fault Circuit-Interrupters
(GFCI s) or Earth-Leakage Circuit-Breakers (ELCB s).
'
CAUTION: Risk of hazardous gases.
is not installed immediately, temporarily place a rag in
the floor flange opening.
NOTICE: Follow all local plumbing and electrical codes.
NOTICE: Receptacles installed in bathrooms to be located at
least 1 meter from a bathtub or shower if practical, but in no
case less than 500 mm.
Observe all local plumbing and building codes.
Carefully inspect the new toilet for damage.
Water and electrical supplies may be wall mounted.
There is a wiring schematic on inside of the of the junction
box cover.
Please use the water supply hose accompanying with new
machine. The old hose assembly shall not be used again.
WARNING: Risk of electric shock, fire or personal
injury. This product must be installed safely. Connect
only to dedicated 220V~, 50Hz, 10A circuit protected
by Ground-Fault Circuit-Interrupters (GFCI's) or
Earth-Leakage Circuit-Breakers (ELCB's).
WARNING: Must use
1396803-T01-C
please leave instructions for the
'
Disconnect power
Connect only to
If a new toilet
10A
receptacle.
科勒(中国)投资有限公司
中国上海市静安区江场三路158号 邮编: 200436
制造商:上海科勒电子科技有限公司
中国上海市宝山区丰翔路1955号 邮编: 200444
·
·
·
在安装本产品的同一房间中,需要在触手可及的位置安装一
个止水阀,用于紧急情况下,无需借助工具即可切断本产品
的进水水路;否则本产品的意外故障可能会导致用户损失。
GFCI
'
必须
警告:触电、火灾或人身伤害的危险。本产品必须安全
接地。只能连接到专用的220V~,50Hz,10A带接地故
障断路器或接地漏电保护器的电路中。
1
KARING
INSTALLATION INSTRUCTIONS

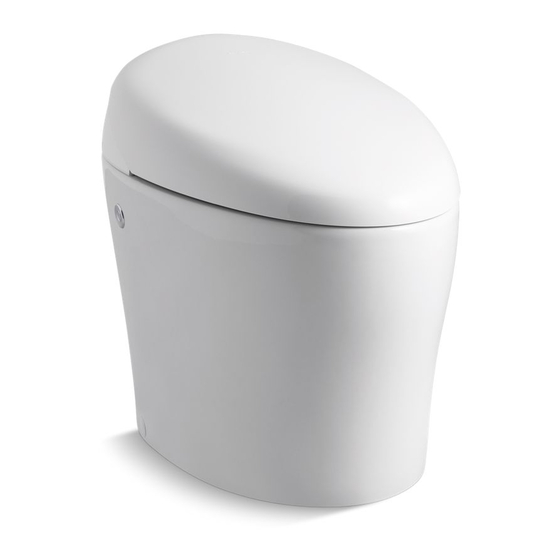

INTELLIGENT TOILET
K-4026T-2A-0
ELCB
500
10
Copyright Kohler
China Ltd., 2013
智能座便器
-
, 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K-4026T-2A-0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kohler K-4026T-2A-0

  • Page 1 - please leave instructions for the consumer · We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don t hesitate to contact us.
  • Page 2: Specifications

    Unit: mm Reference Value Finished Wall Front of Bowl Finished Floor Bottom View of Outlet Fig.#1 Kohler reserves the right to change marked dimensions without prior notice. SPECIFICATIONS 4.8L Flush volume Level II Water efficiency grade* 305mm Min pit distance Min water pressure 0.07MPa (dynamic pressure)
  • Page 3 * Antibacterial: the seat and cover contains long term inorganic anti-bacteria material which will inhibit bacteria growth on surface, this does not represent the mildew and other incidental effects. The antibacterial rate is more than 90%. (Perform test in accordance with GB21551.2-2010 requirements. Testing lab: China household electrical appliances testing institute; electromechanical products testing technology center of Shanghai Entry-Exit inspection and quarantine bureau.) 抗菌:含无机系抗菌材料的座圈、盖板长期抗细菌,抑制产品表面的细菌生长,这一加工处理不代表防霉等附带效果。抗菌率大于90%(依据GB21551.2-2010进行试验。测试机构:中国家用电器检 测所、上海出入境检验检疫局机电产品检测技术中心) Kohler Co. 1396803-T01-C...
  • Page 4: Installation

    Follow the dimensional information exactly when installing a hardwire electrical supply. NOTE: Cut PVC drain hole even and level with floor. 注:PVC排污口请切割平整,与地面齐平。 The wall location of the electrical and water supply are interchangeable. Supply Stop GFCI-Protected 10A Receptacle(water proof) 150mm 305mm Fig.#4 1396803-T01-C Kohler Co.
  • Page 5 Note: remove protection membrane on the flange. 注意:安装前先将密封法兰外面的保护膜去除。 The shoulder end is downward, set around the 有台阶的一端向下,套在排污口周围。 drain hole The wall location of the electrical and water supply are interchangeable. Supply Stop GFCI-Protected 10A Receptacle(water proof) Sealing flange 密封法兰 150mm 305mm Fig.#5 Kohler Co. 1396803-T01-C...
  • Page 6 Do not overtighten the mounting nuts. Do not Expansion bolt shorten the T-bolts. 膨胀螺栓 Place a nut on each expansion bolt . 在每个膨胀螺栓上拧一个螺母。 Base of Hand tighten the nuts. Tank Unit Expansion bolt purchased by installer. Note: 膨胀螺栓配件须安装人员自行购买。 Fig.#7 1396803-T01-C Kohler Co.
  • Page 7 Return the manual switch into the locked position by using a flathead screwdriver to turn it clockwise. Stop the shut-off value. IMPORTANT! The water tank must be emptied after the shut-off valve is locked. Waterline Float 水浮子 Adjust waterline Unlock Lock Fig.#9 Kohler Co. 1396803-T01-C...
  • Page 8 Tape them to the floor so they will not be pinched or damaged. Confirm splash board is above the water injection valve. 确认防溅板在注水阀上方。 Tank Wiring Harness Plug (Connected to Bidet Seat) Tape Level Switch Wire Refill Tube Tank Electrical Plug Wiring Harness Plug (Connected to Pump) Fig.#11 1396803-T01-C Kohler Co.
  • Page 9 WARNING: After complete wire (pump)/wire (Bidet) 必用线束接头旁的塑料抱箍卡住接插件,并用附带的螺 installation, snap connector in by plastic clamp near 丝锁紧。 the wire terminal; fasten by attaching screw. Level Switch Refill Tube Wiring Harness (Pump) Flexible Hose of Bidet Seat Wiring Harness (Bidet Seat) Tee Connector Fig.#13 Kohler Co. 1396803-T01-C...
  • Page 10: Complete The Installation

    Place the access cover over the opening in the back of the toilet. Caulk around the base of toilet and caulk the access cover to the vitreous shell. Access Opening Cut With Utility Knife. Caulk Base Of Toilet. Toilet Back Access Cover Fig.#16 1396803-T01-C Kohler Co.
  • Page 11: Installation Steps

    Place the installation holder on the fixing hole. Fix the holder with screws and install it. Install the screw covers on the screws. Place the remote controller on the holder. Fig.#17 Installation steps: Expansion pipe Public anti-loss installation: 公共场所防遗失安装方式: Fig.#18 Kohler Co. 1396803-T01-C...
  • Page 12 夜灯:开 Night light: on Pressure: mid 节能模式:关 Power save: off Position: mid 臀部冲洗: 自动翻盖功能:开 Rear Wash: Auto-open seat: on 水温:中档 自动冲水功能:开 Water temperature: mid Auto flush: on 微波感应距离:中距离 Pressure: mid Microwave detection distance: mid distance Position: mid 1396803-T01-C Kohler Co.
  • Page 13: Troubleshooting

    Troubleshooting This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale Distributor. SYMPTOMS PROBABLE CAUSES RECORRECTIVE ACTION The toilet does not A.
  • Page 14 When the power is turned on, the toilet may flush three times and then function correctly. No action is needed if this happens. Note the results (how many times the toilet flushes, whether it operates normally). Consult the chart above. Perform the recommended action. 1396803-T01-C Kohler Co.
  • Page 15 常见问题 问题 偶尔 能便盖 POWER Kohler Co. 1396803-T01-C...
  • Page 16: Consumer Responsibilities

    (cement mortar) while installing the toilet. Thermal 砂浆)。因为凝胶材料(水泥砂浆)的热膨胀可能使座 expansion of hard setting material (cement mortar) 便器的脚部挤破或损坏。科勒对所有因为凝胶材料(水 will damage or crash the feet of toilet. Kohler will not 泥砂浆)安装而引起的座便器破裂恕不负责。 be responsible for any damage because of using hard setting material (cement mortar) for toilet installation.
