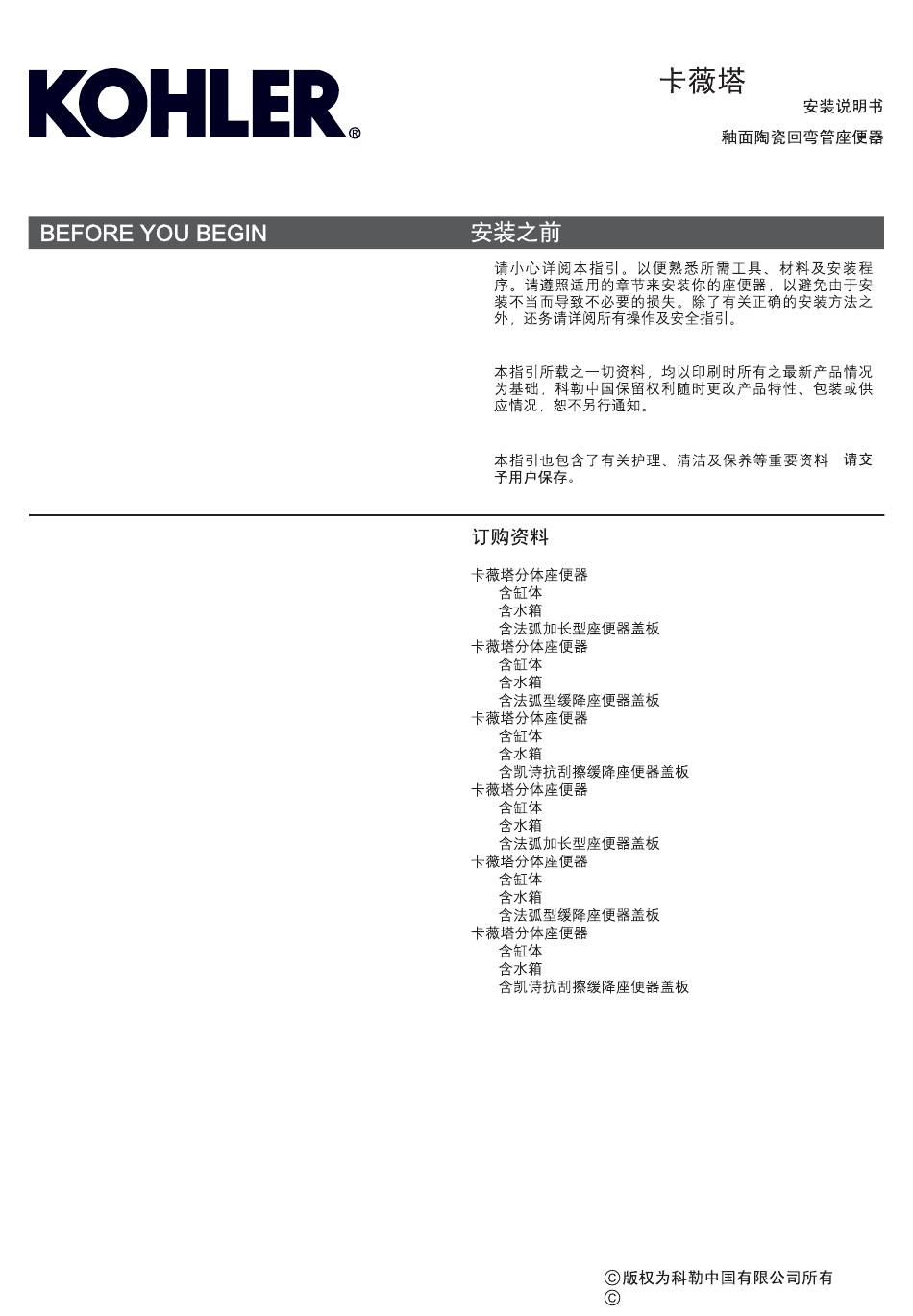

Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information -
please leave instructions for the
consumer
.
ORDERING INFORMATION
CAVATA Two-Piece Toilet 305mm
TM
Includes Bowl ........................................................K-3982T
Includes Tank ....................................................K-4987T-W
Includes French Curve Toilet Seat........................K-4653T
®
CAVATA Two-Piece Toilet 305mm
TM
Includes Bowl ........................................................K-3982T
Includes Tank ....................................................K-4987T-W
Includes French Curve Quiet-close Toilet Seat .....K-4713T
®
CAVATA Two-Piece Toilet 305mm
TM
Includes Bowl ........................................................K-3982T
Includes Tank ....................................................K-4987T-W
Includes CACHET Quiet-close Toilet Seat .......K-4636T-U
TM
CAVATA Two-Piece Toilet 400mm
TM
Includes Bowl ........................................................K-4066T
Includes Tank ....................................................K-4987T-W
Includes French Curve Toilet Seat........................K-4653T
®
CAVATA Two-Piece Toilet 400mm
TM
Includes Bowl ........................................................K-4066T
Includes Tank ....................................................K-4987T-W
Includes French Curve Quiet-close Toilet Seat .....K-4713T
®
CAVATA Two-Piece Toilet 400mm
TM
Includes Bowl ........................................................K-4066T
Includes Tank ....................................................K-4987T-W
Includes CACHET Quiet-close Toilet Seat .......K-4636T-U
TM
1192861-T01-A
.........................K-3862T-W
.......................K-3862T-CW
.......................K-3862T-SW
.........................K-4017T-W
.......................K-4017T-CW
.......................K-4017T-SW

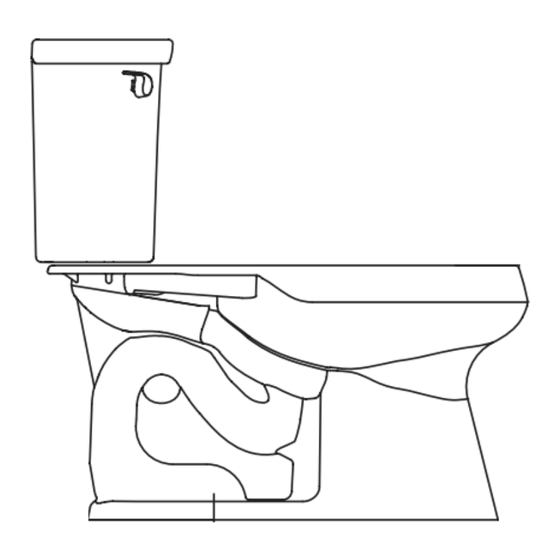

VITREOUS CHINA REVERSE TRAP TOILET
305mm K-3862T-W/K-3862T-CW/K-3862T-SW
400mm K-4017T-W/K-4017T-CW/K-4017T-SW
·
·
·
305mm.......................................K-3862T-W
...................................................................K-3982T
..............................................................K-4987T-W
305mm.....................................K-3862T-CW
...................................................................K-3982T
..............................................................K-4987T-W
305mm.....................................K-3862T-SW
...................................................................K-3982T
..............................................................K-4987T-W
400mm .......................................K-4017T-W
...................................................................K-4066T
..............................................................K-4987T-W
400mm.....................................K-4017T-CW
...................................................................K-4066T
..............................................................K-4987T-W
400mm ....................................K-4017T-SW
...................................................................K-4066T
..............................................................K-4987T-W
-1-
CAVATA
INSTALLATION INSTRUCTIONS
......................................K-4653T
......................................K-4713T
...........................K-4636T-U
......................................K-4653T
......................................K-4713T
...........................K-4636T-U
Copyright Kohler China Ltd., 2012
TM
-
, 2012
Advertisement
Related Manuals for Kohler CAVATA K-3862T-W
Summary of Contents for Kohler CAVATA K-3862T-W
- Page 1 · · All information in these instructions is based upon the latest product information available at the time of publication. Kohler China reserves the right to make changes in product characteristics, packaging, or availability at any time without notice. ·...
-
Page 2: Tools And Materials Required
NOTES · · Observe all local plumbing and building codes. · · Shut off the water supply. · · 140mm Seat post holes are on 140mm (5-1/2") centers. · · Ensure that the new drain has the correct roughing-in dimension. This toilet has a 305mm/400mm roughing-in 305mm/400mm ( dimension. - Page 3 Reference Value Unit: mm K-3862T-W/K-3862T-CW/K-3862T-SW Finished Wall Front of Bowl Supply K-4017T-W/K-4017T-CW/K-4017T-SW Finished Wall Front of Bowl Supply Kohler reserves the right to change marked dimensions without prior notice. 1192861-T01-A...
-
Page 4: Installation
INSTALLATION Install or relocate the supply and outlet as necessary to comform to the roughing-in dimensions. Supply Important: Toilet must have 305mm/400mm minimum roughing-in to install properly. 305mm/400mm If replacing a toilet, remove the old wax. Insert new T-bolts. Install the wax seal. If installation of the new toilet is delayed, temporarily cover the closet flange hole with a rag. - Page 5 Apply weight evenly. Install floor mounting kit as shown in the figure. Do not overtighten. Do not move after placement! Watertight seal may be broken! This side up. Cut excess. Fix bolt cap. 6 mm 6 mm Cut excess. Install the tank Connect supply and turn on the water.
- Page 6 Flush several times and check for leaks. Fill float with ballast Test flush the toilet. Periodically check all connections for leaks for several days following installation. Set the tank cover in place on the tank. Minor adjustment of water level Snap Move the snap along "OPEN"...
- Page 7 Fasten the snap along "CLOSE" direction. CLOSE Screw Float adjustment instructions: Make sure the height of surface E is 2-4mm lower than surface G. G 2- Float Water Cup Install the tank lid and the seat. Use the supplied 1/4"-20 seat bolts and washers.
- Page 8 A. Partially close the water supply shut-off valve if the water pressure to the toilet is too tank is filling. high. Check the toilet performance following any such adjustment. B. Remove dirt or obstructions from the valve head. Flush the lines. IMPORTANT: Use only genuine Kohler parts as shown to avoid property damage. 1192861-T01-A...
-
Page 9: Consumer Responsibilities
CAUTION: Don t use any cement while installing the toilet. Heat expansion of the toilet may damage the feet of the toilet. Kohler will not be responsible for any damage because of using cement. WARNING: Risk of product damage. Do not throw into the toilet what is easy to block it, such as newspaper, paper pilch, sanitary towel.
