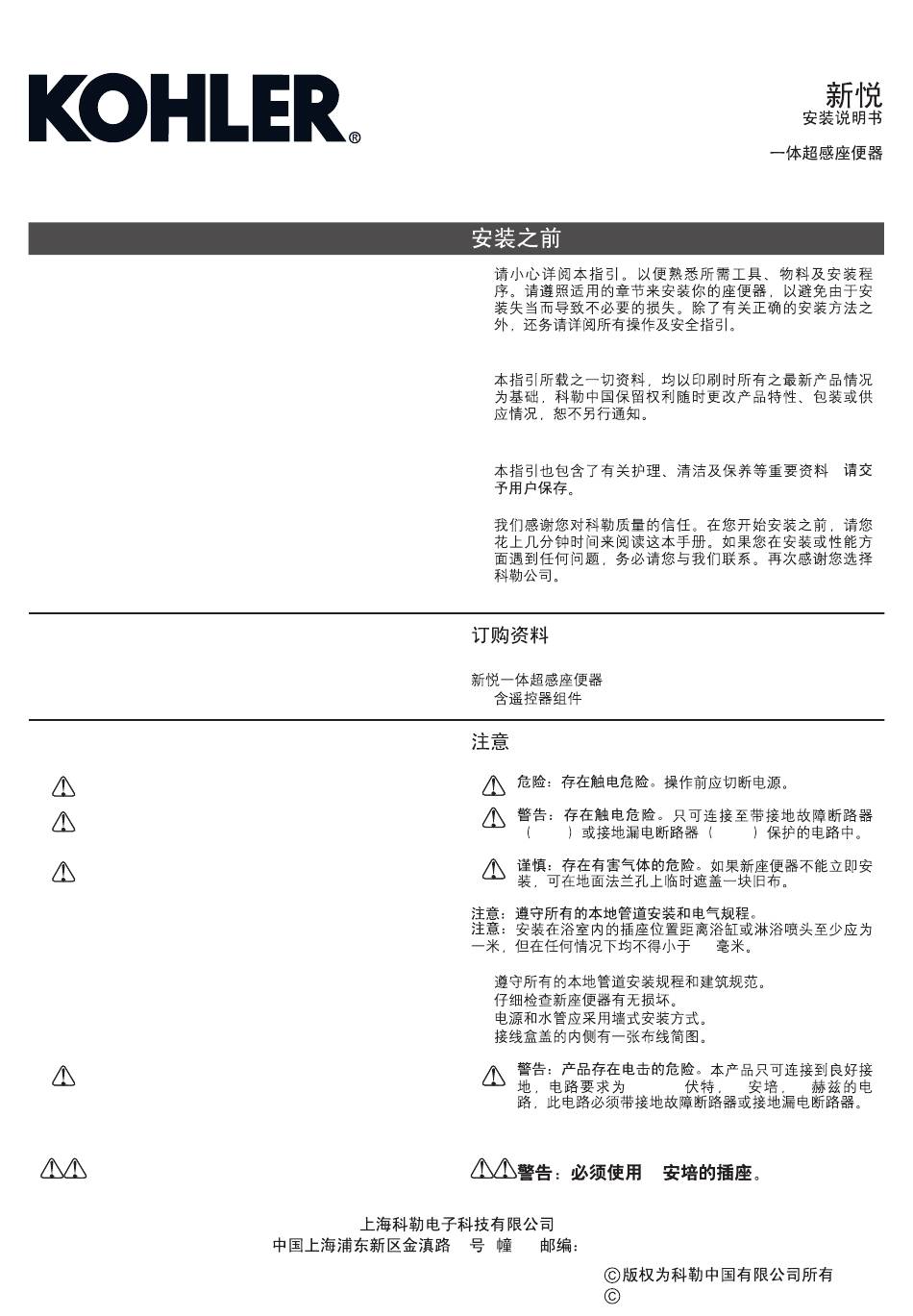

BEFORE YOU BEGIN
BEFORE YOU BEGIN
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information -
consumer
.
· We appreciate your commitment to Kohler quality. Please
take a few minutes to review this manual before you start
Installation. If you encounter any installation or
performance problems, please don t hesitate to contact us.
Thanks again for choosing Kohler Company.
ORDERING INFORMATION
Integrated Toilet .........................................................K-4026T
Includes Remote Controller Assy .........................1106433
NOTES
DANGER: Risk of electric shock.
before servicing.
WARNING: Risk of electric shock.
circuits protected by Ground-Fault Circuit-Interrupters
(GFCI s) or Earth-Leakage Circuit-Breakers (ELCB s).
'
CAUTION: Risk of hazardous gases.
is not installed immediately, temporarily place a rag in
the floor flange opening.
NOTICE: Follow all local plumbing and electrical codes.
NOTICE:
Receptacles installed in bathrooms to be located at
least 1 meter from a bathtub or shower if practical, but in no
case less than 500 mm.
·
Observe all local plumbing and building codes.
·
Carefully inspect the new toilet for damage.
·
Water and electrical supplies may be wall mounted.
·
There is a wiring schematic on inside of the of the junction
box cover.
WARNING: Risk of electric shock for hardwire
installations/through-floor electrical supply:
Connect only to properly-grounded, dedicated
220~240V, 16A, 50Hz circuit protected by a Class A
Ground-Fault Circuit-Interrupter (GFCI) or Earth-
Leakage Circuit-Breaker (ELCB).
WARNING: Must use 16A receptacle.
1144585-T01-A
please leave instructions for the
'
Disconnect power
Connect only to
If a new toilet
·
·
·
·
........................................................1106433
GFCI
'
·
·
·
·
18 E
-1-
INSTALLATION INSTRUCTIONS
INTEGRATED TOILET
...................................................
ELCB
500
220~240
16
16
201206
Copyright Kohler China Ltd., 2010
K-4026T
-
K-4026T
50
, 2010
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kohler K-4026T
Summary of Contents for Kohler K-4026T
- Page 1 These instructions contain important care, cleaning, and warranty information - please leave instructions for the consumer · We appreciate your commitment to Kohler quality. Please · take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don t hesitate to contact us.
- Page 2 10mm. Screw: Recommend using M6 screw to match the plastic anchor. ROUGHING-IN Reference Value Unit: mm Finished Wall Front of Bowl Finished Floor Bottom View of Outlet Fig.#1 Kohler reserves the right to change marked dimensions without prior notice. 1144585-T01-A...
- Page 3 SPECIFICATIONS Flushing Volume 4.8L Minimum Distance from Hole to Wall 305mm 0.7kgf/cm (Dynamic Pressure) ~ 7.5 kgf/cm Water Supply Pressure (0.07MPa. (Dynamic Pressure) ~ 0.74MPa.) Electrical Power 220~240V 50Hz 1800W Power Cord Length About 1.5m Outline Dimension of Product 670mm x 424mm x 528mm Product Weight About 46Kg Operation Environment...
- Page 4 PREPARATIONS BEFORE INSTALLATION PREPARATIONS BEFORE INSTALLATION Hold the rim of the vitreous shell and take out the toilet. Warning: Risk of personal injury and product damage! Please do not hold the rim of the bidet seat when lifting the toilet. As the toilet is heavy, please seek for help if necessary.
- Page 5 Take out the tank. a. Place an 800mm x 600mm cushion on the floor and 800mm x 600mm then put the whole toilet on it. Note: Operate with care to avoid scratching the surface of the vitreous shell. b. Take out the tank assembly from the vitreous shell and put it on the floor.
- Page 6 INSTALLATION A. To Remove Existing Toilet Turn off the water supply. Flush the toilet, and use a sponge to remove the remaining water from the tank and bowl. Disconnect the supply shut-off valve (if present), and remove the old tank and bowl. Remove old gasket from the floor and closet flange with a putty knife.
- Page 7 The expansion of cement due to a rise in temperature may make the toilet crack or cause damage. Kohler is not responsible for any damage caused by Fig.#9 installation with the use of cement.
- Page 8 E. Install the Wax Ring Place the wax ring in the putty ring located on the tank. Fig.#10 F. Position the Tank Mark the centerline on the floor. Align the tank over the floor flange. Lower the tank onto the floor flange. The T-bolts should align with the mounting slots in the base of the tank.
- Page 9 G. Secure the Tank CAUTION: Risk of product Washer damage. Do not overtighten the mounting nuts. Do not T-Bolt shorten the T-bolts. Place a washer on each T-bolt. Thread a nut onto each T-bolt. Base of Tank Unit Hand tighten the nuts. Note: In case there is no floor flange, please fix the tank with the expansion...
- Page 10 Remove cap on Tee Connector of flexible hose. Fig.#15 K. Install Gasket and Collar Place the wiring harness plug, level switch wire, and refill tube on the floor so they extend out the rear access opening. Tape them to the floor so they will not be pinched or damaged.
- Page 11 L. Install the Vitreous Shell Vitreous WARNING: Risk of personal injury. The vitreous shell weighs 35 kg. Use proper lifting technique when handling the vitreous shell. CAUTION: Risk of product damage. Do not set the shell down hard. Gently lift and move the shell if it is not placed Collar correctly.
- Page 12 N. Check Operation NOTE: The flushing mechanism works best if it is quickly tapped, not held down for an extended period of time. Push to Flush. NOTE: There is an approximate eight- second delay between the flush and the tank refilling. Flush the toilet and check for proper operation.
- Page 13 INSTALLATION OF REMOTE CONTROLLER HOLDER INSTALLATION OF REMOTE CONTROLLER HOLDER NOTE: If the wall for installation is made of special material (such as wood board, density board and etc.), suitable fixing methods shall be adopted. NOTE: The place to install the remote controller shall not be easily splashed by water.
- Page 14 PREPARATIONS BEFORE THE FIRST USE PREPARATIONS BEFORE THE FIRST USE Open the shutoff valve Fig.#24 Confirm that the battery has been correctly installed in the "remote controller". Confirm that there is no obstacle in front of the product. Wait for the host to finish the self-checking. During that time, it is normal to hear rotating sound of the motor and bicker.
- Page 15 TROUBLESHOOTING This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale Distributor. SYMPTOMS PROBABLE CAUSES RECORRECTIVE ACTION 1. The toilet does not A.
- Page 16 13. Even though the A. The seat sensor may not be able to detect you A. Change the way you sit. seat is occupied, depending on the way you are sitting. the spray function does not work. 14. The hot blower A.
- Page 17 POWER 1144585-T01-A -17-...
- Page 18 CAUTION: Don t use any cement while installing the toilet. Heat expansion of the toilet may damage the feet of the toilet. Kohler will not be responsible for any damage because of using cement. WARNING: Risk of product damage. Do not throw into the toilet what is easy to block it, such as newspaper, paper pilch, sanitary towel.
