Vitreous china 4.2l s-trap two-piece toilet 305mm/400mm

Advertisement

Quick Links

·

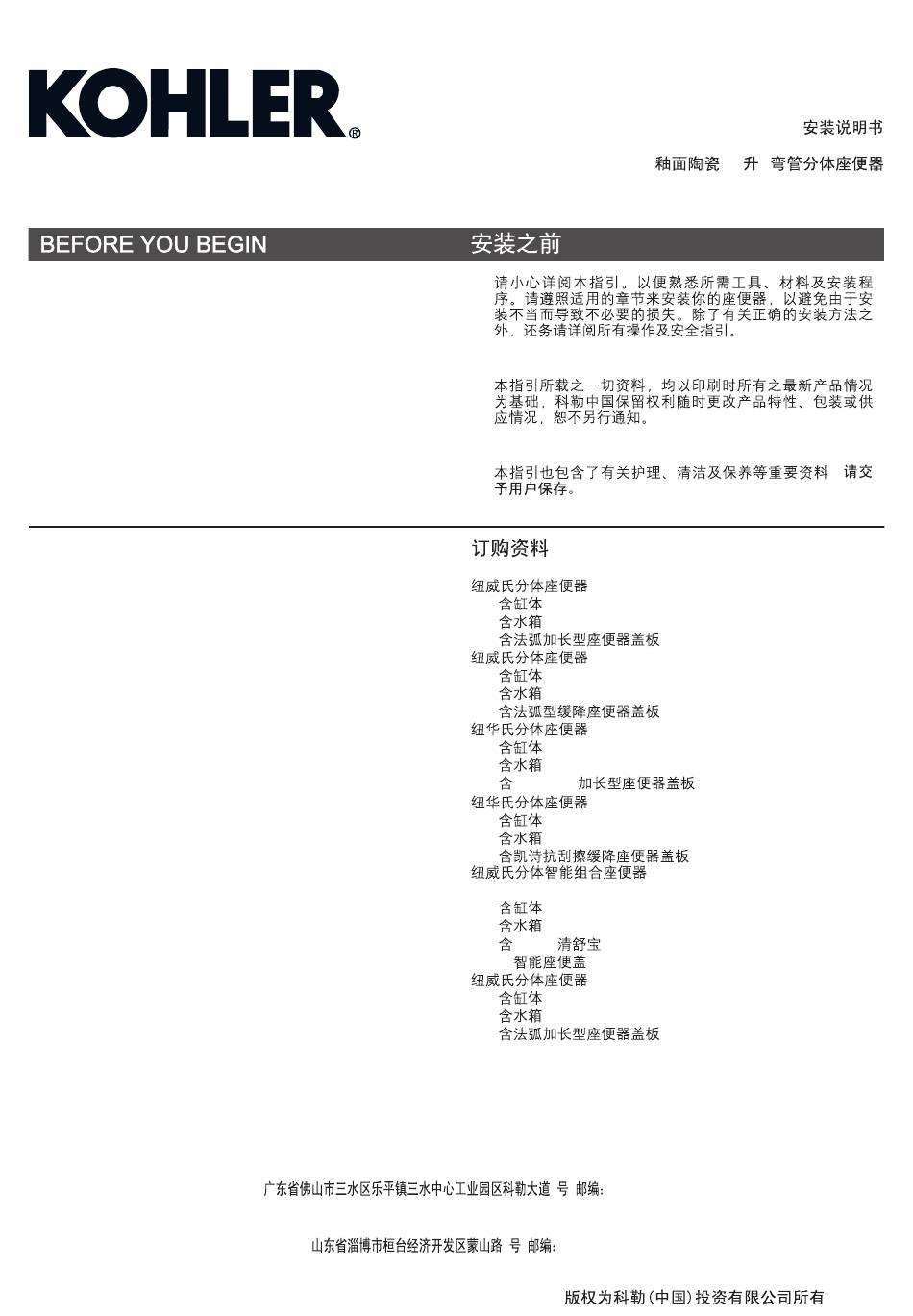

Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information -
please leave instructions for the
consumer
.
ORDERING INFORMATION
NEW WELLWORTH Two-Piece Toilet 305mm
®
Includes Bowl ....................................................K-3982T-M
Includes Tank ........................................................K-3984T
Includes French Curve Toilet Seat .......................K-4653T
®
NEW WELLWORTH Two-Piece Toilet 305mm
®
Includes Bowl ....................................................K-3982T-M
Includes Tank ........................................................K-3984T
Includes French Curve Quiet-close Toilet Seat.....K-4713T
®
NEW WELLWORTH Two-Piece Toilet 305mm
®
Includes Bowl ....................................................K-3982T-M
Includes Tank ........................................................K-3984T
Includes BREVIA Toilet Seat ..............................K-4664T
TM
NEW WELLWORTH Two-Piece Toilet 305mm
®
Includes Bowl ....................................................K-3982T-M
Includes Tank ........................................................K-3984T
Includes CACHET Quiet-close Toilet Seat ......K-4636T-U
TM
New Wellworth Two-piece Integrated Toilet
305mm .......................................................................K-25343T
Includes Bowl ....................................................K-3982T-M
Includes Tank ........................................................K-3984T
3
Includes C -108 Toilet Seat with
Bidet Functionality ...................................K-4772T
NEW WELLWORTH Two-Piece Toilet 400mm
®
Includes Bowl ....................................................K-4066T-M
Includes Tank ........................................................K-3984T
Includes French Curve Toilet Seat .......................K-4653T
®
No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137
8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA POST CODE: 256410
1191811-T01-D
VITREOUS CHINA 4.2L S-TRAP TWO-PIECE TOILET
305mm K-3998T-W/ K-3998T-CW/K-5343T/K-5343T-S/K-25343T
400mm K-4065T/K-4065T-C/K-5375T/K-5375T-S/K-25375T
·
·
·
.......K-3998T-W
....K-3998T-CW
...........K-5343T
BREVIA
........K-5343T-S
305mm ......................................................................K-25343T
C -108
...........K-4065T
8
©
-1-
NEW WELLWORTH
INSTALLATION INSTRUCTIONS
305mm.......................................K-3998T-W
...............................................................K-3982T-M
...................................................................K-3984T
......................................K-4653T
305mm ....................................K-3998T-CW
...............................................................K-3982T-M
...................................................................K-3984T
......................................K-4713T
305mm............................................K-5343T
...............................................................K-3982T-M
...................................................................K-3984T
TM
305mm ........................................K-5343T-S
...............................................................K-3982T-M
...................................................................K-3984T
...........................K-4636T-U
...............................................................K-3982T-M
...................................................................K-3984T
3
........................................................K-4772T
400mm............................................K-4065T
...............................................................K-4066T-M
...................................................................K-3984T
......................................K-4653T
2
528137
256410
Copyright Kohler China Investment Co., Ltd. 2016
©
4.2 S
-
.............................K-4664T
2016
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the NEW WELLWORTH K-5343T and is the answer not in the manual?

Questions and answers

Summary of Contents for Kohler NEW WELLWORTH K-5343T

  • Page 1 Includes French Curve Toilet Seat .......K-4653T ........K-4653T ® No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137 528137 8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA POST CODE: 256410 256410 ©...
  • Page 2 NEW WELLWORTH Two-Piece Toilet 400mm ..K-4065T-C 400mm........K-4065T-C ® ...............K-4066T-M Includes Bowl ............K-4066T-M Includes Tank ............K-3984T ..............K-3984T Includes French Curve Quiet-close Toilet Seat..K-4713T ........K-4713T ® NEW WELLWORTH Two-Piece Toilet 400mm ...K-5375T 400mm ...........K-5375T ® ...............K-4066T-M Includes Bowl ............K-4066T-M Includes Tank ............K-3984T ..............K-3984T Includes BREVIA Toilet Seat ......K-4664T BREVIA...
  • Page 3 Reference Value Unit: mm K-3998T-W/ K-3998T-CW/ K-5343T/K-5343T-S/K-25343T Finished Wall Front of Bowl Supply K-4065T/K-4065T-C/K-5375T/K-5375T-S/K-25375T Finished Wall Front of Bowl Supply Kohler reserves the right to change marked dimensions without prior notice. 1191811-T01-D...
  • Page 4 INSTALLATION INSTALLATION Install or relocate the supply and outlet as necessary to comform to the roughing-in dimensions. Supply Important: Toilet must have 305mm/400mm minimum roughing-in to install properly. 305mm/400mm If replacing a toilet, remove the old wax. Insert new T-bolts. Install the wax seal.
  • Page 5 Apply weight evenly. Install floor mounting kit as shown in the figure. Do not overtighten. Do not move after placement! Watertight seal may be broken! This side up. Cut excess. Fix bolt cap. 6 mm 6 mm Cut excess. Install the tank Connect supply and turn on the water.
  • Page 6 Flush several times and check for leaks. Fill float with ballast Test flush the toilet. Periodically check all connections for leaks for several days following installation. Set the tank cover in place on the tank. Minor adjustment of water level Snap Move the snap along "OPEN"...
  • Page 7 Fasten the snap along "CLOSE" direction. CLOSE SCALE Screw Float adjustment instructions: Make sure the height of surface E is 2-4mm lower than surface G. G 2- Float Water Cup Install the tank lid and the seat. Use the supplied 1/4"-20 seat bolts and washers.
  • Page 8 A. Partially close the water supply shut-off valve if the water pressure to the toilet is too tank is filling. high. Check the toilet performance following any such adjustment. B. Remove dirt or obstructions from the valve head. Flush the lines. IMPORTANT: Use only genuine Kohler parts as shown to avoid property damage. 1191811-T01-D...
  • Page 9 CAUTION: Don t use any cement while installing the toilet. Heat expansion of the toilet may damage the feet of the toilet. Kohler will not be responsible for any damage because of using cement. WARNING: Risk of product damage. Do not throw into the toilet what is easy to block it, such as newspaper, paper pilch, sanitary towel.
