Beurer medical GL 50 Manual

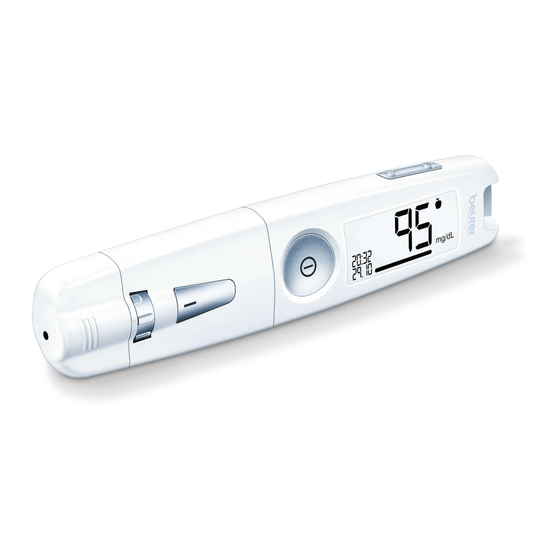

3-in-1 blood glucose monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GL 50
EN
3-IN-1 BLOOD GLUCOSE MONITOR
Step by step

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GL 50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Beurer medical GL 50

Summary of Contents for Beurer medical GL 50

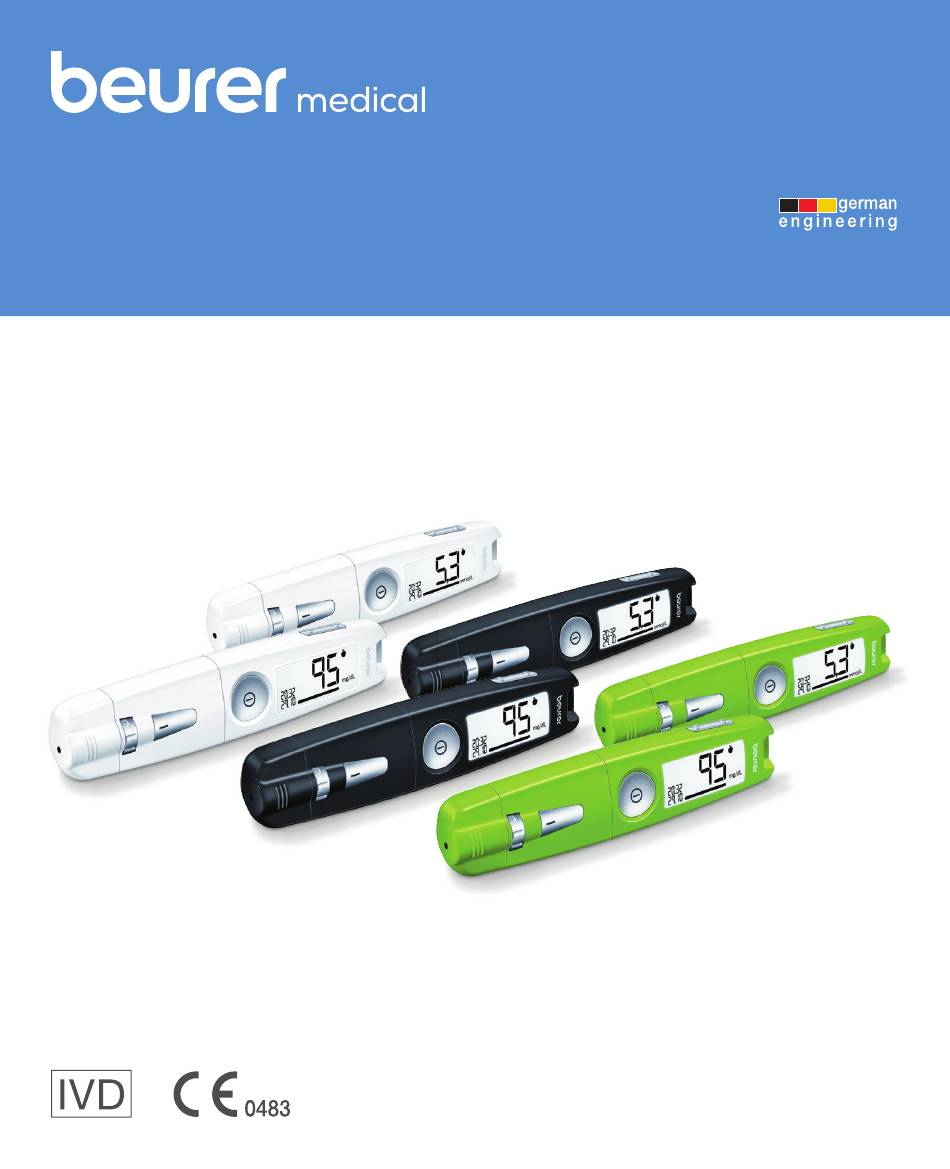

  • Page 1 GL 50 3-IN-1 BLOOD GLUCOSE MONITOR Step by step...

  • Page 2: Table Of Contents

    Contents 1 Getting to know your device ....................3 1.1 Delivery scope, replacements and accessories ..............4 1.2 Replacements ......................... 5 1.3 Functions of the device ......................5 1.4 Signs and symbols ......................... 6 2 Warnings and safety notes ....................7 3 Description of device and accessories ................

  • Page 3: Getting To Know Your Device

    ettinG to know your device Dear Customer, Thank you for choosing a product from our range. Our name stands for high-quality, thoroughly tested products for applications in the areas of heat, weight, blood pressure, blood glucose, body temperature, pulse, gentle therapy, massage and indoor air quality. Please read these instructions carefully and keep them for later use.

  • Page 4: Delivery Scope, Replacements And Accessories

    1.1 Delivery scope, replacements and accessories Check that the set packaging has not been tampered with and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed.

  • Page 5: Replacements

    1.2 Replacements You can also obtain test strips, control solution and lancets without a prescription. Item 50 test strips REF 464.15 50 test strips, individually film packed REF 464.17 100 test strips REF 464.13 Control solution LEVEL 3 and 4 REF 464.16 100 33G soft-touch lancets REF 457.24...

  • Page 6: Signs And Symbols

    1.4 Signs and symbols The symbols on the packaging and type plate of the monitor and accessories represent the following: In vitro diagnostic device Manufacturer Serial number Observe the instructions for use Green dot (Der Grüne Punkt): Temperature restrictions German dual waste collection +2°C to +30°C system Not for reuse/for single use only...

  • Page 7: Warnings And Safety Notes

    arninGs and safety notes Risk of infection All components of the blood glucose monitor and its accessories may come into contact with human blood and are therefore a possible source of infection. Warning • Blood glucose values are displayed in mg/dL or mmol/L. You risk damaging your health if you measure your blood glucose value using a unit of measurement with which you are not familiar, misinterpret the values and consequently take incorrect measures.
  • Page 8 • A haematocrit value (proportion of red blood cells) between 30% and 55% has no significant influence on the measurement results. • A very high or low haematocrit value (proportion of red blood cells) may lead to incorrect measurements. In the event of a very high haematocrit value (above 55%), the displayed blood glucose value may be too low;...
  • Page 9 • Risk of explosion! Do not throw batteries into a fire. • Do not charge or short-circuit batteries. • If the device is not to be used for a relatively long period, take the batteries out of the battery compartment. •...

  • Page 10: Description Of Device And Accessories

    escription of device and accessories 3.1 Blood glucose monitor Monitor overview 1 Lancing device 2 Plug-in USB 3 Monitor Front Rear 1 On/Off button 1 Battery cover 2 Display 3 Rocker switch 4 Test strip slot 3.2 Lancing device and lancet needles 1 Cap 2 Protective lancet disc 3 Sterile lancet needle...

  • Page 11: Usb Cover

    3.3 USB cover If you would like to use the blood glucose monitor without the integrated lancing device, you can use the supplied USB cover in place of the lancing device. 3.4 Display symbols 1 Speaker symbol 2 Temperature symbol 3 Replace battery symbol 4 Time 5 Date...

  • Page 12: Test Strips

    3.5 test strips Front Rear 1 Gap for blood input You can identify the rear by the contact tracks. 2 Grip area 3 Contacts Insert the test strip into the device so that the contacts are pointing inside the slot. Make sure that the front of the test strip is facing you.

  • Page 13: Initial Use And Basic Settings

    • Discontinue use of the test strips if one of the two expiry dates ( / ) has passed. 18 M • You can touch any part of the test strip with clean, dry hands. • Use the test strip for measurement immediately after removing it from the box/film packaging. •...

  • Page 14: Adjusting Basic Settings

    Note • If the replace battery symbol appears, it means that the batteries are almost empty. Replace both batteries as soon as possible. • If “ ” appears on the display, the battery power level is so low that no more measurements are possible.

  • Page 15: Taking Measurements

    akinG measurements Warning • If the protective disc on a lancet needle has already been removed, do not use the lancet needle. • If you drop the lancing device with a lancet needle inserted, carefully pick it up and dispose of the lancet.

  • Page 16: Preparing The Lancing Device For Taking A Sample

    5.2 Preparing the lancing device for taking a sample Remove the cap Hold the monitor with the lancing device cover in one hand. With your other hand, remove the cap from the monitor’s lancing device. Insert the lancet needle Insert a sterile lancet needle into the lancing device. Note •...

  • Page 17: Taking A Blood Sample And Measuring The Glucose Level

    Tension the lancing device Pull the slider back in the direction of the arrow (on the image: to the right) until it stops and then release. The slider automatically springs back into position. The lancing device is now tensioned. 5.3 Taking a blood sample and measuring the glucose level Warning •...
  • Page 18 The device switches on automatically The device switches on automatically and briefly shows all information indicators on the display. The device is ready for use as soon as the test strip symbol and the flashing blood droplet symbol are displayed. Important If parts of the display are missing, stop using the device and immediately contact customer services.

  • Page 19: Reading The Result And Labelling Measurements

    Applying blood to the test strip Turn the monitor 180°. Hold the blood input gap (at the tip of the test strip) to the drops of blood until the gap is completely filled and the monitor in the display starts counting backwards. Do not press the penetration area (fingertip or other part of the body) to the test strip.

  • Page 20: Post-Processing And Disposal

    Labelling the measurement You have the following options for labelling measured values: Before meal After meal General labelling (e.g. after exercising). Labelling measured values enables you, your GP or your diabetes consultant to better monitor your blood glucose values. For example, you can display the average values of all measurements taken before a meal.

  • Page 21: Evaluating Measured Blood Glucose Values

    Affix protective disc to needle Place the retained protective disc flat on a hard surface. Stick the tip of the needle into the protective disc (image 1) so the needle is covered (image 2). Image 1 Image 2 Remove and dispose of lancet needle Press the trigger again so that you can grip the shaft.
  • Page 22 Blood glucose values The following tables list blood glucose values based on the STANDARDS OF MEDICAL CARE IN DIABETES 2016 from the ADA (American Diabetes Association). Time of the blood glucose Normal blood Increased risk of If you have measurement glucose values diabetes (prediabetes)* diabetes On an empty stomach...

  • Page 23: Functional Check Using Control Solution

    Display Blood glucose Action High blood glucose level If this high value persists 2 hours on an empty stomach, after your last meal, this may above 100 mg/dL indicate hyperglycaemia (high (5.6 mmol/L) blood glucose). Seek medical attention to coordinate any 2 hours after a meal measures, if applicable.
  • Page 24 Insert test strip Hold the monitor so that the display is facing you. Insert a test strip, contacts-first into the slot on the monitor. Make sure that the front of the test strip is facing you (see “3.4 Test strips” on page 12).
  • Page 25 Expected results At room temperature, the measurements from the test using the control solution should be within the range printed on the test strip box or on the information sheet included with the test strips in film packaging in approx. 95% of all tests. Warning The specified value range (see test strip box or information sheet with the test strips in film packaging) only applies for the control solution.

  • Page 26: Measurement Memory

    Warning If you repeatedly obtain measured values outside the specified range when using control solution, discontinue using the system to measure your blood glucose level. Contact Customer Services. easurement memory For each measurement, your blood glucose value is automatically saved with the date and time unless “...

  • Page 27: Displaying Average Blood Glucose Values

    Each time you press the “–” rocker switch again, first the memory space number will be displayed and then the relevant measured value. You can display a maximum of 480 previous measurements. You can cancel the process at any time. To do so, press the On/Off button or wait until the device switches itself off automatically after 2 minutes.
  • Page 28 Press “+” repeatedly to display the average value of all measured values for 14, 30 and 90 days. After the average of all measured values for 90 days is displayed • the 7-day average for values measured “before meals” • the symbol, •...

  • Page 29: Evaluating Measured Values On A Pc

    After displaying the average value for 90 days “after meals” • the average for the last 7 days of values labelled as “general” • the symbol, • the unit of measurement for blood glucose values and • “ “ are shown on the display. Press “+”...

  • Page 30: Storing, Maintaining And Disinfecting The Device

    Evaluating measured values on the PC The monitor must be switched off. Insert the monitor’s USB connector into a free USB port on your PC. In the event that the measuring device is not recognised, please try using another active USB port. “...

  • Page 31: Troubleshooting

    Note The monitor is made from precision components. The accuracy of the measurements and service life of the device depend on its careful handling: • Protect the device from impact and do not drop it. • Protect the device from damaging factors such as moisture, dirt, dust, blood, control solution or water, marked temperature fluctuations, direct sunlight and extreme cold.
  • Page 32 Cause Solution Err 002 Insufficient amount of blood on the Repeat the measurement using a new test strip. test strip. Err 005 System error. Remove batteries, reinsert batteries. Should the problem persist, contact Customer Services. Unknown error messages. Remove batteries, reinsert batteries. Should the problem persist, contact Customer Services.

  • Page 33: Technical Specifications

    echnical specifications Dimensions (L x W x H) 123 x 28 x 16 mm Weight 36 g (including batteries) Power supply 2 x 3 V CR 2032 button cell batteries Battery life Over 1,000 measurements Measured value memory 480 measured values with date/time Data retained when batteries are changed Average values for 7, 14, 30, 90 days...

  • Page 34: Comparison Of Measured Values With Laboratory Values

    The test is based on the measurement of an electric current that is generated by the chemical reaction of the glucose with the enzyme glucose dehydrogenase (Aspergillus oryzae) on the strip. During the reaction, a mediator transports electrons through the electrode surface and so generates a current.
  • Page 35 Results of the repeat precision measurements Sample Venous blood Grand mean value Pooled standard Pooled coefficient deviation of variation (%) mg/dL mmol/L mg/dL mmol/L mg/dL mmol/L 46.1 51.2 79.5 85.1 126.8 130.1 220.5 12.3 221.2 12.3 295.0 16.4 293.4 16.3 433.5 24.1 448.2...

  • Page 36: Usage Limits For Specialist Personnel From The Healthcare Sector

    Results of the system accuracy for combined glucose concentrations between 32.4 mg/dL (1.8 mmol/L) and 511.8 mg/dL (28.4 mmol/L). Within ±15 mg/dL or ±15% (within ±0.83 mmol/L or ±15%) 663/678 (97.8%) In comparison to the YSI, the GL50 met the EN ISO 15197:2015 standard, wherein 95% of the blood glucose values measured have to fall within the following zones: either ±15 mg/dL (±...
  • Page 37 Blood glucose Influence value 50–100 mg/dL 250-350 mg/dL (2.8–5.6 mmol/L) (13.9-19.4 mmol/L) Concentration of tested substances Acetaminophen 7 mg/dL (0.46 mmol/L) 6.6 mg/dL 4.5% (0.37 mmol/L) Ascorbic acid 4 mg/dL (0.23 mmol/L) 3.3 mg/dL 5.1% (0.18 mmol/L) Bilirubin 3.3 mg/dL (0.06 mmol/L) 0.1 mg/dL -1.4%...

  • Page 38: Warranty And Customer Service

    Blood glucose Influence value 50–100 mg/dL 250-350 mg/dL (2.8–5.6 mmol/L) (13.9-19.4 mmol/L) Concentration of tested substances L-Dopa 2 mg/dL (0.10 mmol/L) 9.3 mg/dL 7.9% (0.52 mmol/L) Maltose 278 mg/dL (7.72 mmol/L) -1.53 mg/dL -2.6% (-0.09 mmol/L) Methyldopa 4 mg/dL (0.19 mmol/L) 7.3 mg/dL 0.9% (0.41 mmol/L)
  • Page 39 Beurer guarantees the perfect functionality and completeness of this product. The worldwide warranty period is 5 years, commencing from the purchase of the new, unused product from the seller. The warranty only applies to products purchased by the buyer as a consumer and used exclusively for personal purposes in the context of domestic use.
  • Page 40 GL 50 Beurer GmbH Söflinger Straße 218 89077 Ulm, Germany • • www.beurer.com www.beurer-healthguide.com • Lancet needles / Lanzetten / lancettes / lancetas / lancette: Emergo Europe SteriLance Medical (Suzhou) Inc. No. 168, PuTuoShan Road, Prinsessegracht 20, New District, Suzhou 215153, China...
