IMPORTANT

If you are having difficulties with the installation of this

product, please call out Tech Support line at 1-800-253-

TECH. Before doing so, looks over the instructions a

second time, and make sure the installation was

performed exactly as the instructions are stated. Please

have the vehicle apart and ready to perform

troubleshooting steps before calling.

REV. 10/23/2018

Need help?

Do you have a question about the TE-FDPL and is the answer not in the manual?

Page 1 IMPORTANT If you are having difficulties with the installation of this product, please call out Tech Support line at 1-800-253- TECH. Before doing so, looks over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.
Page 2 TE-FDPL Manual...
Page 3: Box Contents

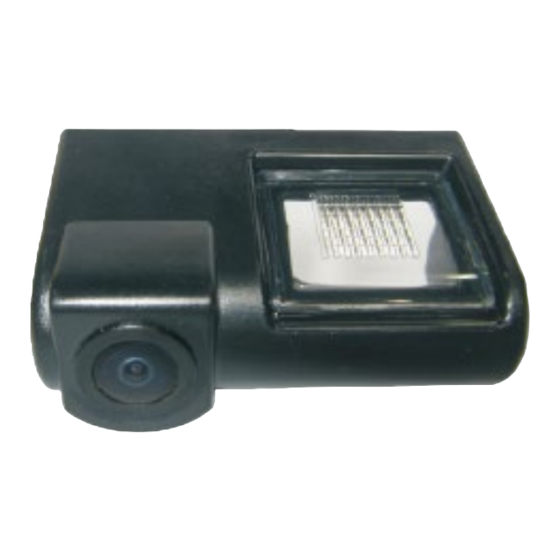

1. Box Contents Wiring Camera 2. Applications 2010-2016 Ford Transit Connect 3. Installation 4. Specifications Sensor CMOS ¼ sensor Resolution 420 TV Lines Field of view Diagonal 170º Illumination .05 Lux IP rating IP68 Parking Lines Defeatable Extension cable 23’ TV system NTSC Working Temp...
Page 4 NOTES...
Page 5 NOTES...
Page 6 1.) Remove the panel from inside the back door of the vehicle, there are 4 push pins holding the panel on the door, remove the 4 pins and remove the panel. 2.) Push out the light over the license plate. It is being held in by two side clips.
Page 7 6.) Take the new hood, camera and light diffuser. Make sure the properly line up the factory light fixture with the new hood. Line up the clips to match the factory hood. 7.) Run the wire from the camera through the clip area of the light fixture.
Page 8 NOTES...
