Getting Started
Remove all components from shipping box.
Loosen screws and open camera enclosure.
Remove packing material. (Save packing material for camera storage or return shipping.)
Close camera enclosure and tighten screws.
Install the Camera and Camera-Side Antenna
Attach camera enclosure and camera-side bridge antenna to mounting surface.
Pole:
□
Strap camera bracket to pole (see detail below) and attach lower two 3/8" bolts.
□
Align and slide the camera enclosure's lower keyhole slows on 3/8" bolt heads.
□
Thread two 3/8" bolts through upper holes on camera enclosure and mounting bracket.
Wall:
□
Attach camera enclosure directly to wall using lag bolts (not included).
Connect the power network cable from camera enclosure to camera-side bridge antenna.
Plug power cord into 120V AC power.
Install the Network-Side Antenna
Attach network-side bridge antenna to mounting surface.
Connect antenna to modem and power using the POE adapter as shown on other side.
Configure your Network
Your network must be configured to allow outside traffic to the camera. The most common method for this is to
use port forwarding on your network's router to forward all outside requests on port 80 to the camera's network
IP address. See other side for the camera's network IP addresses.
Call the iBEAM Support Team at 1.800.403.0688 to verify installation
FOR SMALLER DIAMETER POLES
w w w . i b e a m s y s t e m s . c o m
© 2010 iBEAM Systems, Inc.
®
iBEAM
OnSite™ Construction Camera
with Long-Range Wireless Bridge
INSTALLATION INSTRUCTIONS
and to set your camera views.

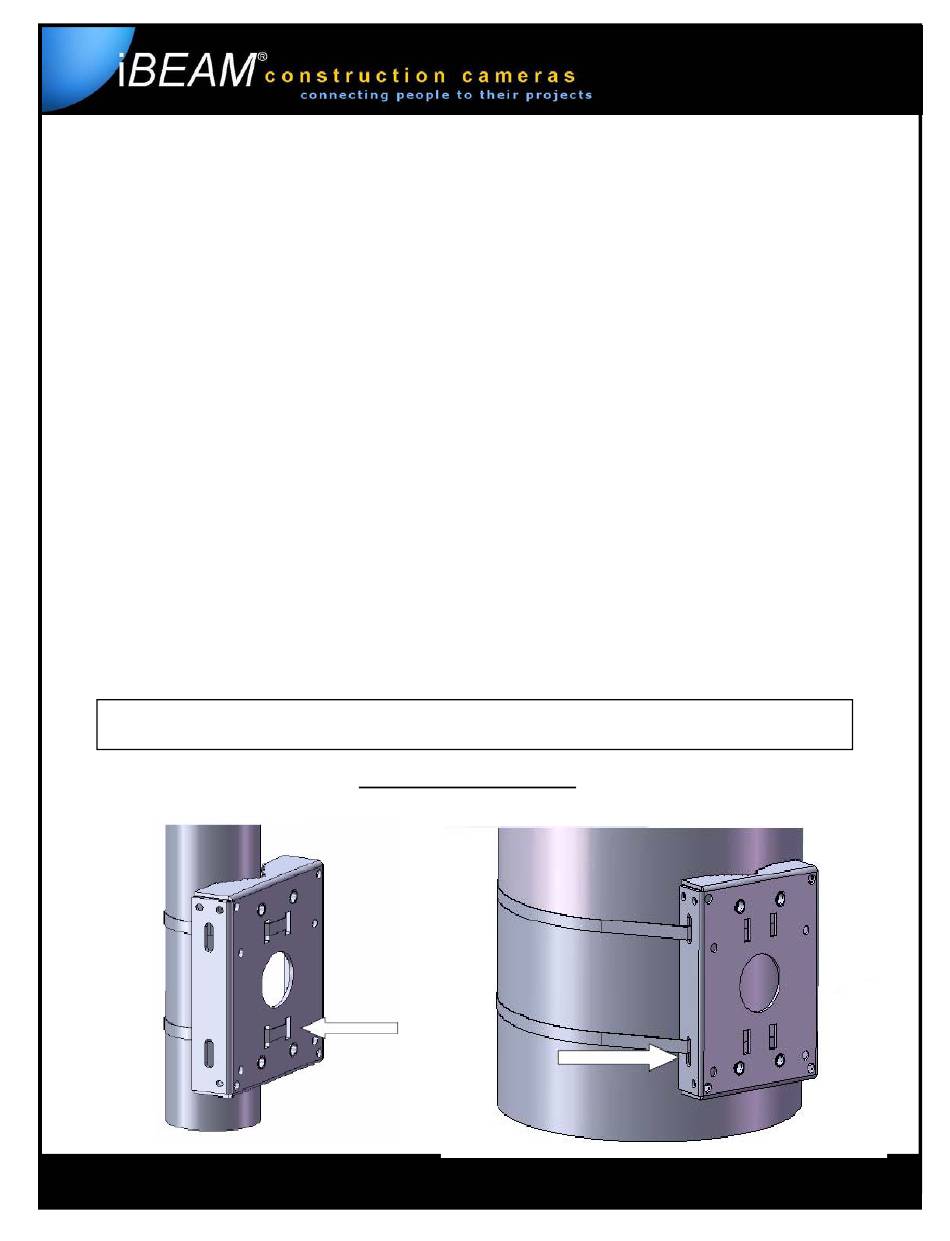

CAMERA BRACKET DETAIL
Specifications are current as of 1/1/10 and may change without notice.
FOR LARGER DIAMETER POLES
8 0 0 . 4 0 3 . 0 6 8 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for iBeam OnSite
Summary of Contents for iBeam OnSite
- Page 1 80 to the camera’s network IP address. See other side for the camera’s network IP addresses. Call the iBEAM Support Team at 1.800.403.0688 to verify installation and to set your camera views.
- Page 2 ADDRESS MODEM/ ROUTER/ SWITCH/FIREWALL Your iBEAM OnSite Construction Camera system has been programmed with the IP addresses you provided: OnSite Camera: _________________________ Wireless Bridge (camera side): ________________________ Wireless Bridge (camera side): ________________________ Your network administrator must configure your router to allow access to the camera at the IP address above.
