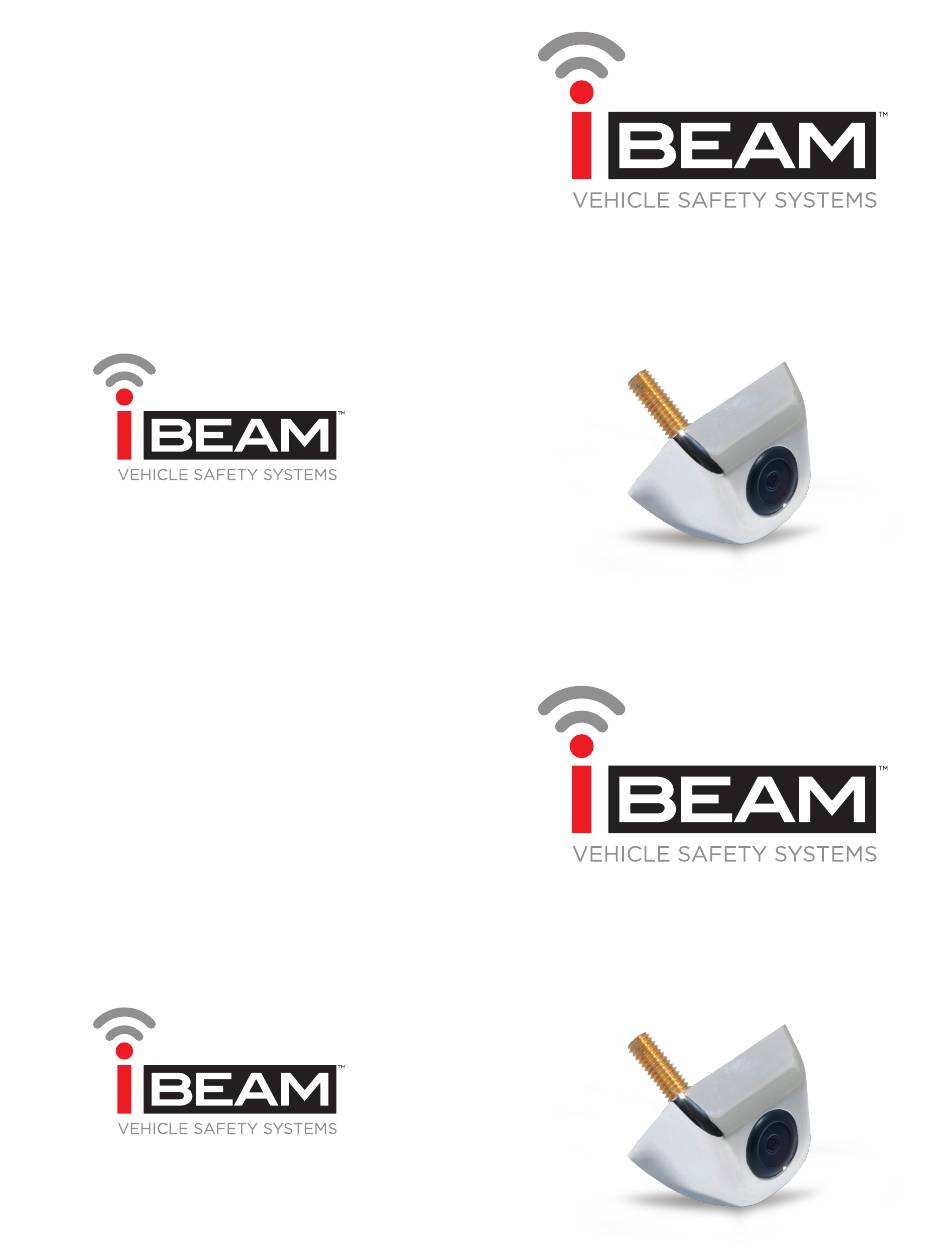

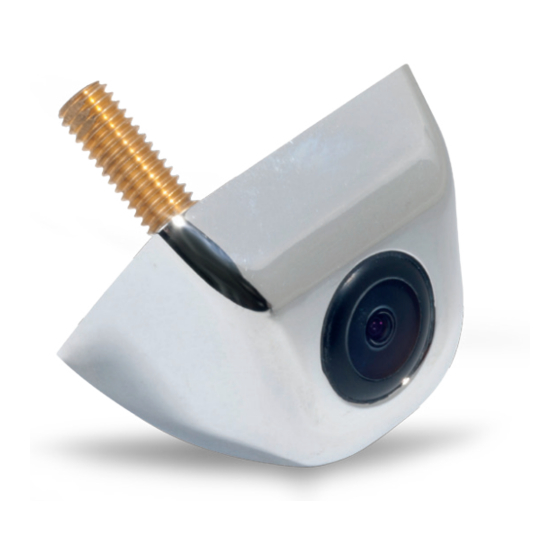

- Page 1 TE-LPC Product Manual 800.221.0932 iBeamUSA.com 460 Walker Street, Holly Hill, FL 32117 TE-LPC Product Manual 800.221.0932 iBeamUSA.com 460 Walker Street, Holly Hill, FL 32117...
- Page 2 I. Specifications II. Connection Parking line loop (White) Reverse Lights SENSOR CMOS II RED (+) BLACK (Ground) Effective Pixel 656 X 492 Red (Reverse Switch) Horizontal Sync Frequency 15625KHZ Video (in) Reverse Wire on Radio (Trigger) Reverse image loop (Blue) Vertical Sync Frequency PAL50HZ / NTSC 60HZ 1) Find a suitable location to surface mount install the camera.
